About the MeltView DART2

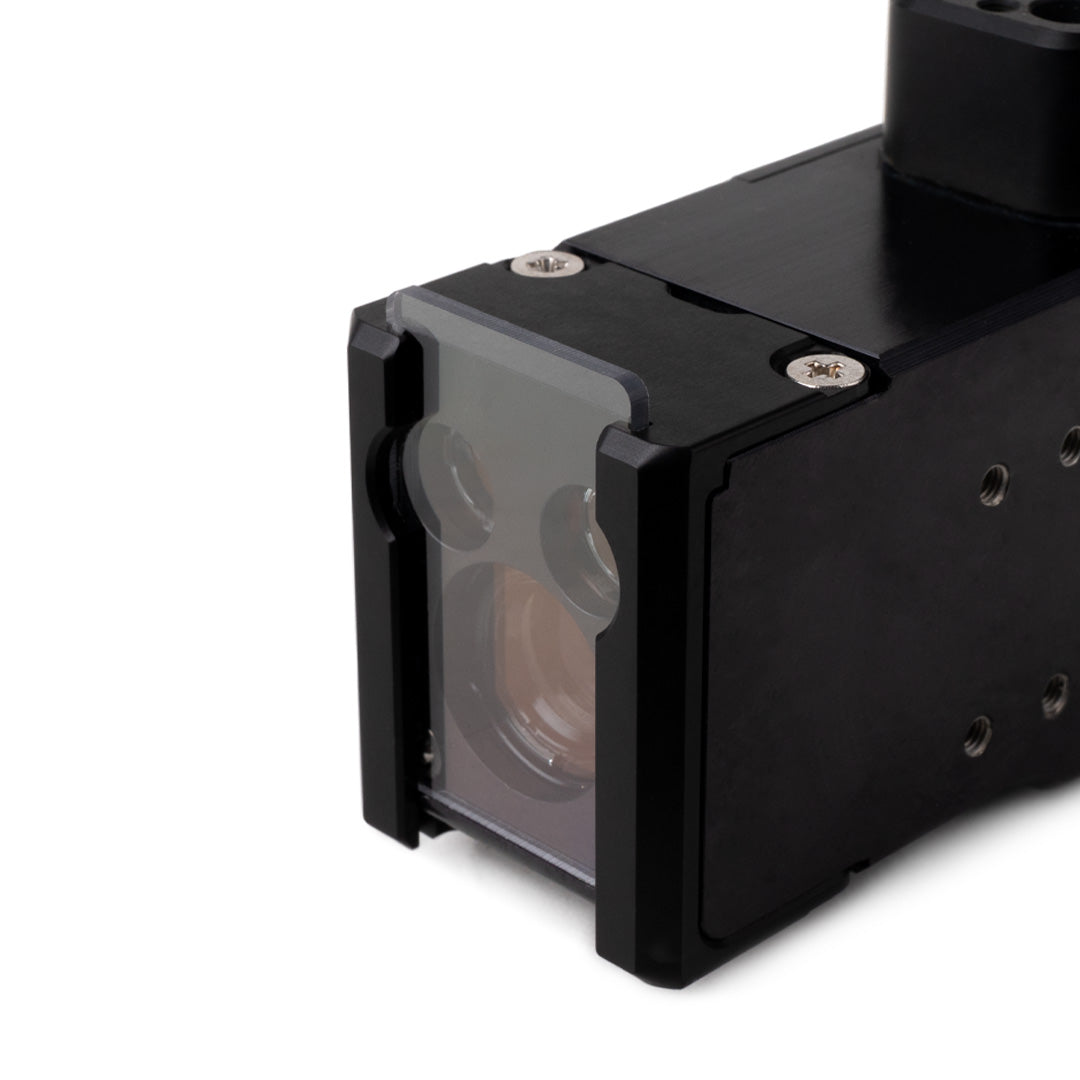

The MeltView DART2 welding camera builds on the tradition of our flagship camera with smaller size and 3x higher resolution. The MeltView DART2 is employed to monitor open-arc welding applications at working distances between 100-400 mm (4-16″) at temperatures up to 300°C (570°F).

  • Rich monochrome or color image of all open arc welding processes including GMAW, FCAW, MCAW, GTAW, PAW
  • Automatic switching between arc-on and arc-off modes
  • External focus adjustment between 100 mm (4") and 400 mm (16")
  • Integrated cooling, protection and lighting
  • Camera displays directly to monitor, no computer or software required
  • Adjustable dual crosshairs
  • Requires a MeltView camera controller
  • Optional frame grabber or DVR for recording video

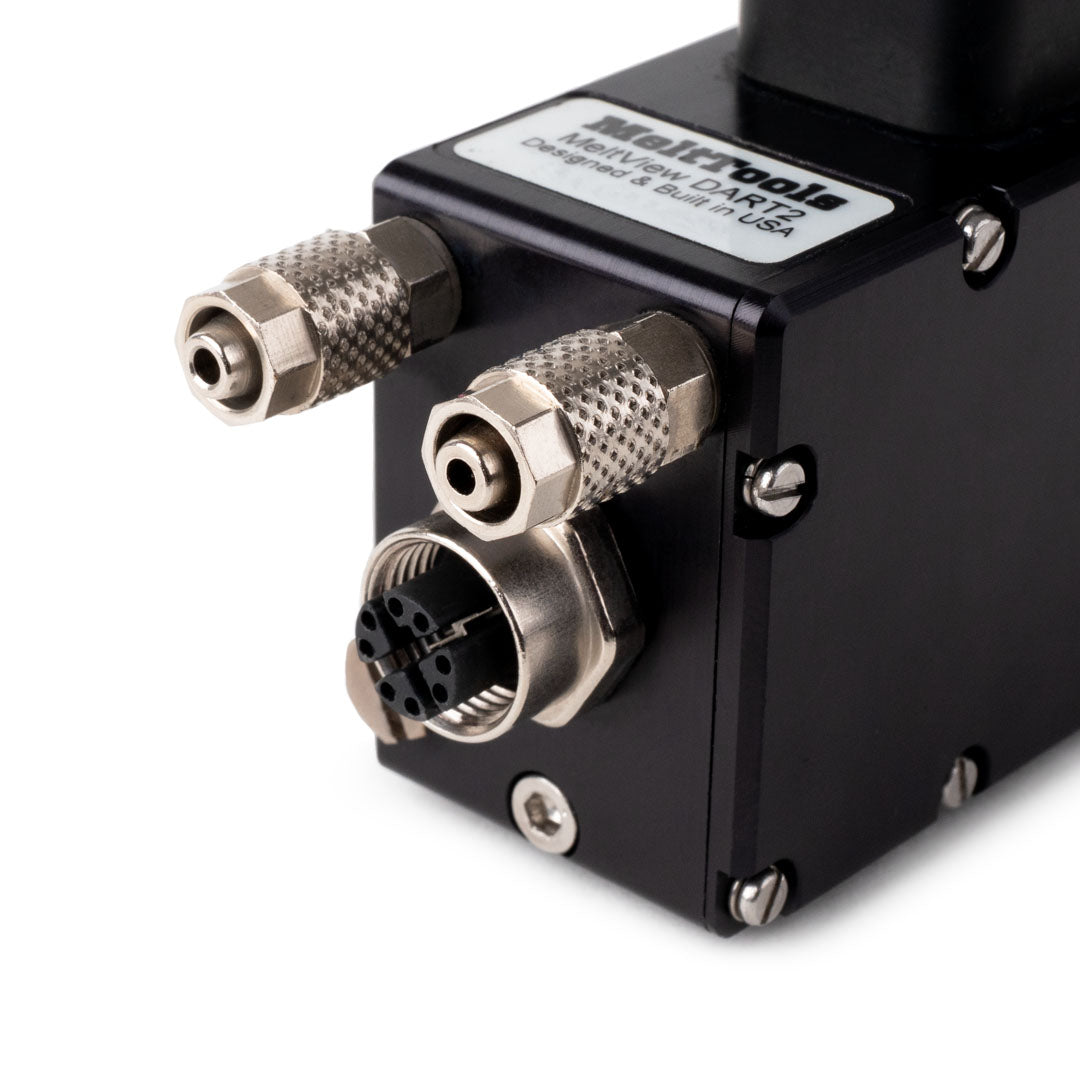

  • Standard X-coded or F-style cable; other transmission systems available (wireless, fiber, dual cable)

The MeltView DART2 welding camera is also offered in a smaller camera body. Click here to learn more.



Welding Processes

Specifications

Temperature rating without cooling

0° - 50°C (32° - 122°F)

Temperature rating with cooling

0° - 300°C (32° - 570°F )

Operating environment

85% relative humidity

Illumination

Integrated LED


1920 x 1080

Video output signal

HD - SDI

Power

24 VDC

Consumption

approx. 500 mW - configuration specific

Dimensions

32 x 45.5 x 106 mm (1.3 x 1.8 x 4.2")

Weight

200 / 280 g (0.44 / 0.62 lbs)
