15" HD-SDI monitor 1920 x 1080

Displays

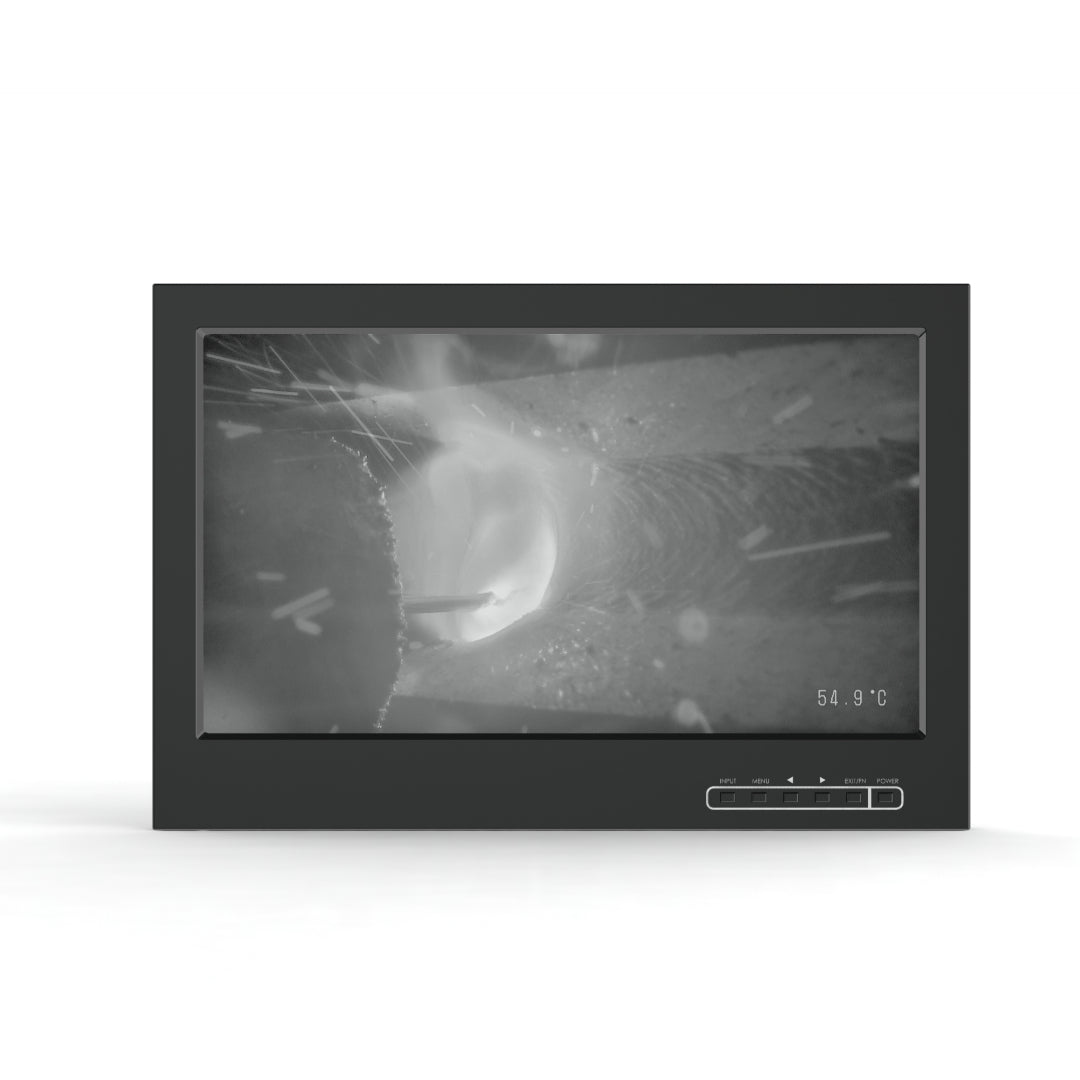

  • SDI monitor for direct display of PIXI, DART2, TERA, MIRA3 and APEX3 cameras

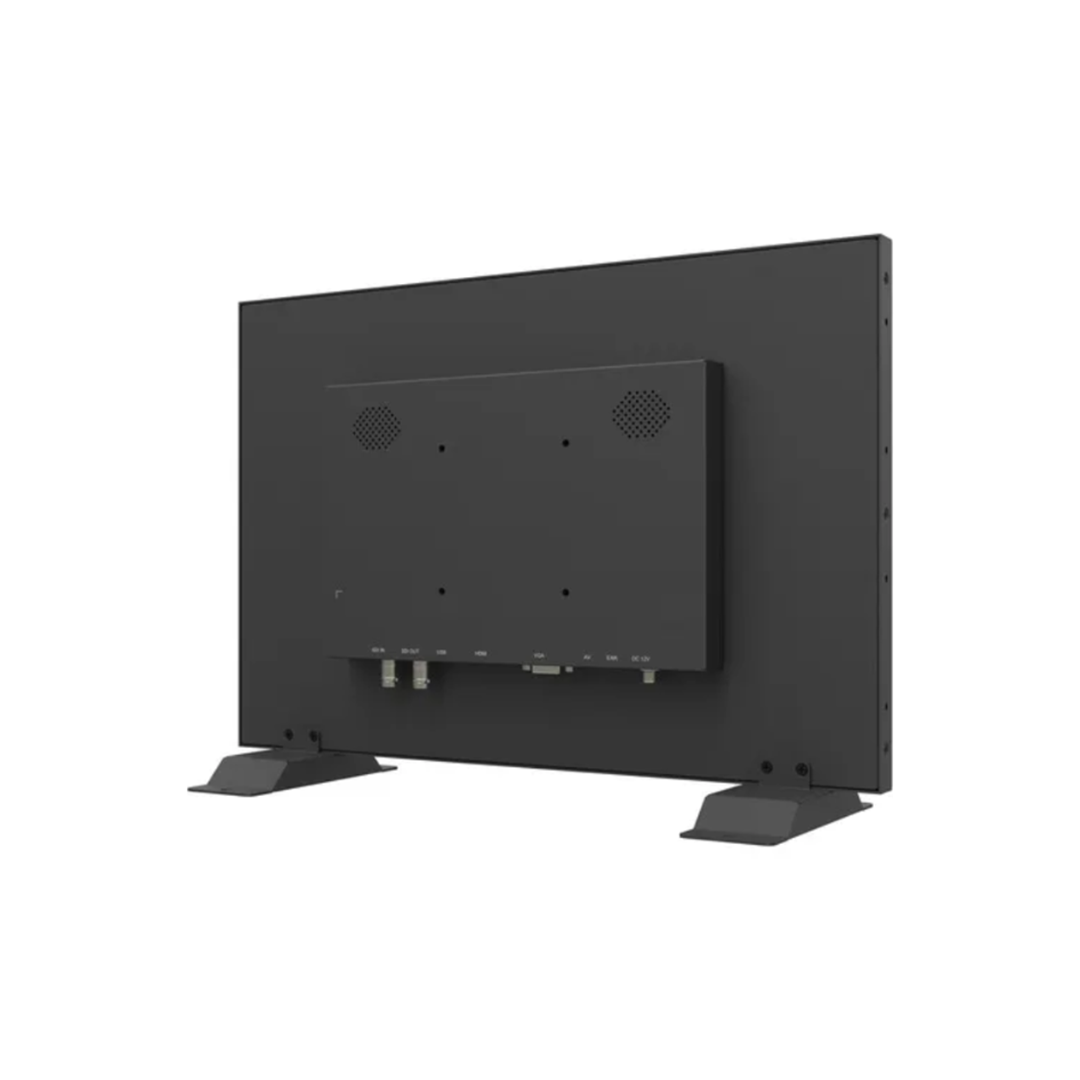

  • Back of SDI monitor for direct display of PIXI, DART2, TERA, MIRA3 and APEX3 cameras

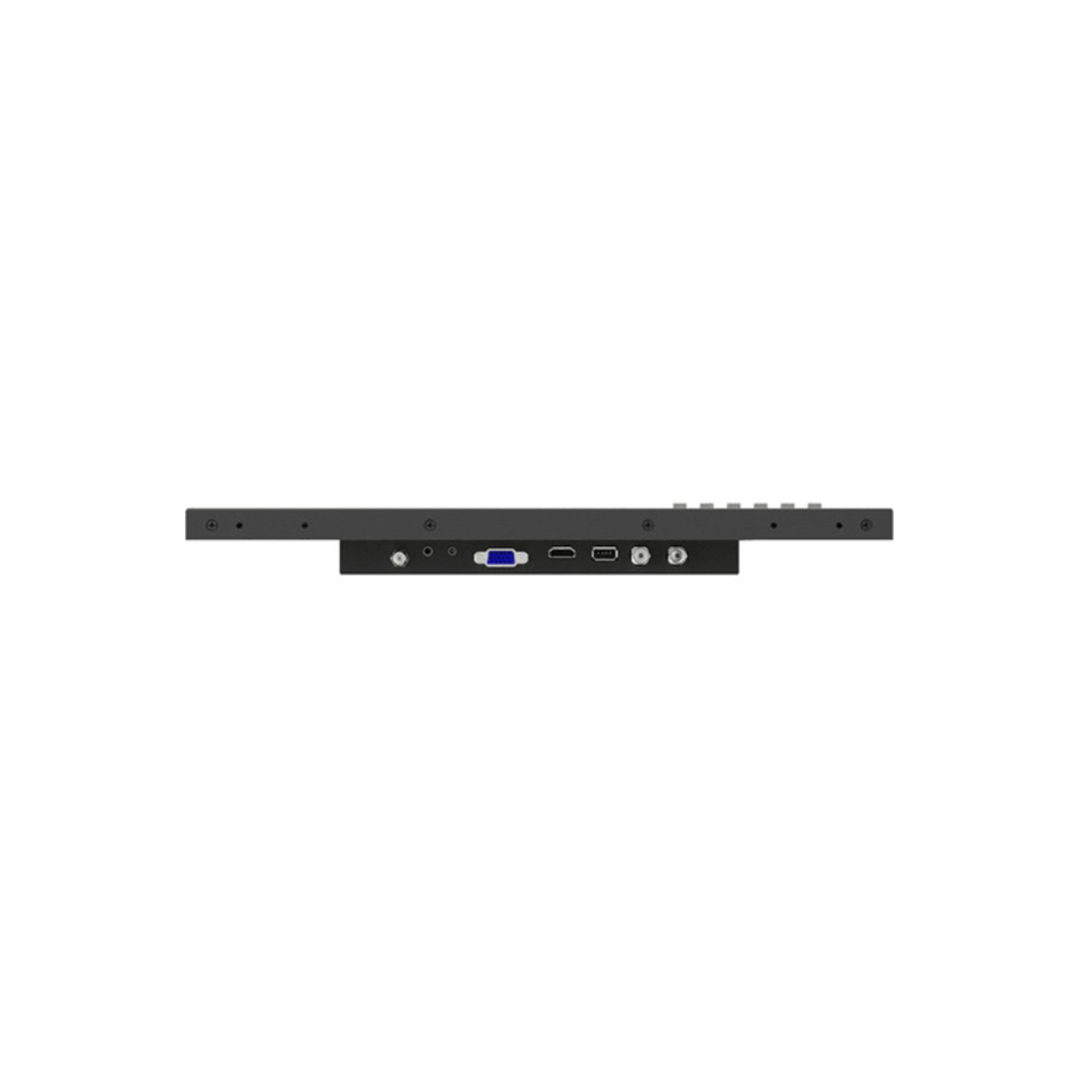

  • Bottom view of SDI monitor for direct display of PIXI, DART2, TERA, MIRA3 and APEX3 cameras

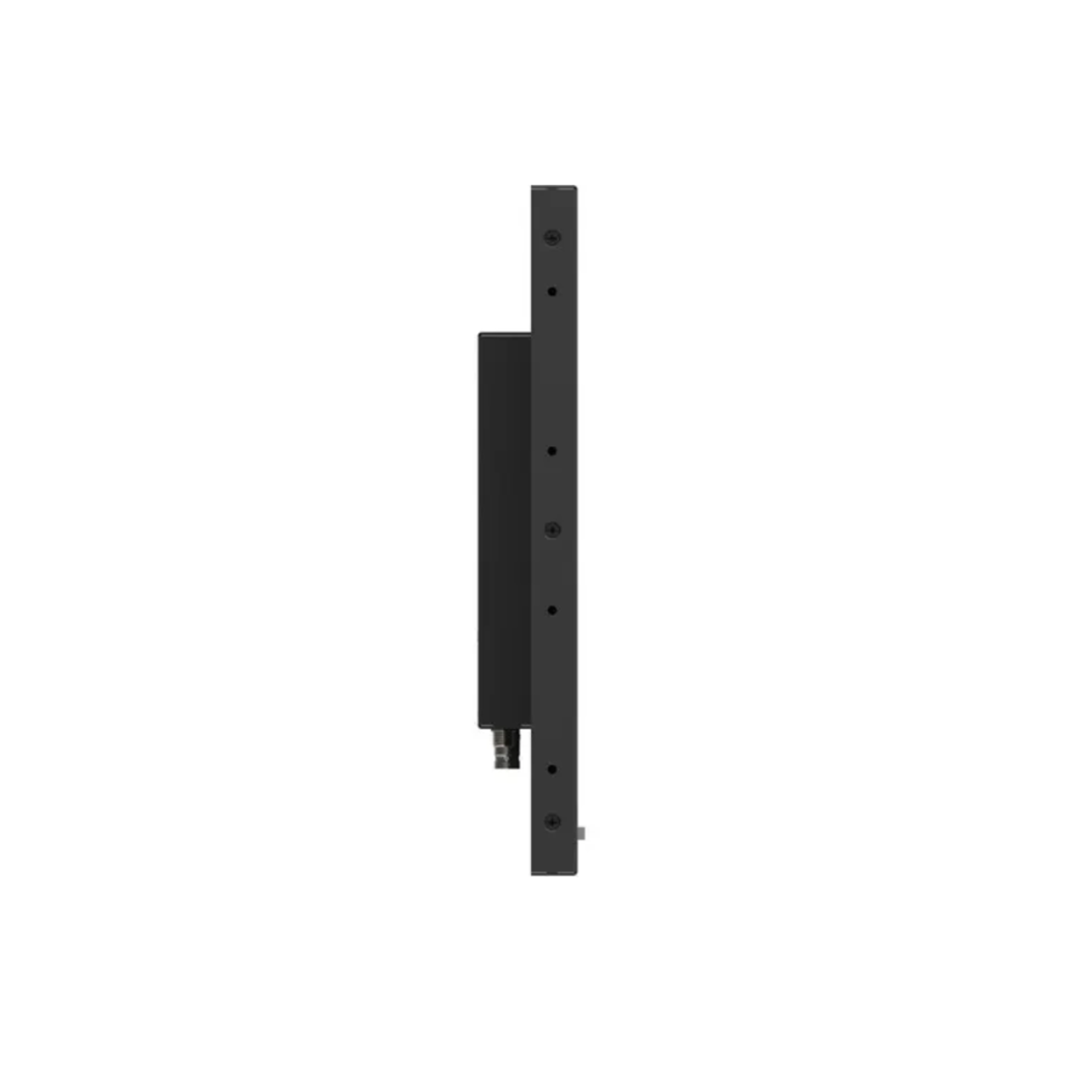

  • Side view of SDI monitor for direct display of PIXI, DART2, TERA, MIRA3 and APEX3 cameras
1 4
Click here to view all variant options.
Number of cameras
Price $730.00
Price $730.00
Sale Sold out
calculated at checkout.
SKU:  MT133069
Part Number:  DR0036
View full details

Description

This 15.6" HD-SDI monitor is encased in a durable metal housing. It features an HD-SDI loop-out, allowing for integration with other devices. As a simple yet effective display solution, this monitor is perfectly sized and directly matches the resolution of our SDI cameras.

Specifications

Weight
2.87 kg (6.3 lbs)
Dimensions
389 x 260 x 37.6 mm (15.3 x 10.2 x 1.5")
DC In
10-24 VDC
Power
≤24 W
Video inputs
3G SDI
Viewing Angle
178°/178°(H/V)
Resolution
1920 × 1080
Brightness
1000 cd/m²
Aspect ratio
16:9
