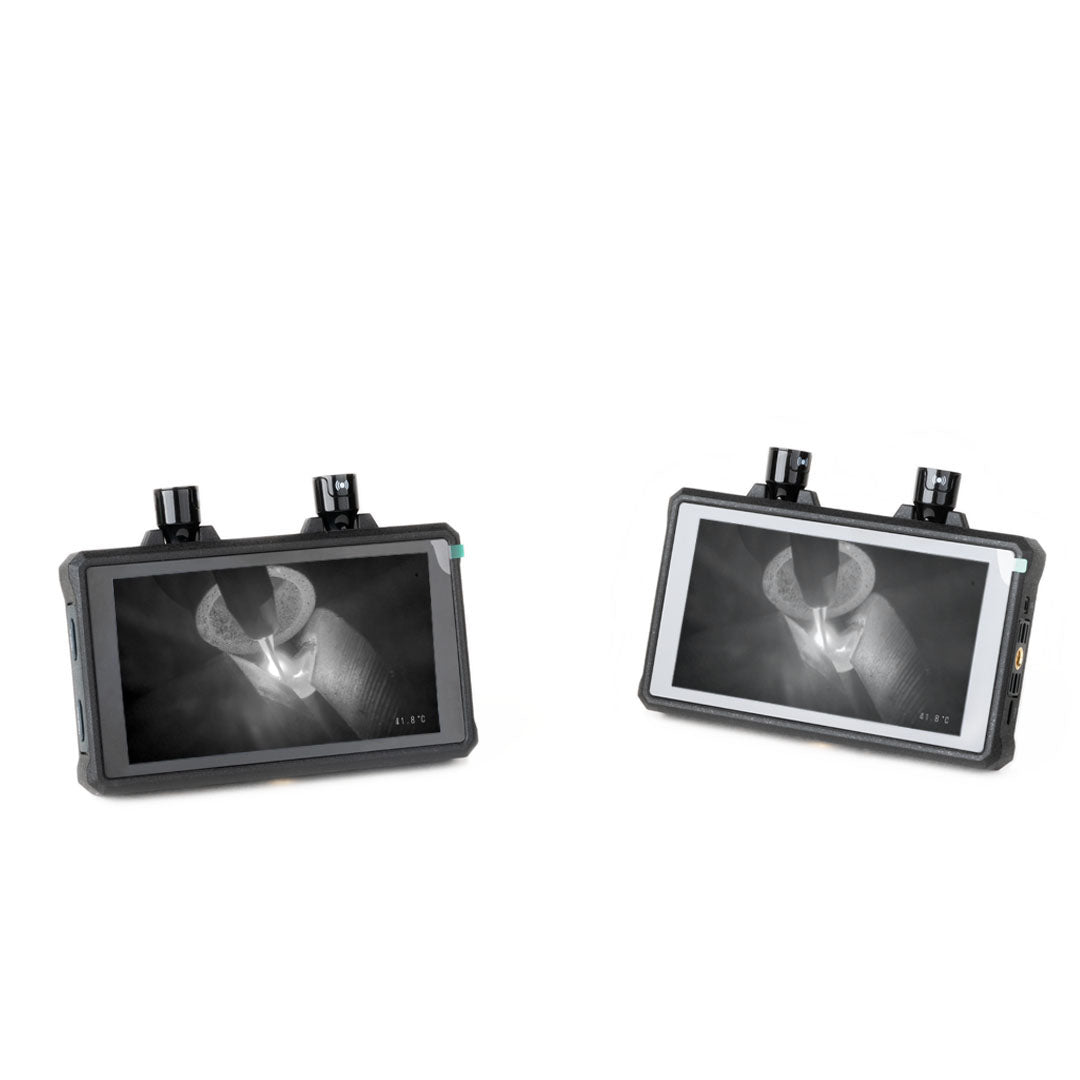

The kit consists of two 5" touch screen monitors. Each unit acts as a wireless transmitter or receiver. The monitors have a range of up to 150 m (450 ft) and offer HDMI input and loop-out as well as SDI input.
The wireless transmitter and receiver pairs may be set to specific channels, so that multiple kits may be used in the same facility.

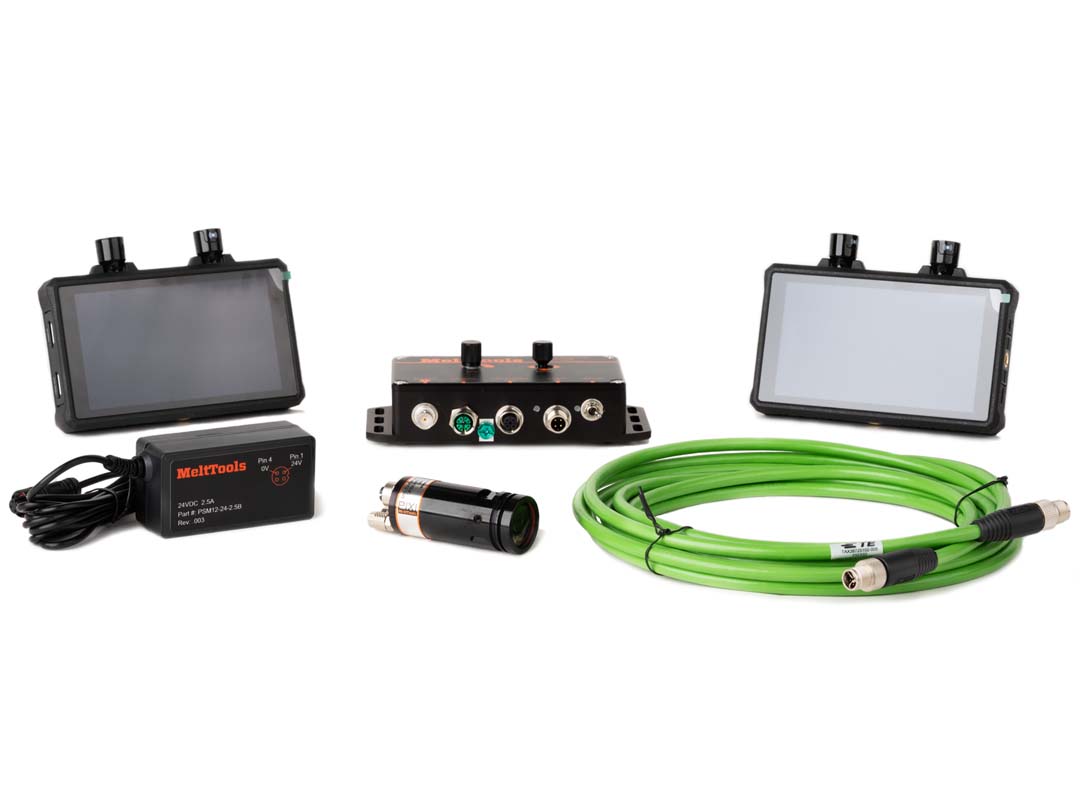

These wireless monitors are compatible with our MeltView weld monitoring cameras and provide a flexible solution when the video must be transmitted over long distance or cabling is impractical. A short flex camera cable is required from the MeltView camera to the transmitter.
Aspect ratio
16:9
Brightness
1000 cd/m²
Resolution
1920 x 1080
LOS range
150 m (450 ft)
Video inputs
Transmitter: SDI; HDMI
Power
Transmitter: <14.5W (without DC output)
Receiver: <10W (without DC output)
DC In
Transmitter: 7-16V DC, nominal 12V
Receiver: 7-16V DC, nominal 12V
Dimensions (per monitor)
152 x 96 x 40 mm (5.98 x 3.76 x 1.57")
Weight (per monitor)
.38 kg (.875 lbs)
