7" Dual SDI monitor 3RU rackmount

Displays

  • Number of cameras

Pricing

Quantity

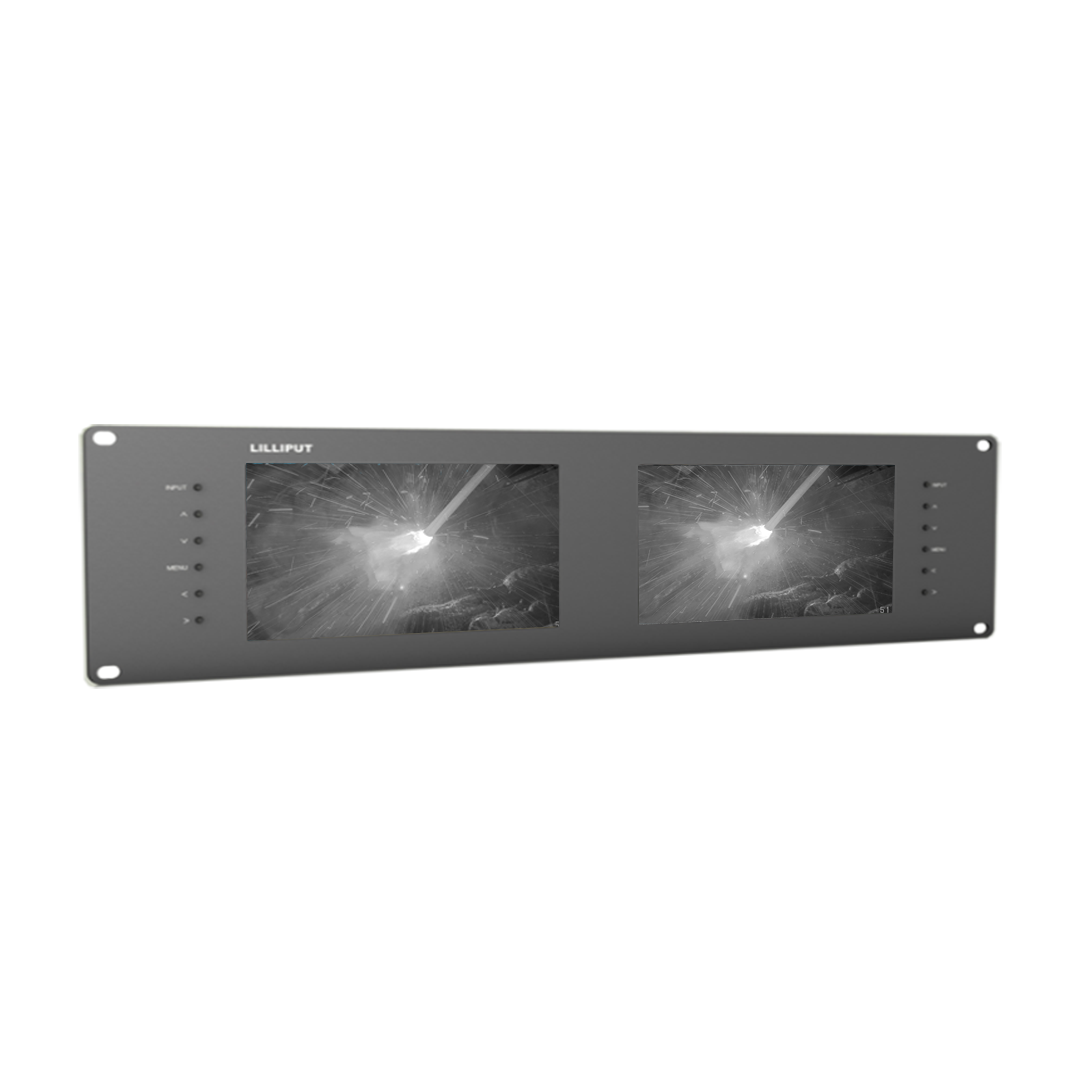

The dual 7" SDI rackmount monitor is a compact unit for dual weld monitoring. It features 2x 7" IPS panels with independent HDMI and 3G SDI connectivity, and it is mountable in a 19" 3U rack system.

Specifications

Aspect ratio

16:9

Native resolution

1280x800 (Native)

Maximum resolution

up to 1920x1080

Brightness ratio (cd/m2)

400

Contrast ratio

800:1

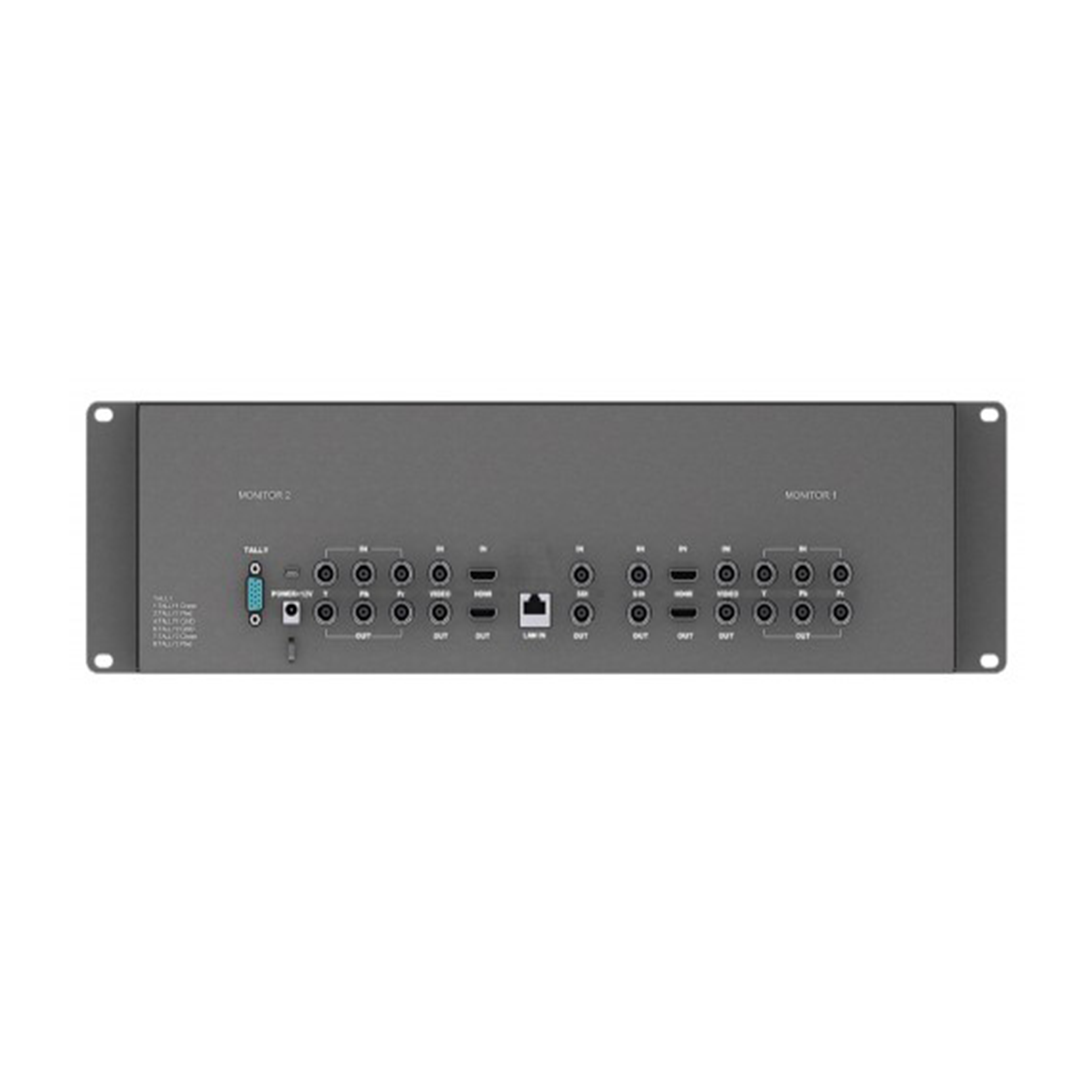

Video inputs

2 x 3G-SDI, 2 x HDMI, 2 x YPbPr, 2 x Composite, 2 x Tally Connection, 1 x USB Mini

Video outputs

2 x 3G-SDI, 2 x HDMI, 2 x YPbPr, 2 x Composite

Dimensions

H 133.5mm x W 482.5mm x D 25.3mm

Weight

2885 g (6.36lbs)

Operating temprerature

-20°C (-4°F) to 60°C (140°F)

You may also be interested in these recording devices

MeltView welding cameras display directly to a monitor. Alternatively the video may be displayed by means of a capture card, DVR or IP signal.
