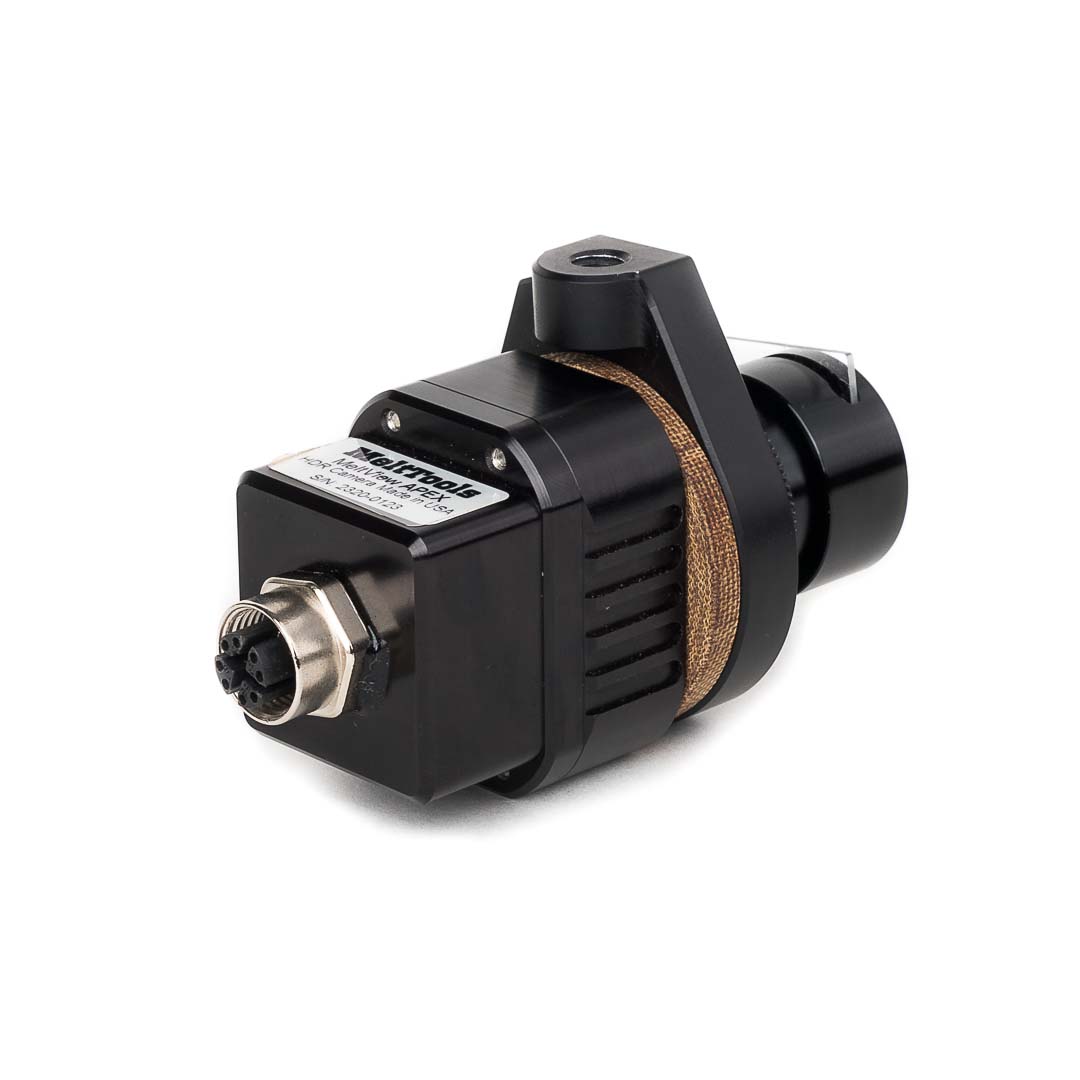

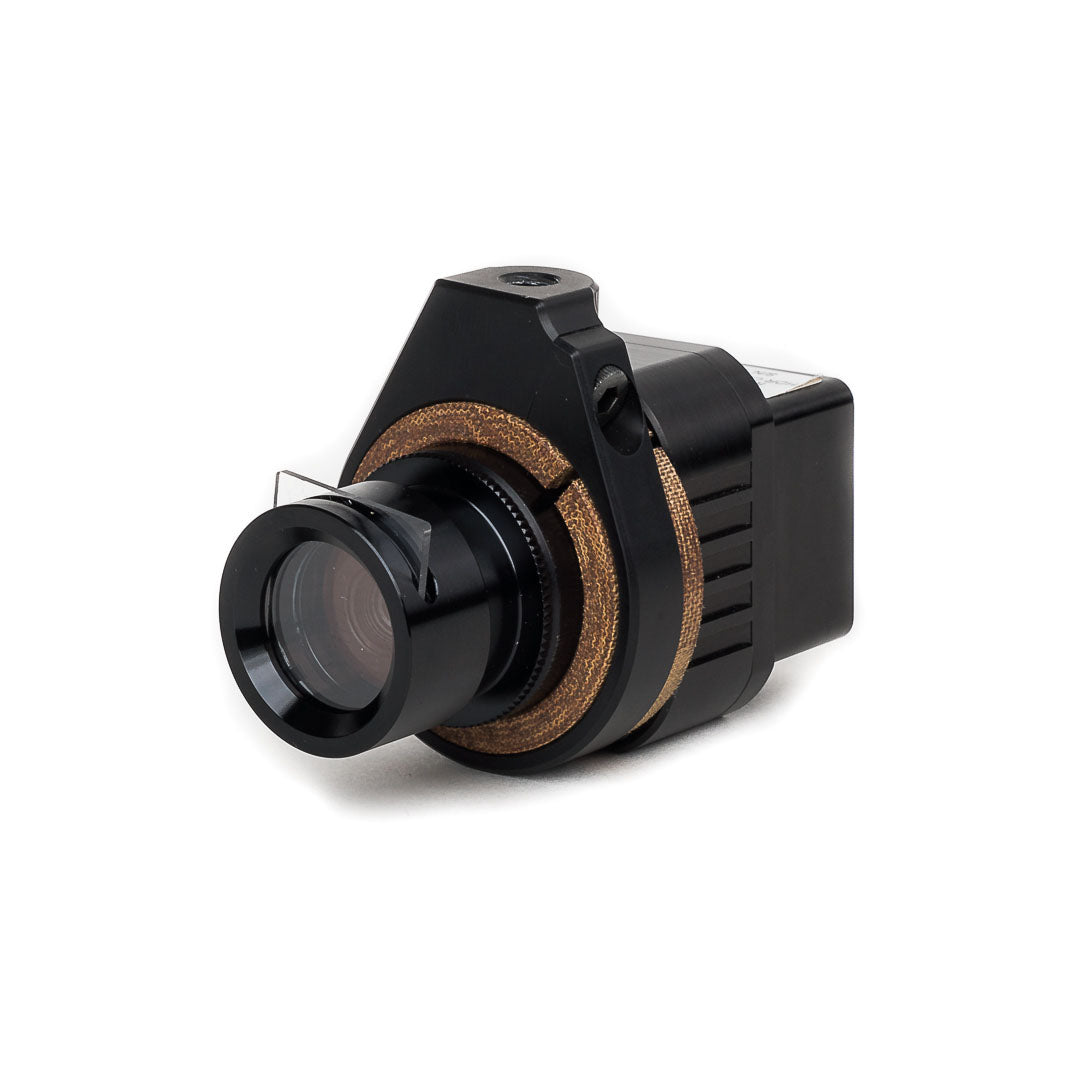

MeltView APEX3 welding camera

Welding education made clear

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.

  • Optics

  • Lens

  • Cable

Register today »
Please register to see pricing.

Our third-generation APEX welding camera is a one-of-a-kind educational tool for safe and effective demonstration of arc welding.

  • Full HD, full frame video for demonstrating and recording welding
  • Rich monochrome or color image of all open arc welding processes

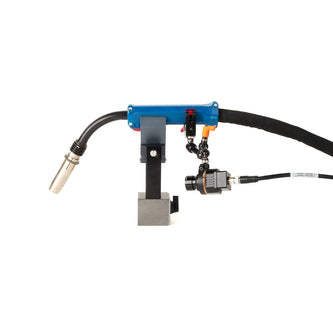

  • Small, lightweight camera allows mounting to GTAW and GMAW torches or to welding bench, swing arm, gantry, etc
  • Camera displays directly to monitor, no computer or software required
  • Easily display/record/stream video with the included frame grabber to your own laptop
  • Integrated protection from spatter and HF

Welding Processes

Specifications

Temperature rating

0°C - 50°C (32 -122°F)

Operating environment

85% RH. Max, non-condensing

Illumination

External LED


1920x1080

Video output signal

HD - SDI

Power

12V DC

Consumption

150mW

Dimensions

36 x 36 x 78mm (1.4 x 1.4 x 3.1")

Weight

180 g (0.4lbs)

Looking for the MeltView APEX3 camera kit?
