21" SDI Quad-split broadcast monitor

Displays

  • Number of cameras

Pricing

Quantity

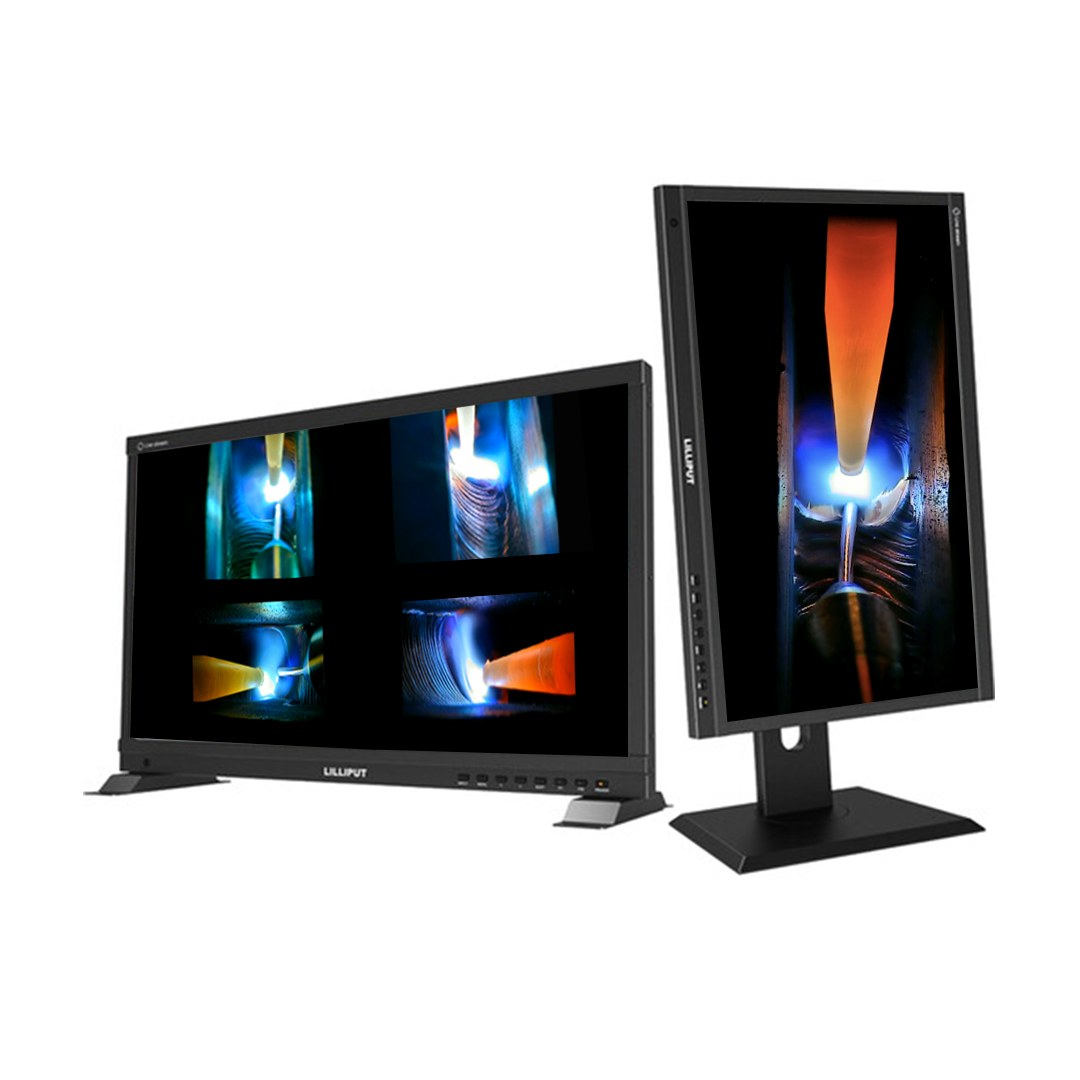

This 21.5" quad-split broadcast monitor can be used to monitor 1, 2, 3 or 4 1080P video signals, making it easy to monitor multi-camera systems at a single source.

Specifications

Aspect ratio

16:9

Resolution

1920 x 1080

Brightness

500 nit

Contrast ratio

1500:1

HDMI inputs

2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60 + PGM HDMI/SDI × 1 1080p 60/50/30/25/24

SDI inputs

2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60

Dimensions

508mm × 321mm × 47mm

Weight

5.39 kg (11.9 lbs)

Operating Temperature

-20°C to 60°C  (-4°F to +140°F)

Storage Temperature

-30°C to 60°C  (-22°F to +140°F)

You may also be interested in these recording devices

MeltView welding cameras display directly to a monitor. Alternatively the video may be displayed by means of a capture card, DVR or IP signal.
