7" HDMI 3G-SDI Sunlight readable monitor

Displays

  • Number of cameras

Pricing

Quantity

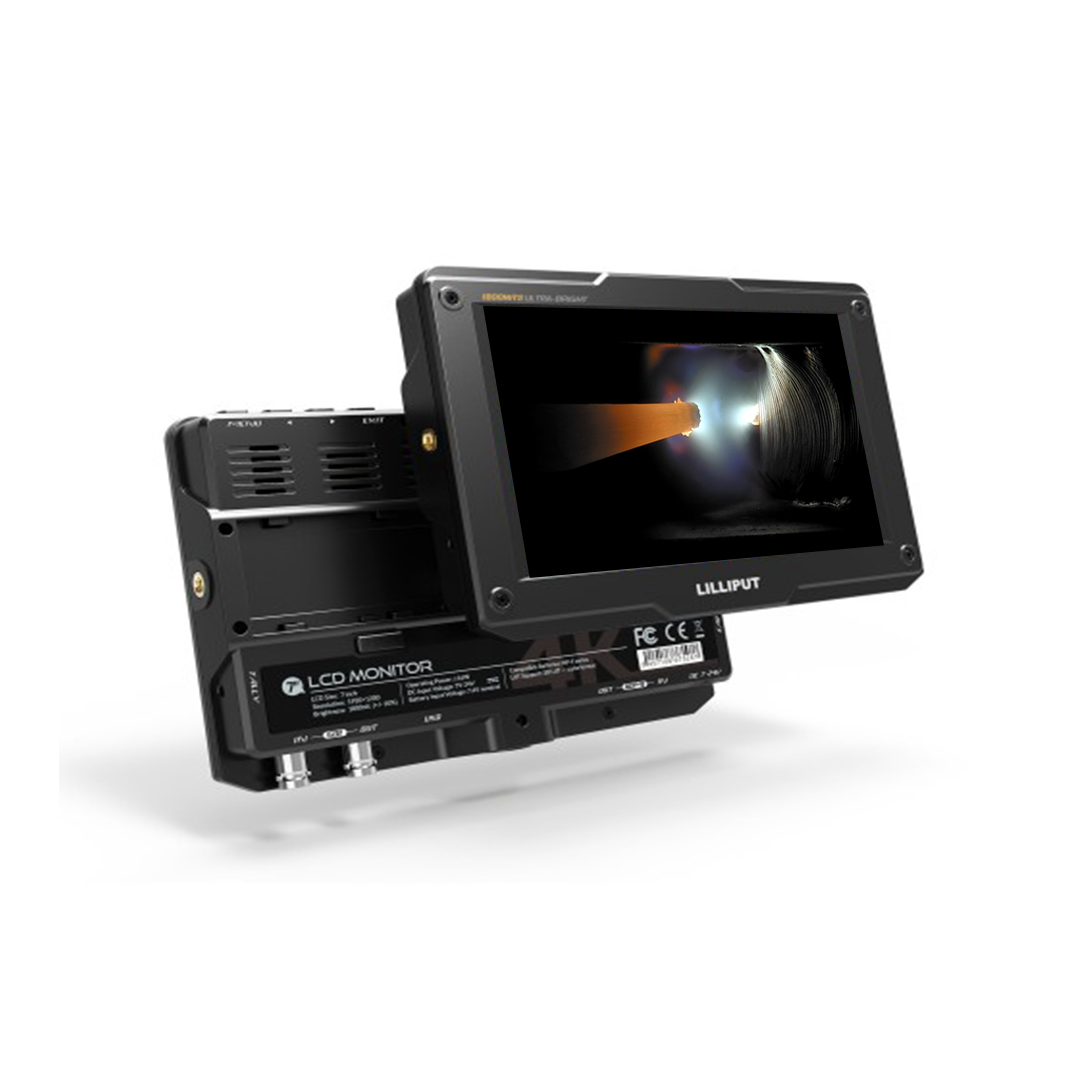

This 7" monitor has been engineered for outdoor settings / high-brightness environments with a 1800 nit panel. It features a 4K HDMI 1.4 input, 3G SDI, and pass-through options for compatibility with a range of devices and systems.

Specifications

Aspect ratio

16:10

Native resolution

1920 x 1200

Maximum resolution

2840 x 2160

Brightness ratio (cd/m2)

1800

Contrast ratio

1200:1

Video input

1x HDMI 1.4

Video output

1x HDMI1.4, 1x 3G-SDI, 1x Loop out

Dimensions

225 x 155 x 23 mm (8.9 x 6.1 x 0.9")

Weight

550 g ( 1.3lbs)

Operating Temperature

0°C (32°F) to 60°C (140°F)

Storage Temperature

-10°C (14°F) to 60°C (140°F)

You may also be interested in these recording devices

MeltView welding cameras display directly to a monitor. Alternatively the video may be displayed by means of a capture card, DVR or IP signal.
