MeltView® PIXI welding camera

Versatile camera ideal for LBW, PAW, SAW and TIG

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.

  • Optics

  • Lens

  • Cable

Pricing

Quantity

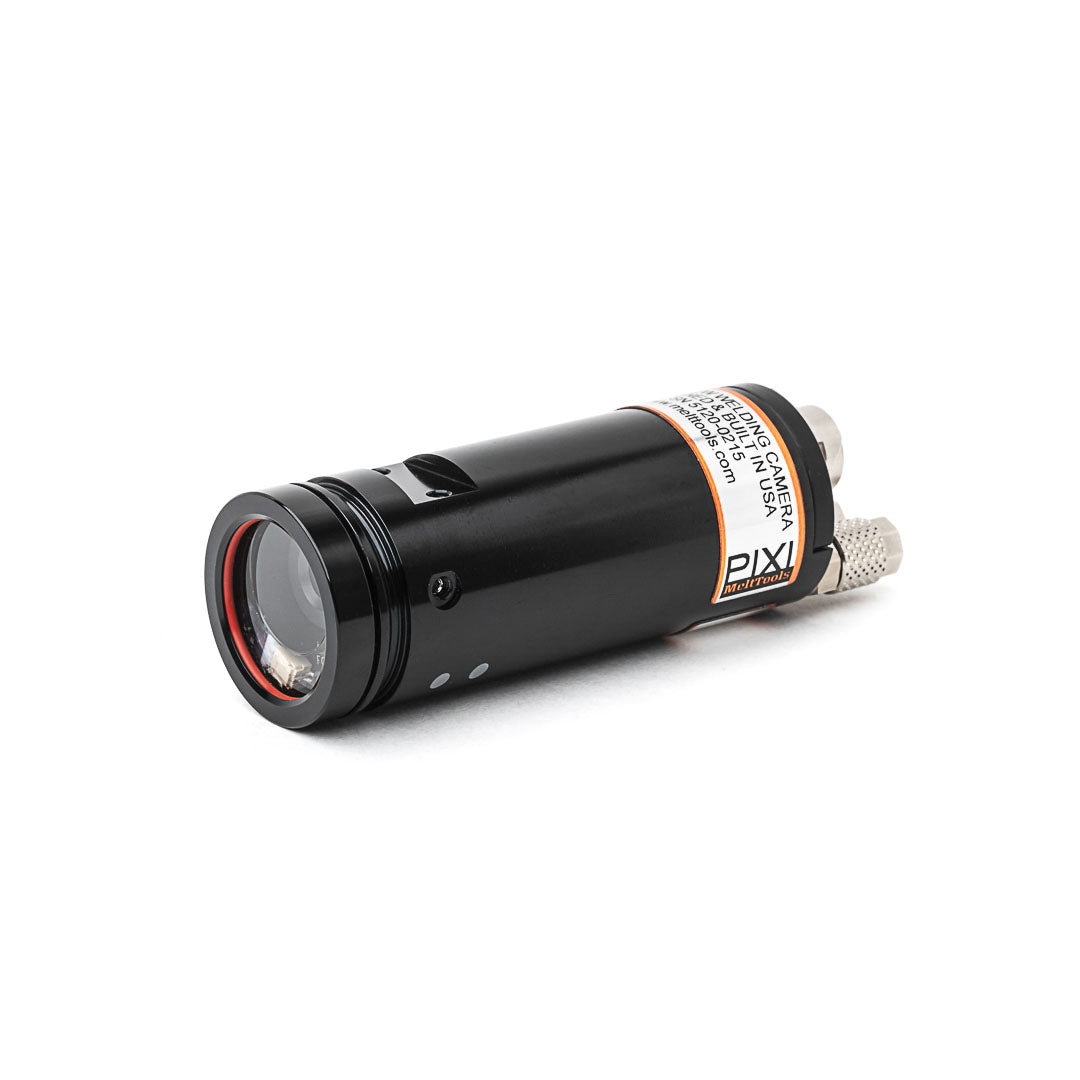

The MeltView® PIXI is a compact, ruggedized welding camera that provides a stunning high resolution image of welding. Simple to operate and highly configurable, the MeltView® PIXI is employed as close as 2" (51 mm) from the weld and at temperatures up to 400°C (752°F).

  • Rich monochrome or color image of GTAW, PAW, LBW, SAW
  • Automatic switching between arc-on and arc-off modes
  • Small size (30Ø mm) includes cooling channels and lighting
  • Models with 45° and 90° optics available
  • Camera displays directly to monitor, no computer or software
  • Adjustable dual crosshairs
  • Requires a MeltView® camera controller
  • Optional frame grabber or DVR for recording video
  • Standard X-coded or F-style cable; other transmission systems available (wireless, fiber, dual cable)

Welding Processes

Specifications

Temperature rating without cooling

0° - 50°C (32° -122°F)

Temperature rating with water cooling

0° - 400°C (32° - 752°F)

Operating environment

85% relative humidity

Illumination

Integrated LED

Video output signal

HD-SDI


1920 x 1080

Power

24 VDC

Consumption

approx. 500 mW - configuration specific

Dimensions

30 x ~ 108 mm (1.2 x 4.3")

Weight

approx. 120 g (0.26 lbs)

  • Image gallery

    Image Gallery for MeltView® PIXI welding camera

    Image Gallery for MeltView® PIXI welding camera

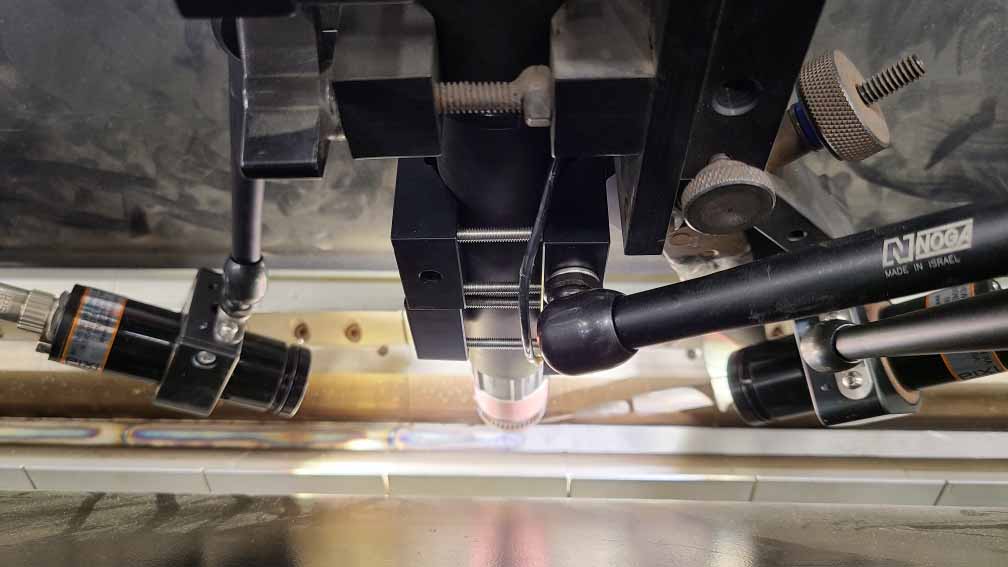

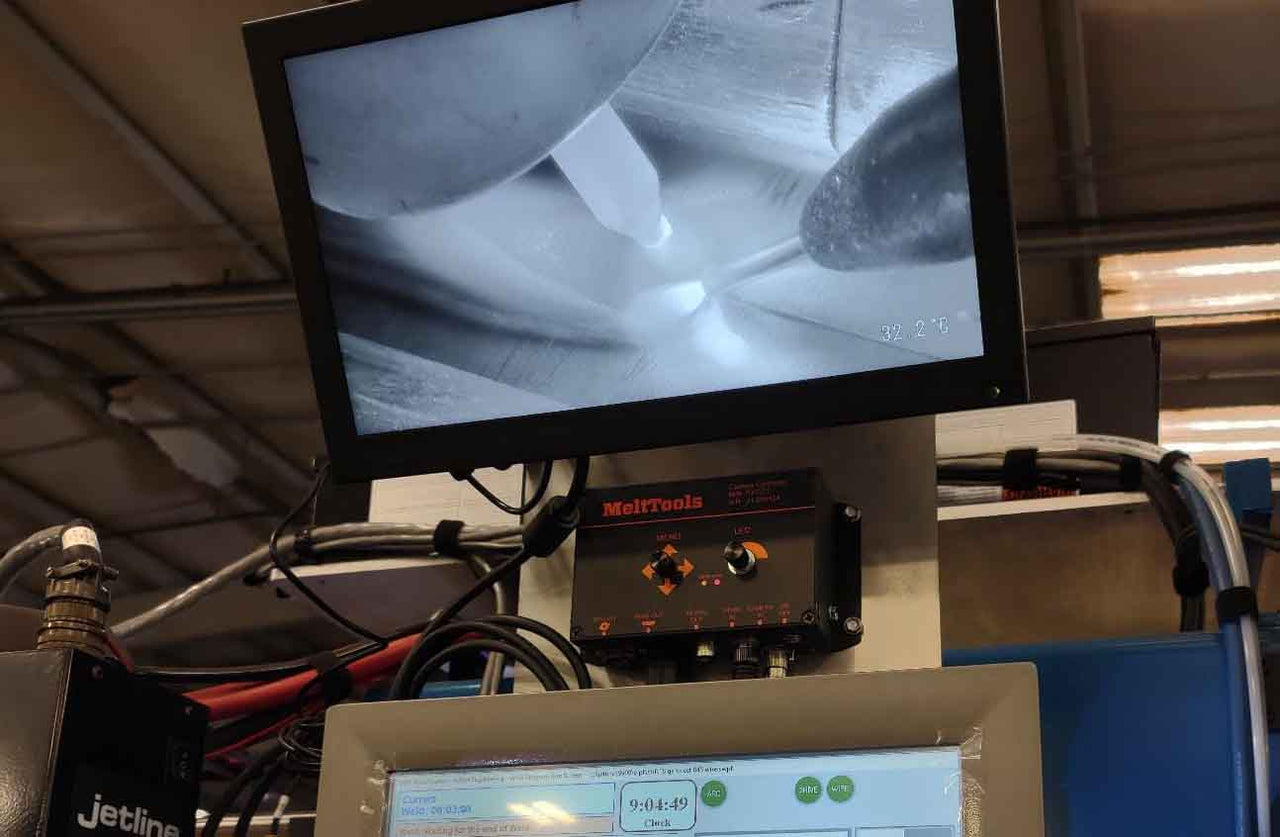

    The MeltView® PIXI cameras being used for weld monitoring from different angles

    Image Gallery for MeltView® PIXI welding camera

    The MeltView® PIXI cameras being used for weld monitoring from different angles
    MeltView® PIXI in color during TIG weld

    Image Gallery for MeltView® PIXI welding camera

    MeltView® PIXI in color during TIG weld

  • Video gallery

Image gallery

Image Gallery for MeltView® PIXI welding camera

Image Gallery for MeltView® PIXI welding camera

The MeltView® PIXI cameras being used for weld monitoring from different angles

Image Gallery for MeltView® PIXI welding camera

The MeltView® PIXI cameras being used for weld monitoring from different angles
MeltView® PIXI in color during TIG weld

Image Gallery for MeltView® PIXI welding camera

MeltView® PIXI in color during TIG weld

Video gallery

Customer Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
John Harkaway
PIXI Camera Review

Welding remote and in environmentally challenging conditions is very difficult. In our welding industry, the welding operator is typically “hands-off” from the weld location and relies on camera images to perform the welding task. The operator must make critical decisions and be able to see “Real Time” the arc puddle and all characteristics of the weld.
