Signal pass-through junction box

For single X-coded camera systems

Pricing

Quantity

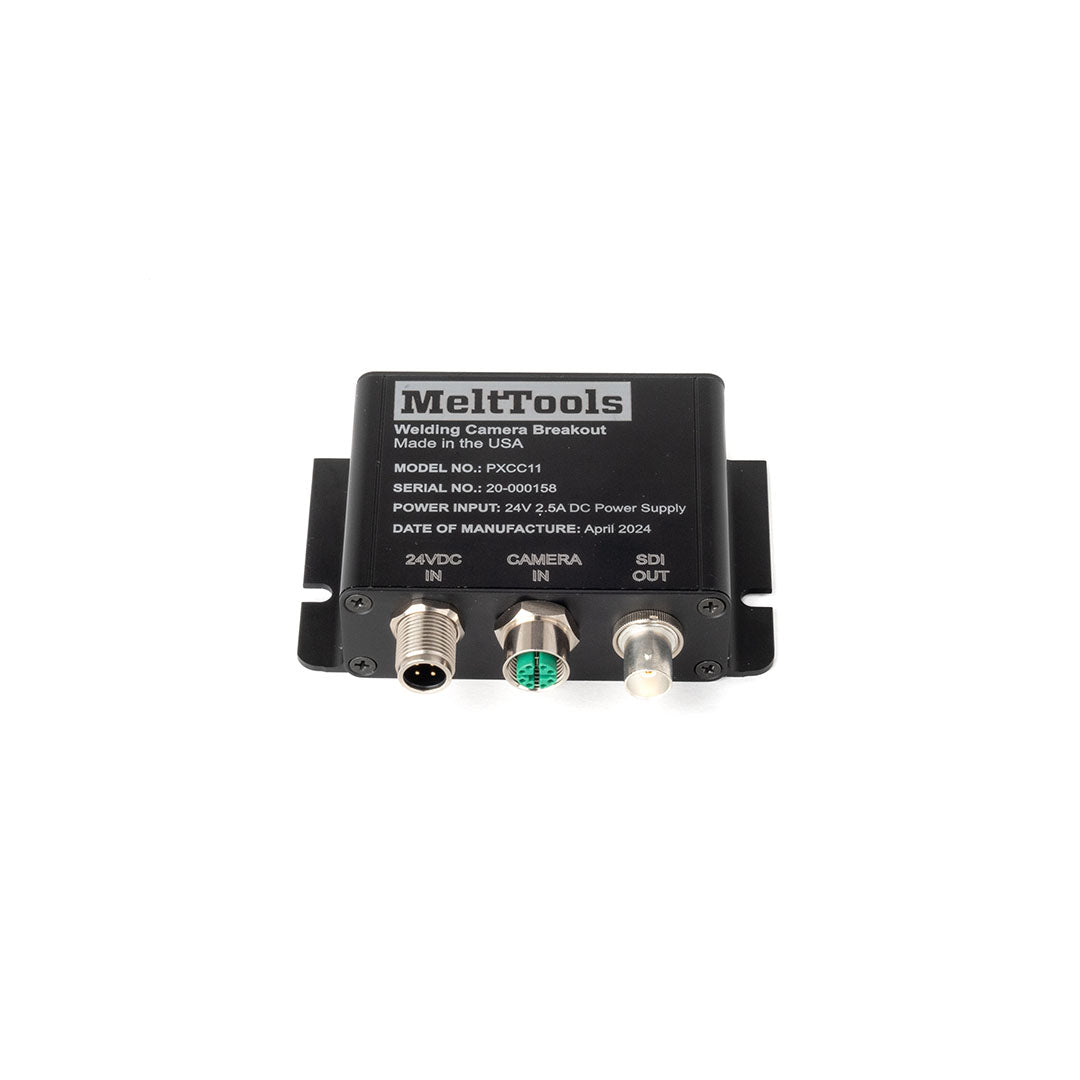

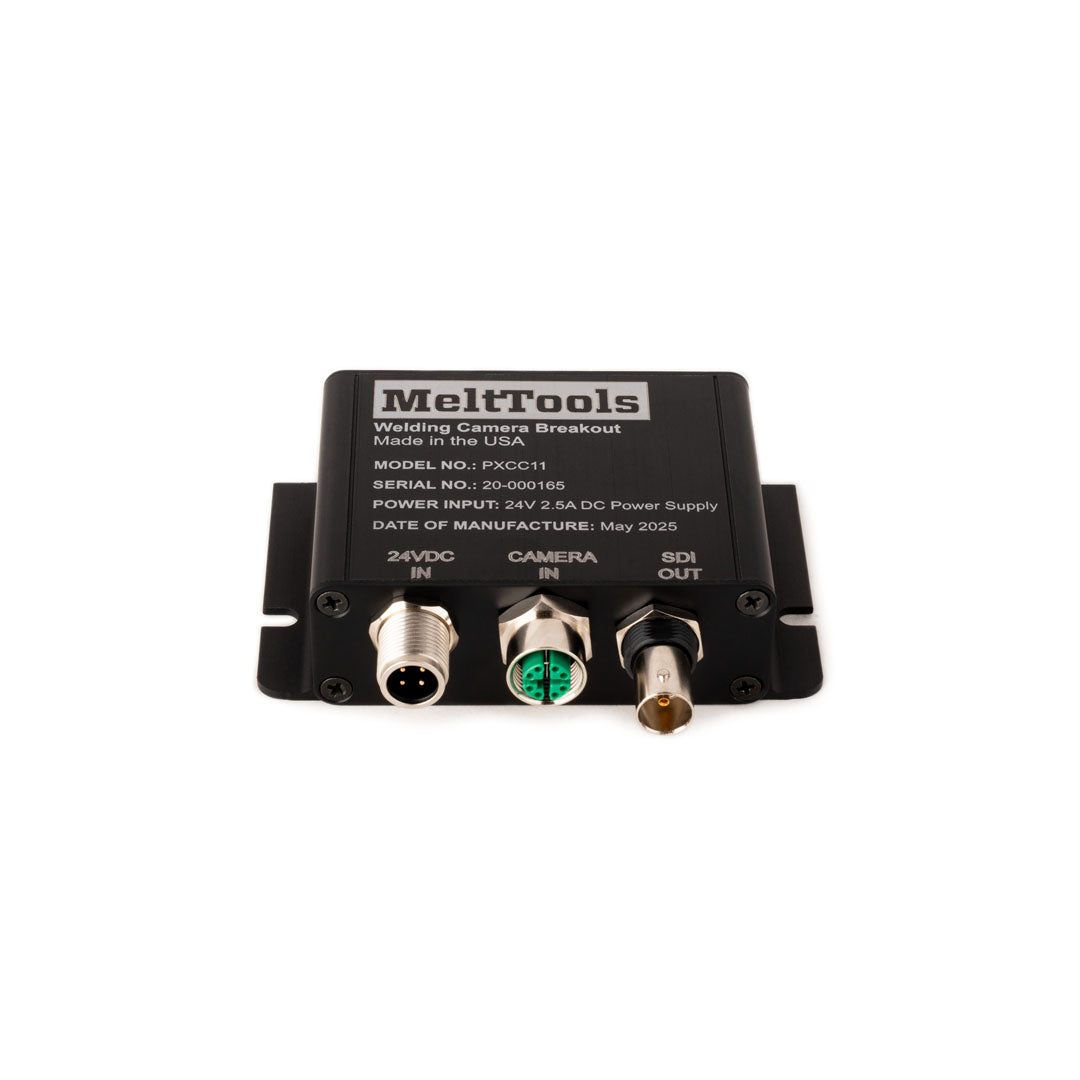

With no controls, our PXCC11 junction box replaces the need for a camera controller and is a price effective option to use with our MeltView® cameras and PROWatch industrial camera. Since our MeltView® cameras automatically adjust for a clear image between welding and non-welding, the PXCC11 is ideal for cost sensitive installations in which the camera parameters have been established and should not be changed. The junction box works with X-coded cables with a maximum length of 25m (82ft) and provides HD-SDI video output. Video can be transmitted up to 90m (295ft) using cables or up to 150m (450ft) with a wireless transmitter and receiver kit. The PXCC11 provides protection of electronics from HF/EMF.

  • Camera settings must be changed using a MeltView® compact or advanced camera controller
  • Cost-effective for single camera systems
  • HD-SDI video output

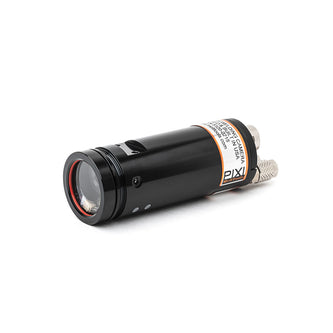

  • Can be used with MeltView® PIXI, DART2, APEX3, MIRA3 cameras and the PROWatch industrial monitoring camera

Specifications

Video format

1080 60i or 30p

Video output

HD-SDI

Output

12 VDC

Operating temperature

0° - 50°C (32° - 122°F)

Storage temperature

0° - 70°C (32° - 158°F)

Dimensions

Approx. 102 x 76 x 25 mm (4 x 3 x 1")

Weight

Approx. 170 g (6 oz)

Power

24 VDC

Consumption

7.6 W without powering monitor
