Compact camera controllers for F-style cables

For single camera systems

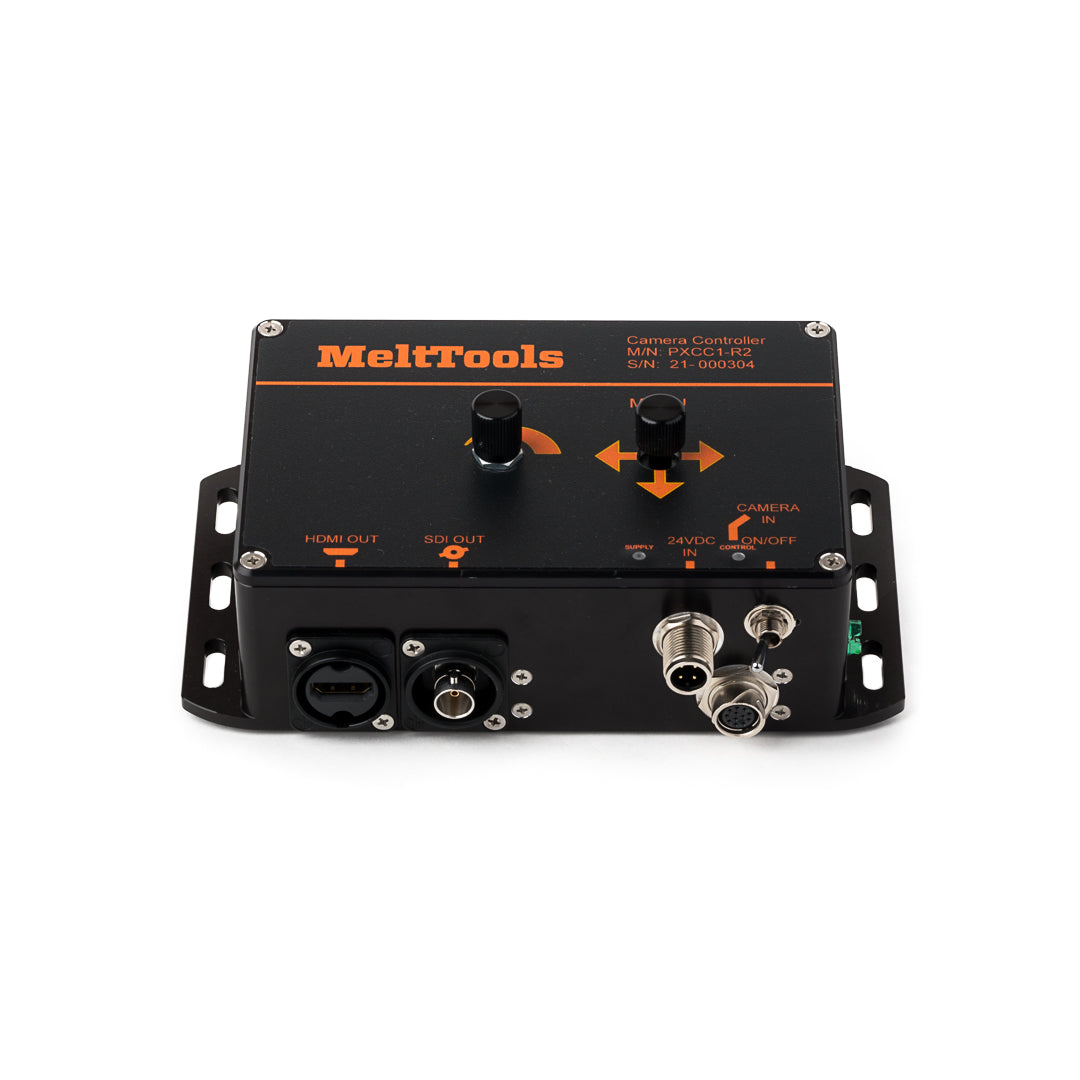

  • Compact welding camera controller PXCC1 Flex camera cable SDI and HDMI video
1 1

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.
Video out
Max cable length
Price $1,800.00
Price $1,800.00
Sale Sold out
calculated at checkout.
SKU:  MT519098
Part Number:  PXCC1
View full details

Description

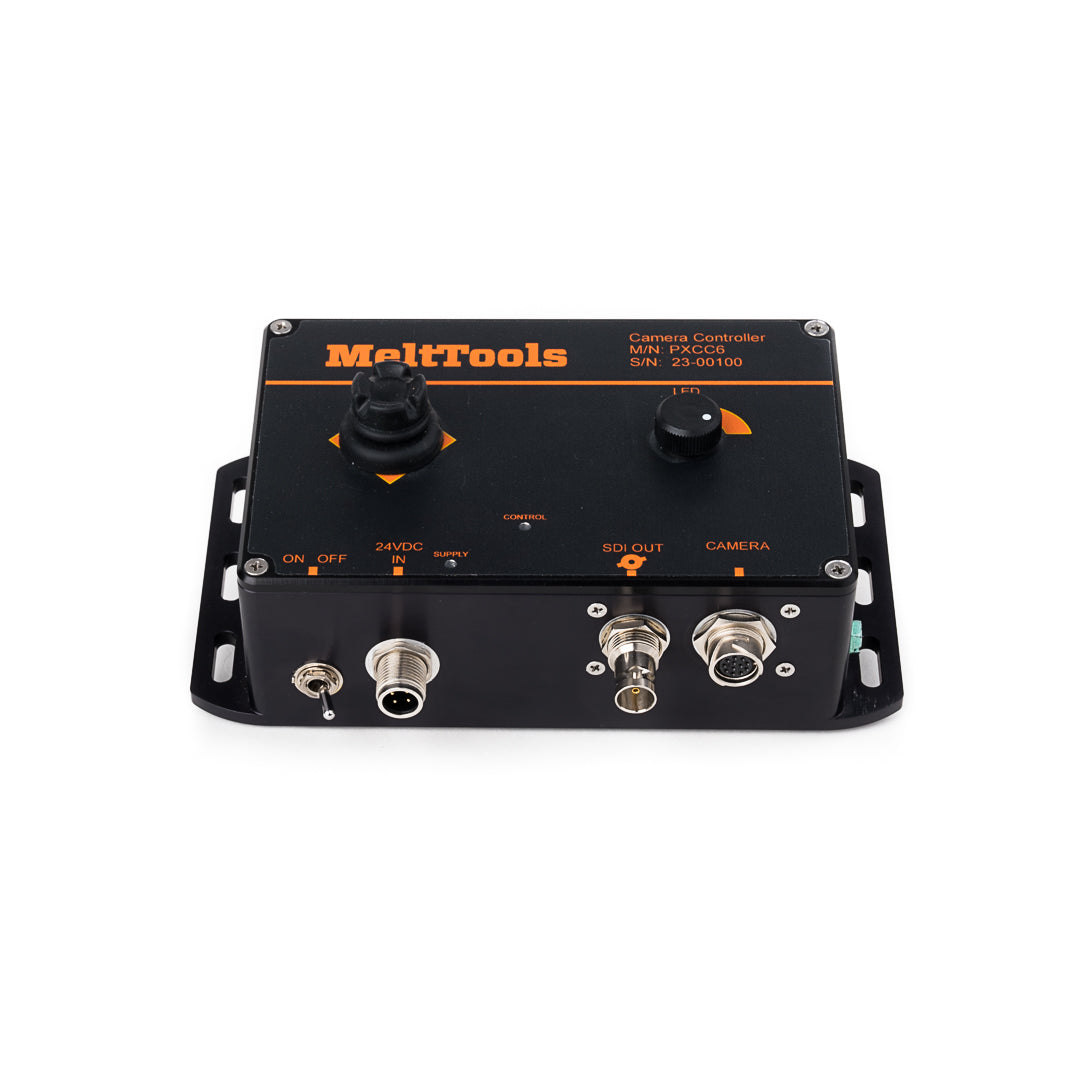

Our compact camera controllers are recommended for systems with a single camera. Different models of controller are compatible with MeltView® cameras based on camera cable type, either F-style or X-coded. The two F-style cable controllers shown here have different maxium cable lengths and video output. All compact controllers provide HD-SDI video output; PXCC1 additionally provides HDMI video output. All compact controllers provide protection of electronics from HF/EMF and should be grounded to machine ground.

Specifications

Consumption
7.6 W without powering monitor
Power
24 VDC
Weight
Approx. 900 g (2 lbs)
Dimensions
50 x 120 x 172 mm (2 x 5 x 7")
Storage Temperature
0° - 70°C (32° - 158°F)
Operating Temperature
0° - 50°C (32° - 122°F)
Output
12 VDC
Video output
HD-SDI (and HDMI 1.4 for PXCC1)
Video format
1080 60i or 30p

Image Resources

PIXI Seamer

Camera Controller Crosshairs On

DART2 Mini welding camera with crosshairs
