Compact camera controllers for F-style cables

For single camera systems

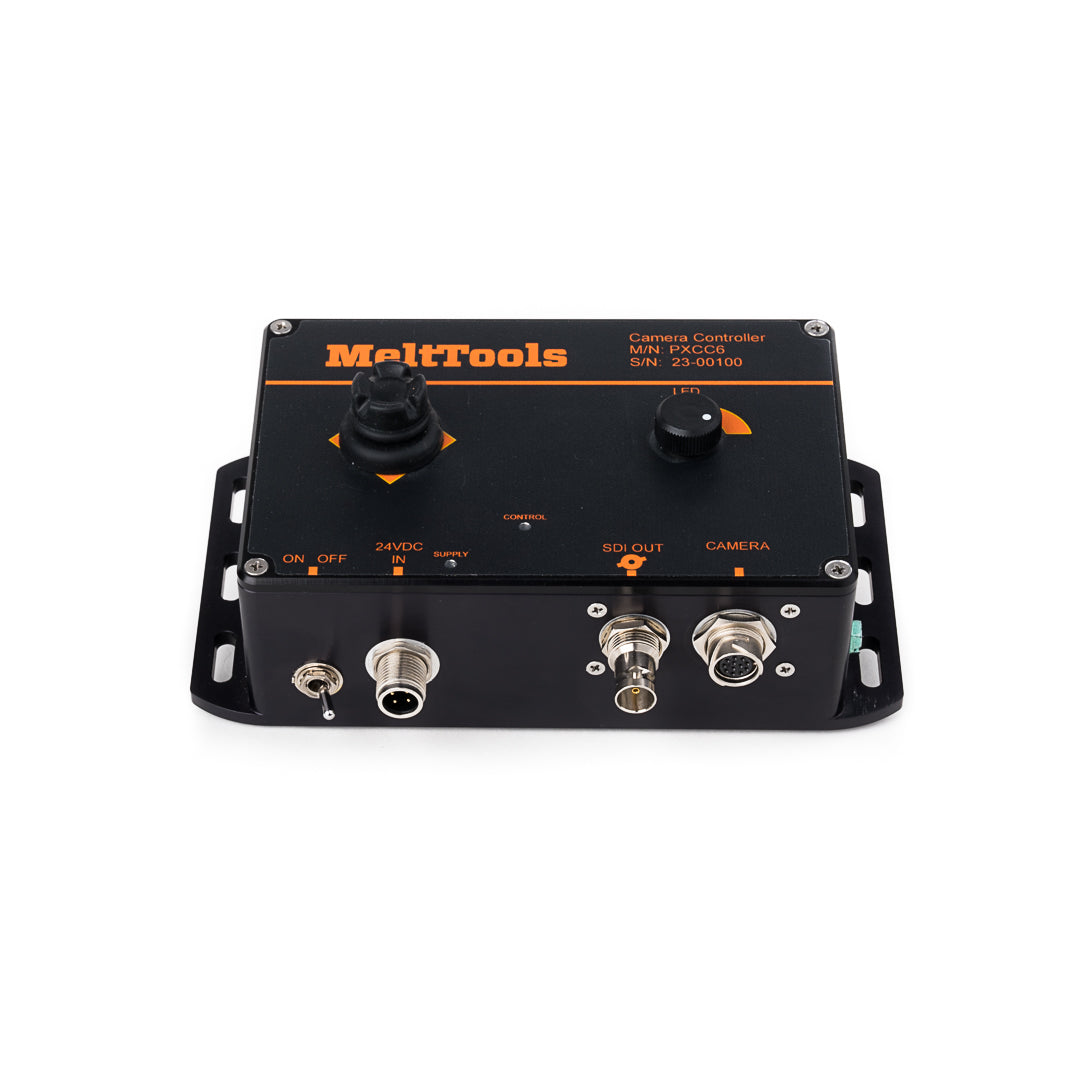

Compact welding camera controller PXCC6 Flex camera cable SDI video

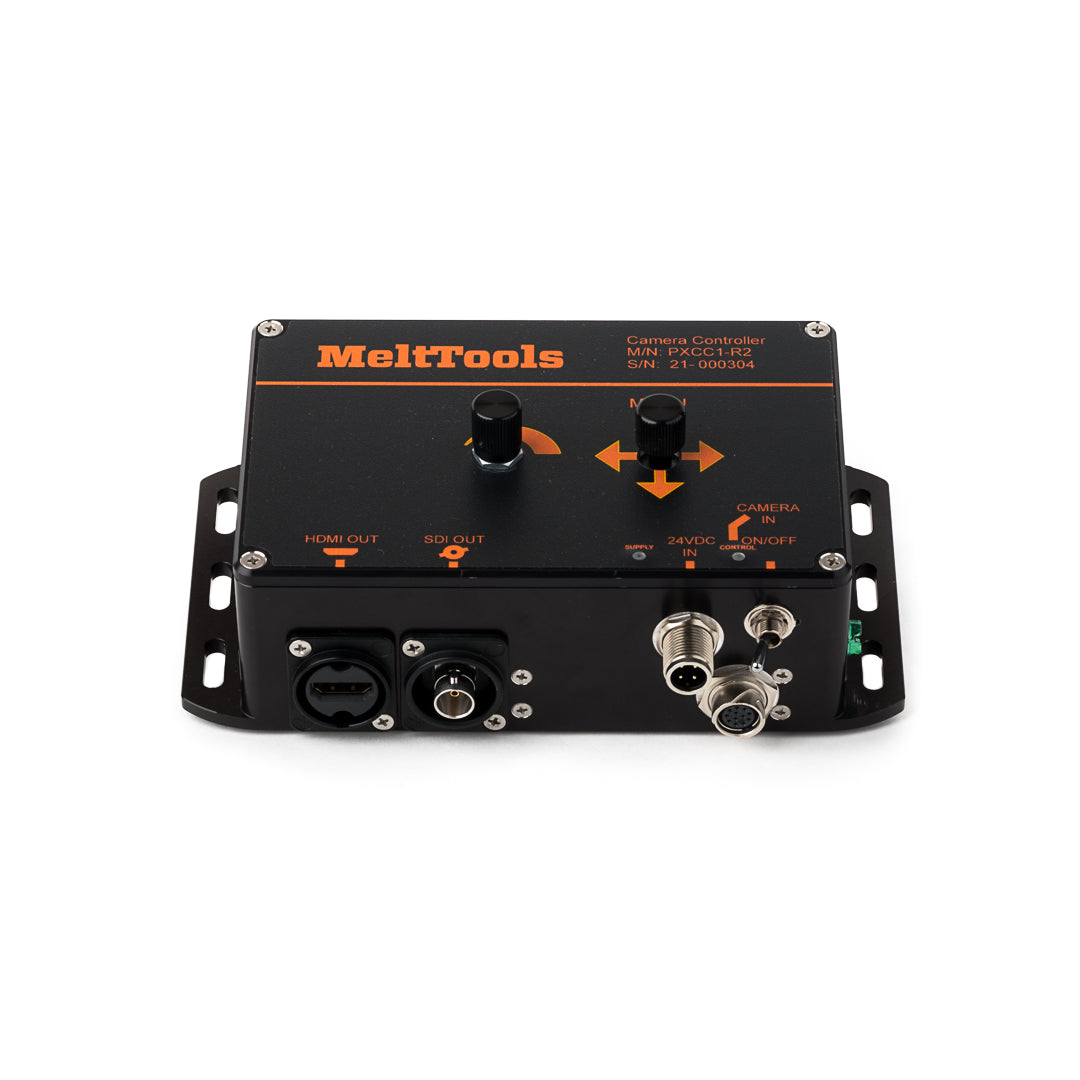

Compact welding camera controller PXCC1 Flex camera cable SDI and HDMI video

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.

Please select.

Video out
SDI, HDMI
SDI only

Max cable length

15 m (49.2')

30 m (98.4')

Pricing

Quantity

Our compact camera controllers are recommended for systems with a single camera. Different models of controller are compatible with MeltView® cameras based on camera cable type, either F-style or X-coded. The two F-style cable controllers shown here have different maxium cable lengths and video output. All compact controllers provide HD-SDI video output; PXCC1 additionally provides HDMI video output. All compact controllers provide protection of electronics from HF/EMF and should be grounded to machine ground.

Joystick access to camera menu
Adjust LED brightness
HD-SDI video output (PXCC1 has additional HDMI video out)
APEX3 and MIRA3 cameras utilize the Compact camera controller for X-coded cables only

Specifications

Video format

1080 60i or 30p

Video output

HD-SDI (and HDMI 1.4 for PXCC1)

Output

12 VDC

Operating Temperature

0° - 50°C (32° - 122°F)

Storage Temperature

0° - 70°C (32° - 158°F)

Dimensions

50 x 120 x 172 mm (2 x 5 x 7")

Weight

Approx. 900 g (2 lbs)

Power

24 VDC

Consumption

7.6 W without powering monitor
