Compact camera controller for X-coded cables

For single camera systems

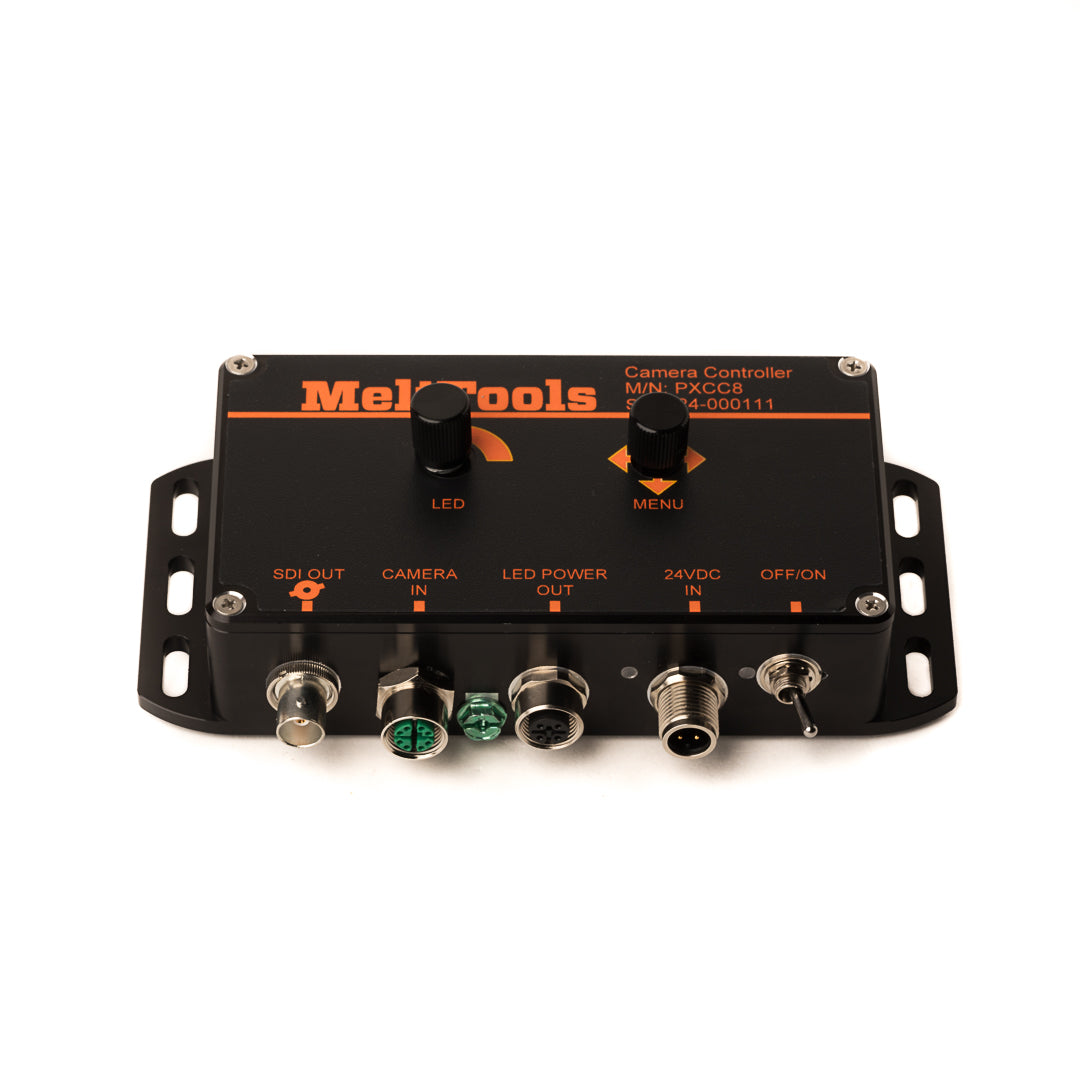

  • PXCC8 compact camera controller for single camera systems
1 1

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.
Price $1,800.00
Price $1,800.00
Sale Sold out
calculated at checkout.
SKU:  MT519055
Part Number:  PXCC8
View full details

Description

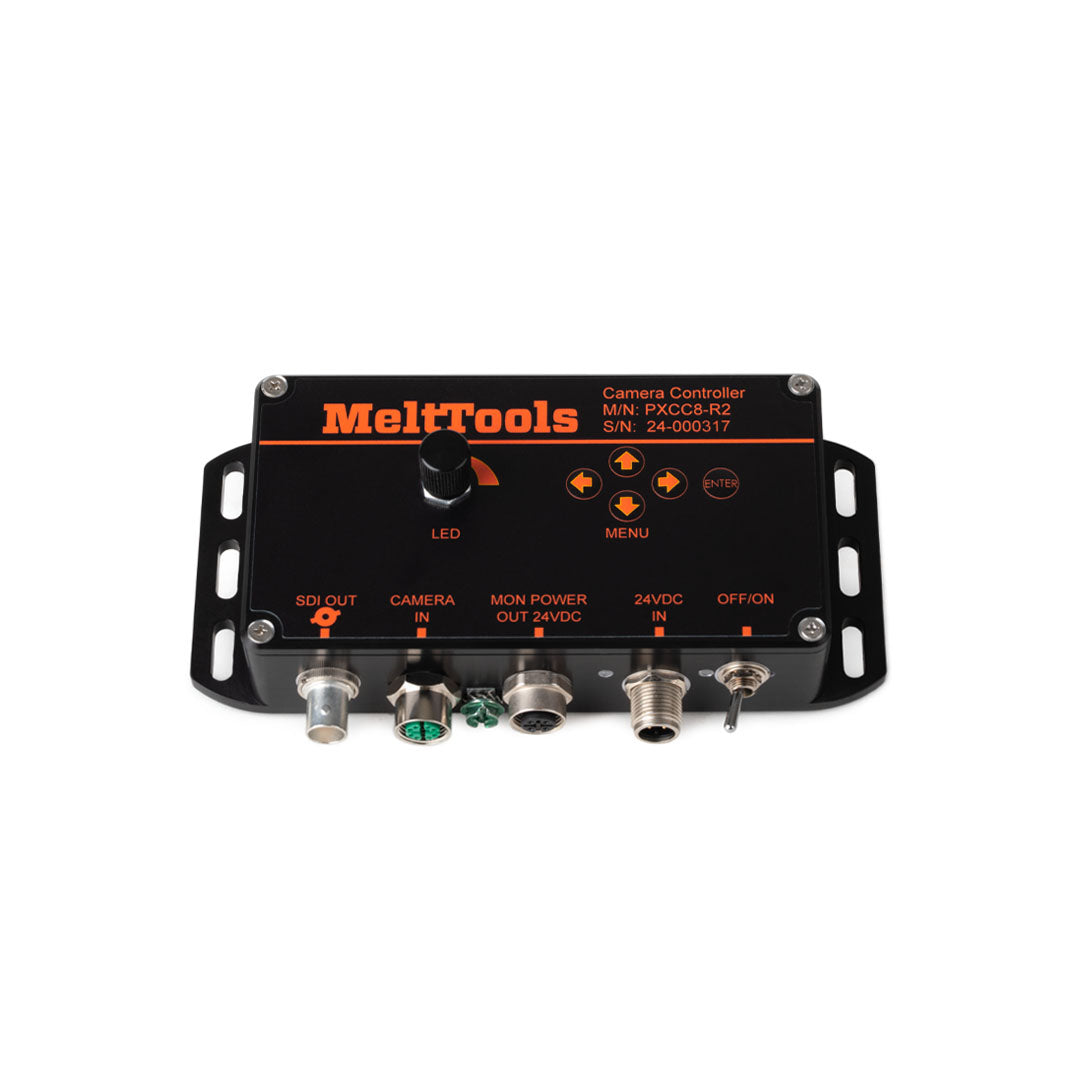

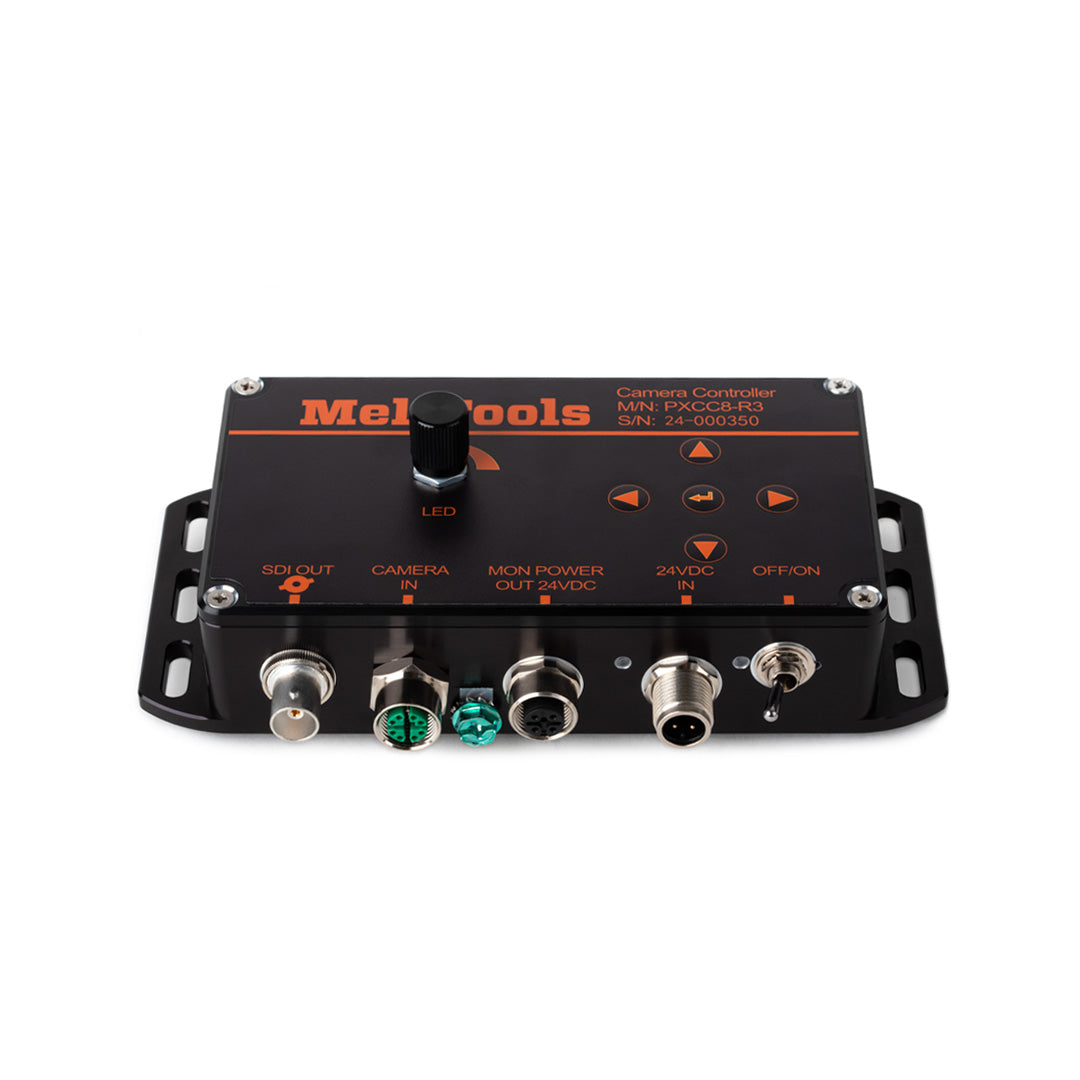

Our PXCC8 compact camera controller is recommended for systems with a single camera. This controller is for X-coded cables with a maximum length of 25 m (82') and provides HD-SDI video output. The camera controller provides protection of electronics from HF/EMF and should be grounded to machine ground.

  • Joystick access to camera menu
  • Adjust LED brightness
  • HD-SDI video output
  • Can be used for PIXI, DART2, APEX3 and MIRA3 cameras

Specifications

Consumption
7.6 W without powering monitor
Power
24 VDC
Weight
Approx. 900 g (2 lb)
Dimensions
50 x 120 x 172 mm (2 x 5 x 7")
Storage temperature
0° - 70°C (32° - 158°F)
Operating temperature
0° - 50°C (32° - 122°F)
Output
12 VDC
Video output
HD-SDI
Video format
1080 60i or 30p

Image Resources

MeltView® DART2 Camera Controller Crosshair Options

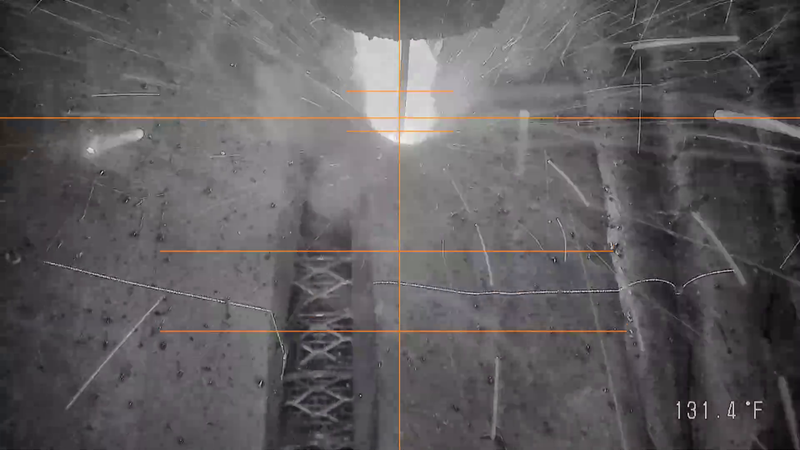

Camera Controller Crosshairs On

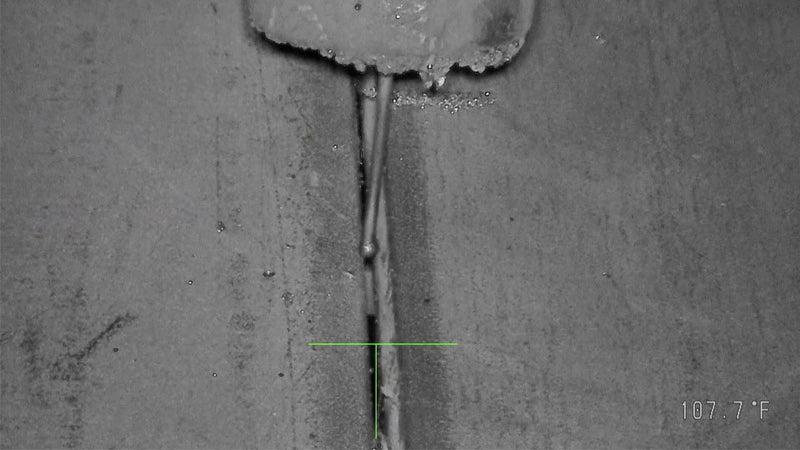

DART2 Mini Camera Controller Crosshair Color Option
