Advanced camera controller for F-style cables

For PIXI and DART2 dual or triple camera systems

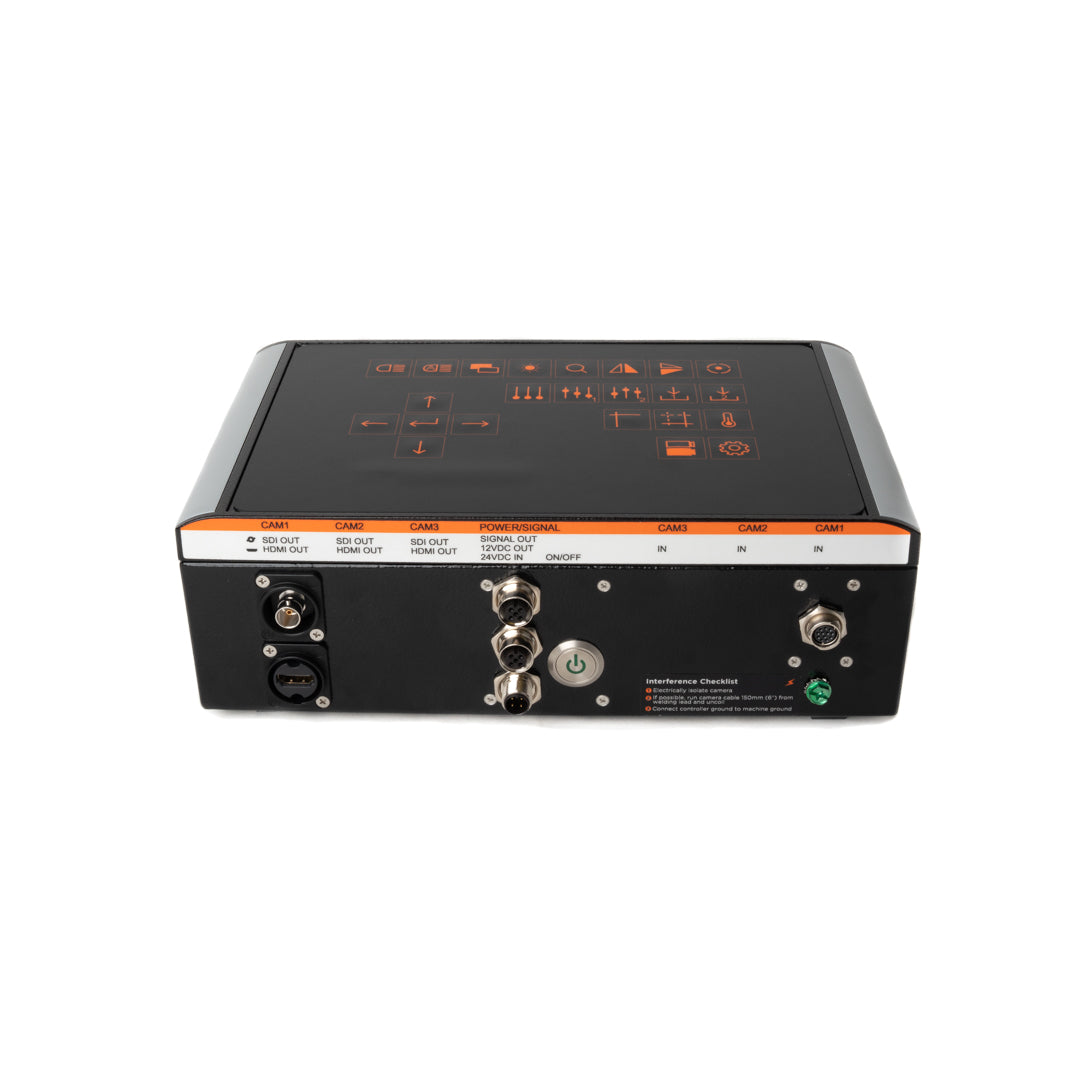

  • one camera advanced camera controller
1 1

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.
Firmware
Number of cameras
Max cable length
Price $3,300.00
Price $3,300.00
Sale Sold out
calculated at checkout.
SKU:  MT519089
Part Number:  PXC-1FC
View full details

Description

Our advanced camera controller is compatible with F-style configured MeltView® PIXI and DART2 cameras. The advanced controller is recommended for systems with custom features.

  • Control up to 3 cameras
  • Adjust LED brightness and camera parameters
  • Dual crosshairs, image flip, digital zoom
  • SDI and HDMI output for each camera
  • Save and access preferred camera settings with one-touch loading
  • Machine control of LEDs on/off

Specifications

Weight
Approx. 3 kg (6.8 lbs)
Dimensions
100 x 170 x 280 mm (4 x 6.7 x 11")
Consumption
~40 W without powering monitor
Power
24 VDC
Output
RS485 / 12VDC / Light tower
Video output (per cam)
HD - SDI and HDMI 1.4
Video format
1080 60i or 30p
Storage Temperature
0° - 70°C (32° - 158°F)
Operating Temperature
0° - 50°C (32° - 122°F)

Image Resources

DART2 Mini welding camera with crosshairs

DART2 camera with crosshairs on

Camera Controller Crosshairs On
