MeltView 24V international power supply

Wall-mounted power supply for MeltView camera controllers

Pricing

Quantity

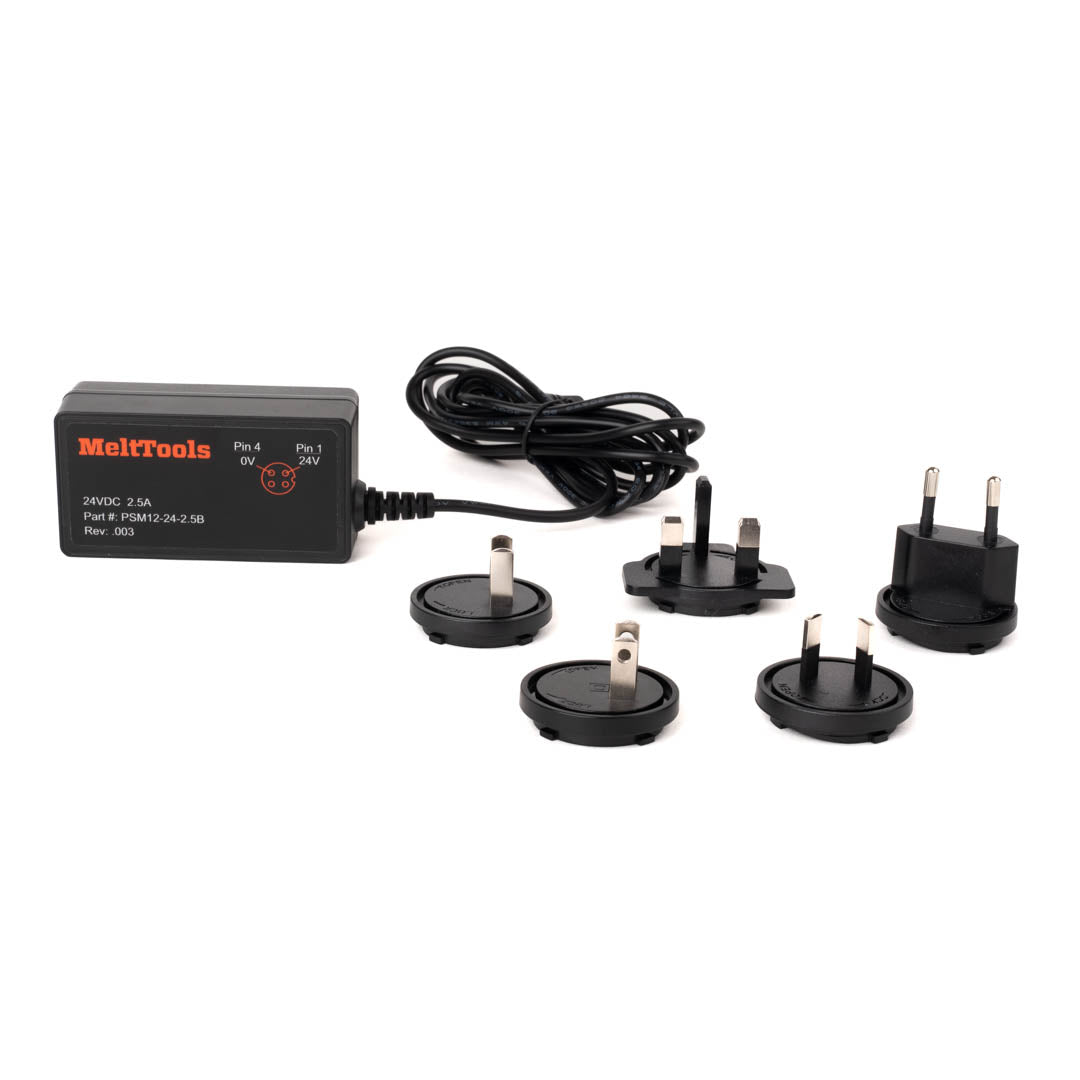

Plug-in power supply with world wide connectors, 2m (6.6ft) cord and straight M12-A female socket.

Used with our compact and advanced camera controllers for the following cameras:

  • DART2
  • PIXI
  • APEX3
  • MIRA3

Specifications

Nominal output voltage:

24.0 VDC

Max. output power:

60.0 W

Output current:

2.5 A

Input voltage

100-240 VAC

Input frequency:

50-60 Hz

IP Code:

IP20

Temperature:

0-50 °C

Connection to a controller/light:

M12 socket (4-pin), A-coded

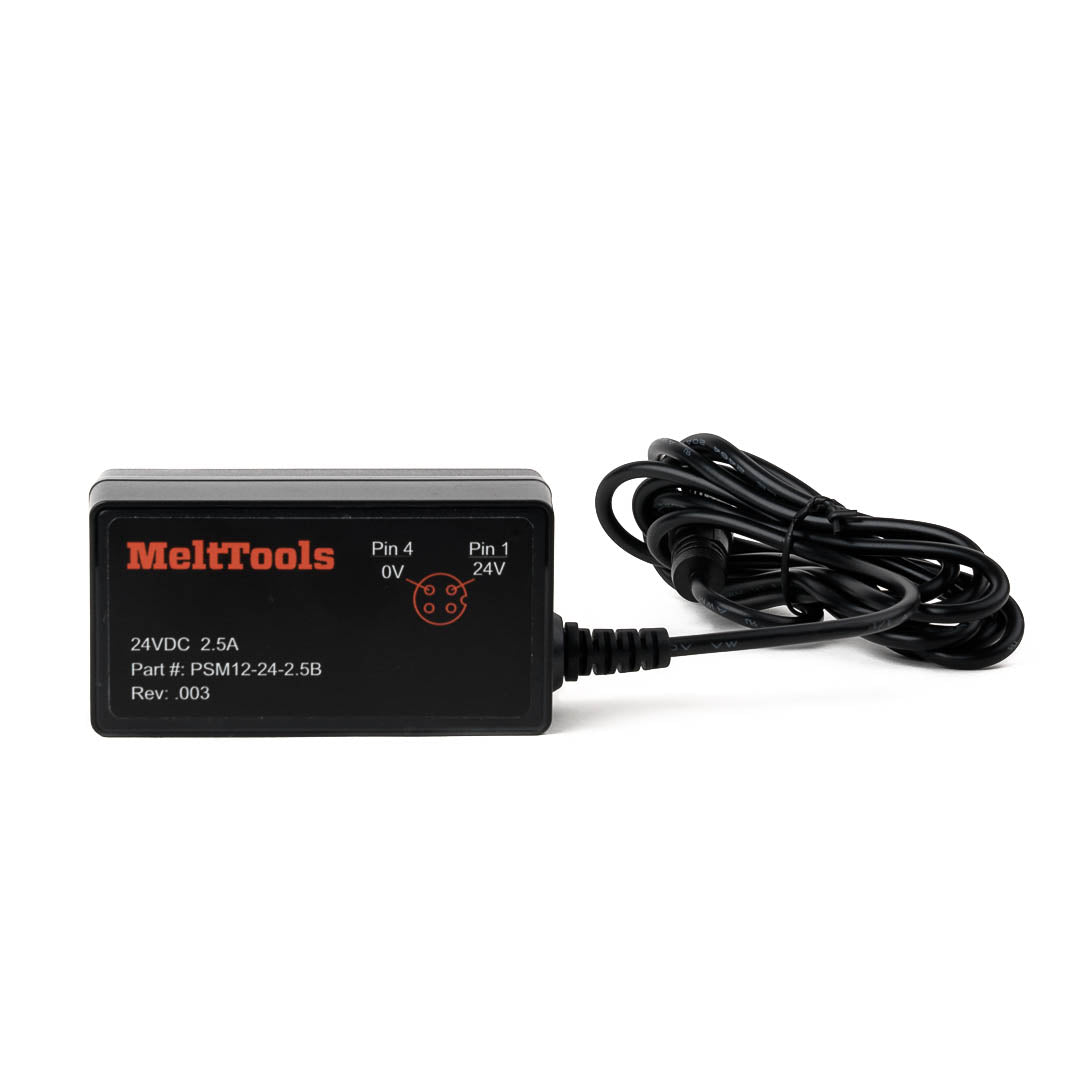

Pins

Pin1 +, Pin4 -

Dimensions:

92 x 47 x 35 mm / 3.6 x 1.9 x 1.4 "

Weight (net):

220 g / 7.6 Oz

Note:

Not resistant to oil and cooling and lubricating agents

Compliance

UL, FCC, UKCA, CE, TUV etc
