Advanced camera controller

For PIXI and DART2 dual or triple camera systems

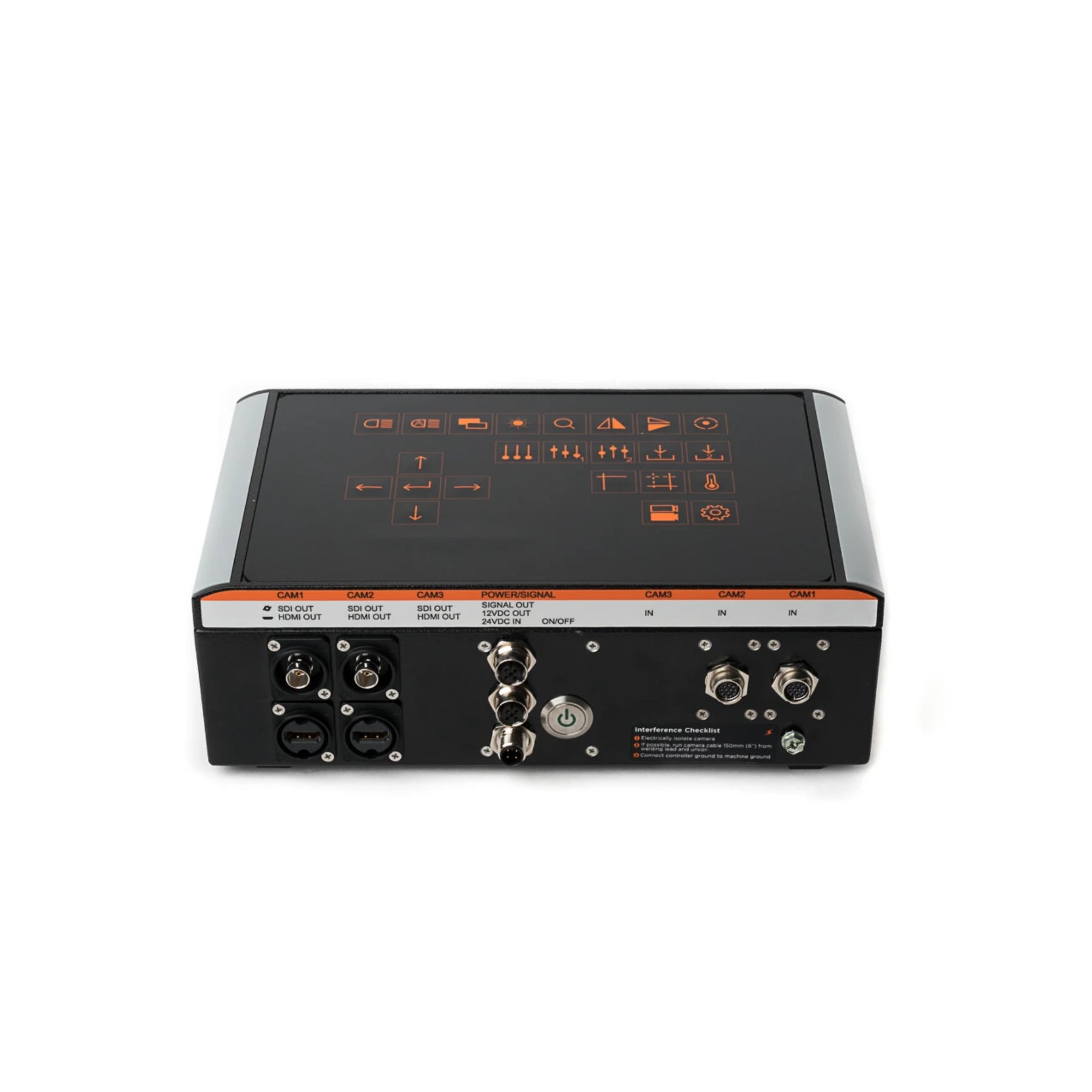

Advanced welding camera controller with two cameras

Advanced welding camera controller with one cameras

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.

Please select.

Firmware
Color
Monochrome

Number of cameras
1
2
3

Max cable length

30 m (98.4')

Pricing

Quantity

Our advanced camera controller is compatible with MeltView PIXI and DART2 cameras. The advanced controller is recommended for systems with custom features.

Control up to 3 cameras
Adjust LED brightness and camera parameters
Dual crosshairs, image flip, digital zoom
SDI and HDMI output for each camera
Save and access preferred camera settings with one-touch loading
Machine control of LEDs on/off

Specifications

Operating Temperature

0° - 50°C (32° - 122°F)

Storage Temperature

0° - 70°C (32° - 158°F)

Video format

1080 60i or 30p

Video output (per cam)

HD - SDI and HDMI 1.4

Output

RS485 / 12VDC / Light tower

Power

24 VDC

Consumption

~40 W without powering monitor

Dimensions

100 x 170 x 280 mm (4 x 6.7 x 11")

Weight

Approx. 3 kg (6.8 lbs)
