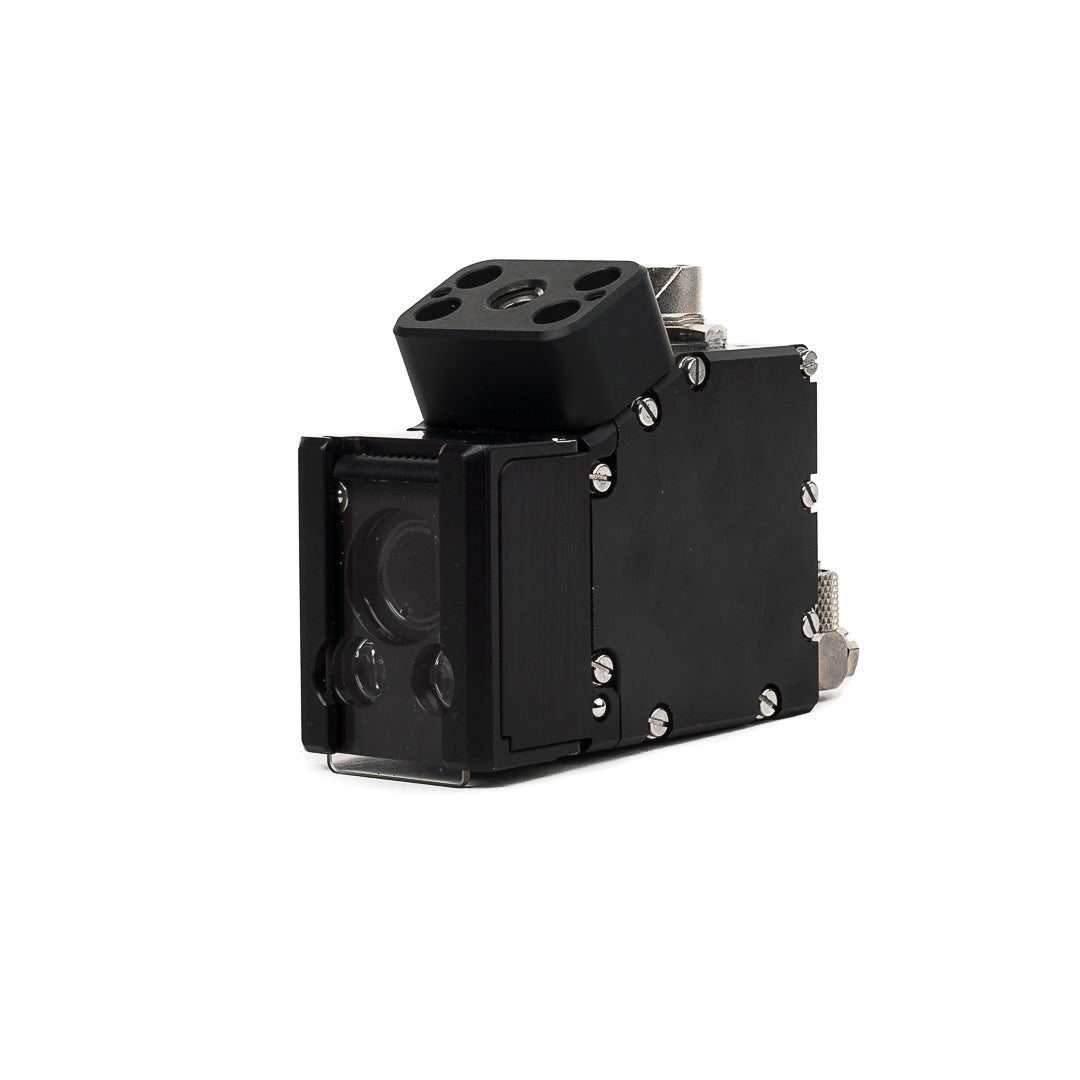

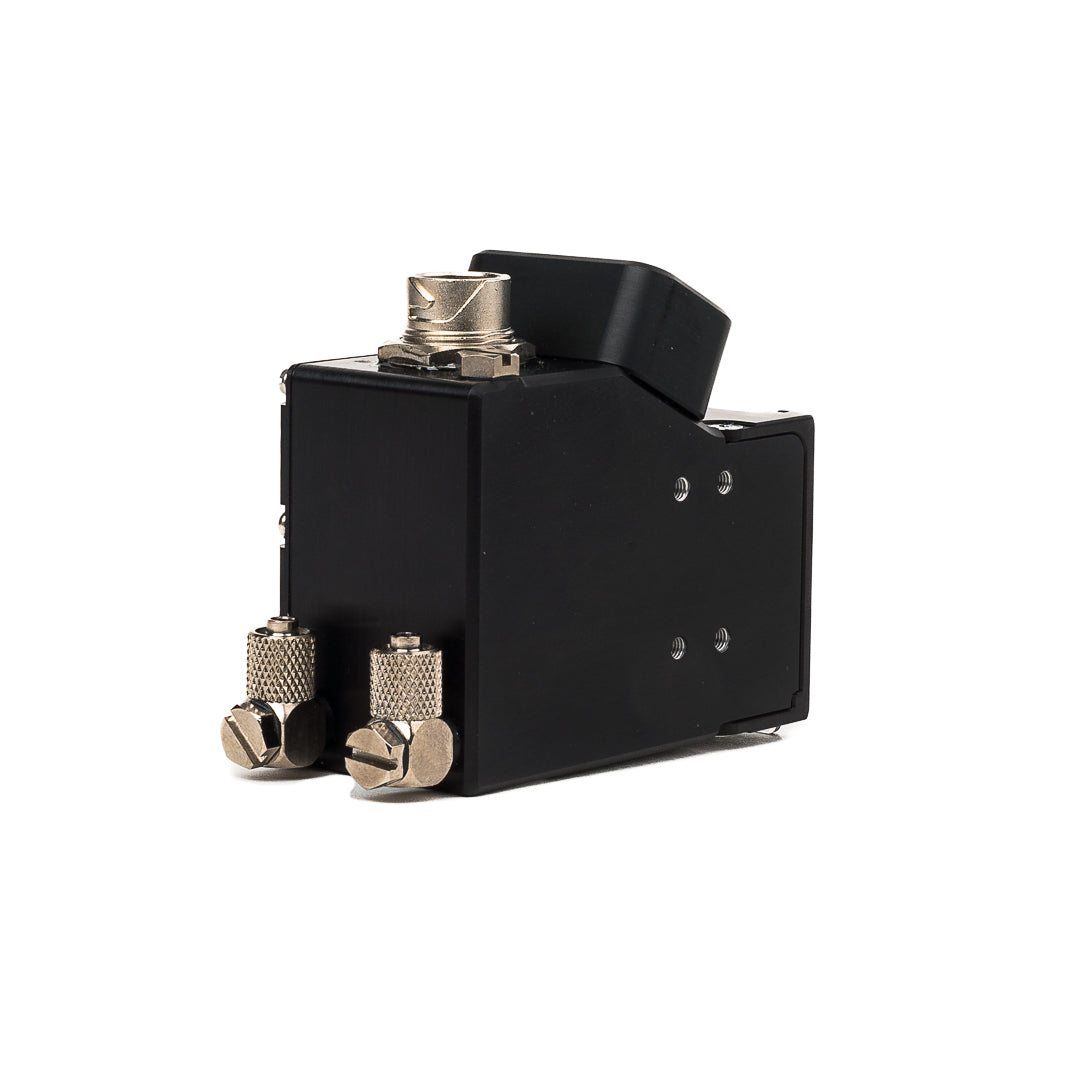

MeltViewTM DART2 Mini welding camera

Smallest DART2 camera for MIG, TIG, PAW and FCAW

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.

  • Optics

  • Lens

  • Cable

Pricing

Quantity

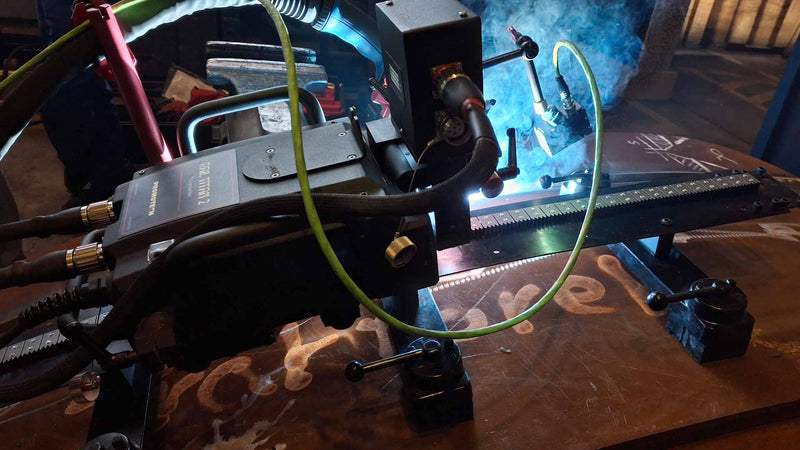

The MeltView DART2 Mini welding camera builds on the tradition of our flagship camera with smaller size and 3x higher resolution. The MeltView DART2 Mini is employed to monitor open-arc welding applications at working distances between 50-200 mm (2″ and 8″) at temperatures up to 300°C (570°F).

  • Shortest DART2 camera
  • Rich monochrome or color image of all open arc welding processes including GMAW, GTAW, FCAW, MCAW, PAW
  • Automatic switching between arc-on and arc-off modes
  • Spatter shield is removed and gas purge exhausts downward
  • Camera displays directly to monitor, no computer or software required
  • Adjustable dual crosshairs
  • Integrated cooling, protection and lighting
  • Requires a MeltView camera controller
  • Optional frame grabber or DVR for recording video

The MeltView DART2 welding camera is a longer version of this camera, which accommodates longer focal length lenses. Click here to learn more.



Welding Processes

Specifications

Temperature rating without cooling

0° - 50°C (32° - 122°F)

Temperature rating with cooling

0° - 300°C (32° - 570°F )

Operating environment

85% relative humidity

Illumination

Integrated LED


1920x1080

Video output signal

HD - SDI

Power

24 VDC

Consumption

approx. 500mW - configuration specific

Dimensions

32 x 40 x 87 / 100mm (1.3 x 1.6 x 3.4 / 3.9")

Weight

200 / 280g (0.44 / 0.62 lbs)
