MeltView® PIXI welding camera

Versatile camera ideal for LBW, PAW, SAW and TIG

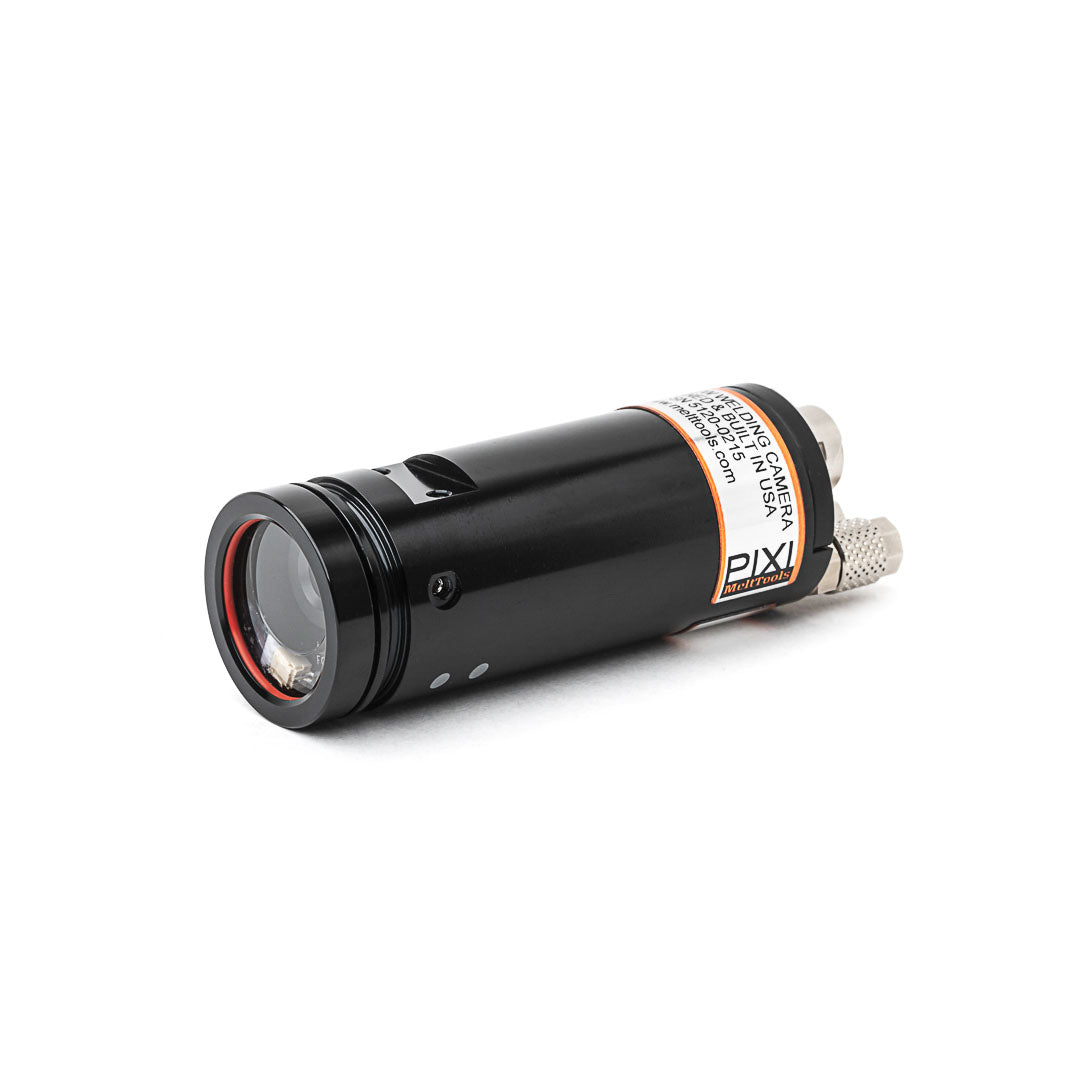

  • Front view of the MeltView® PIXI weld monitoring camera

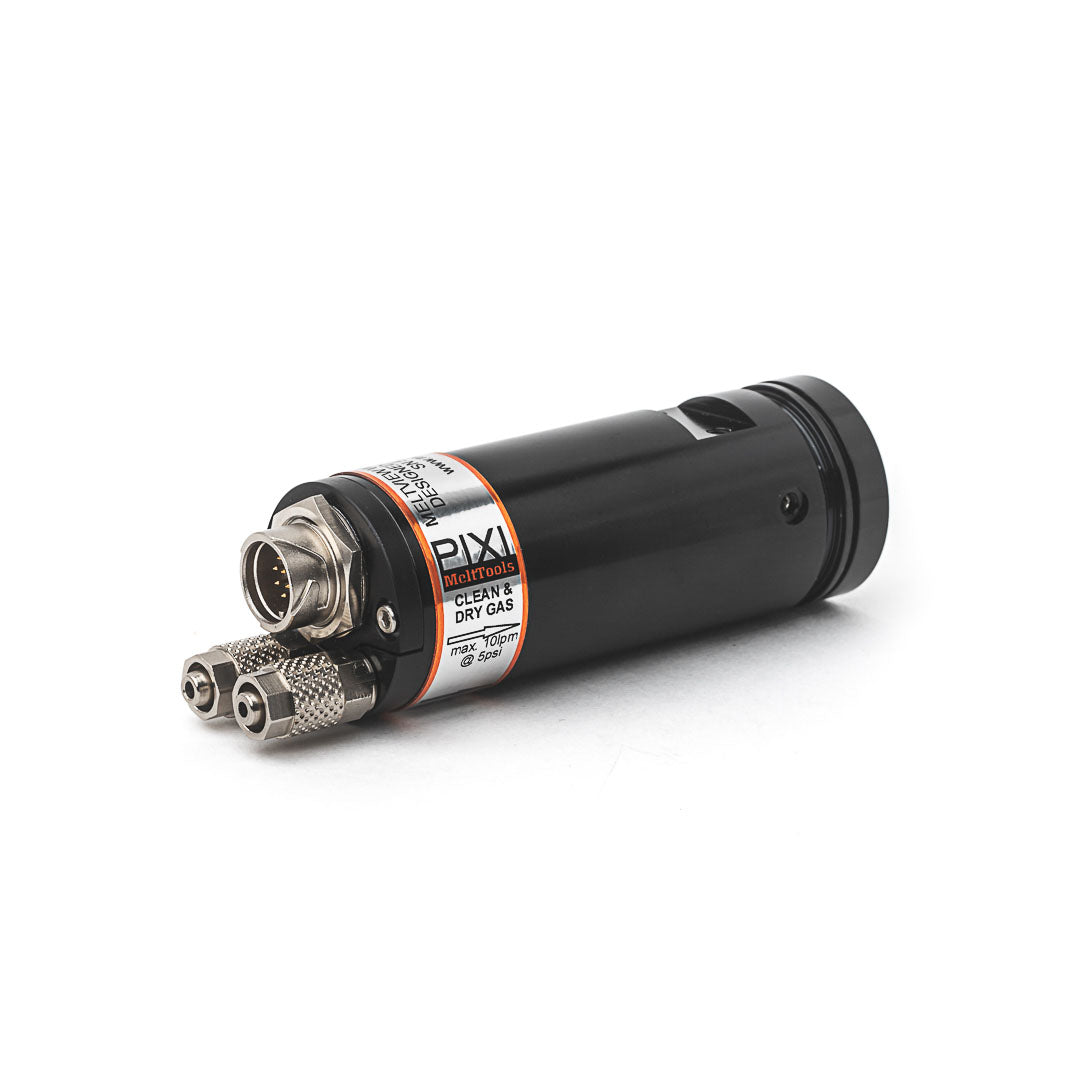

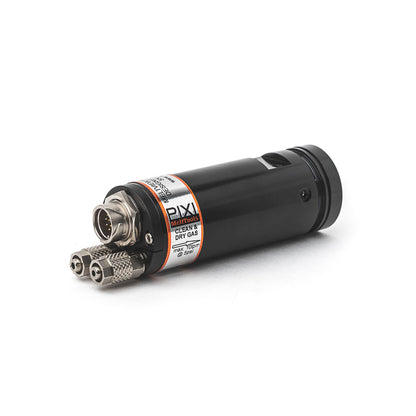

  • Back view of the MeltView® PIXI weld monitoring camera

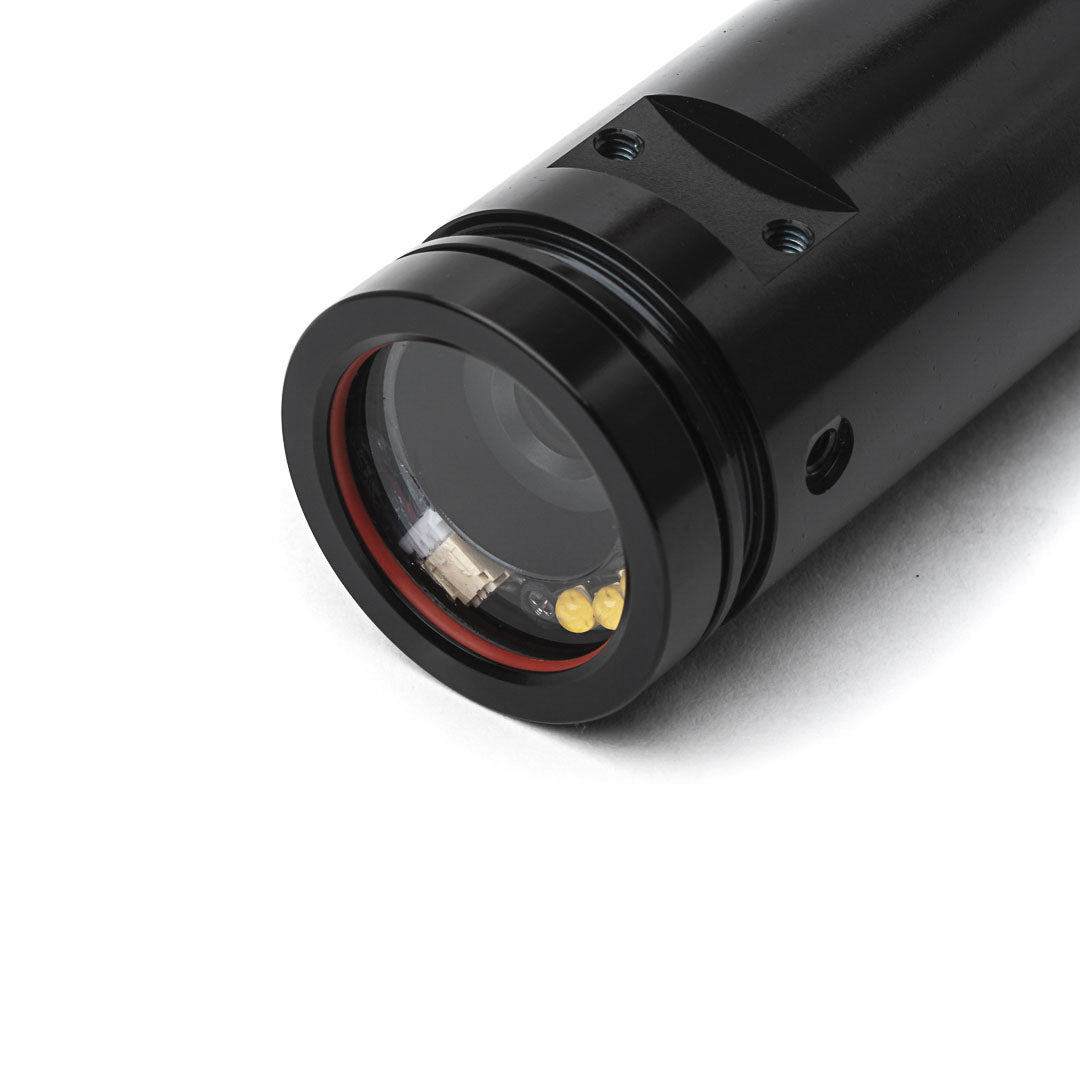

  • Up close view of the front of the MeltView® PIXI weld monitoring camera

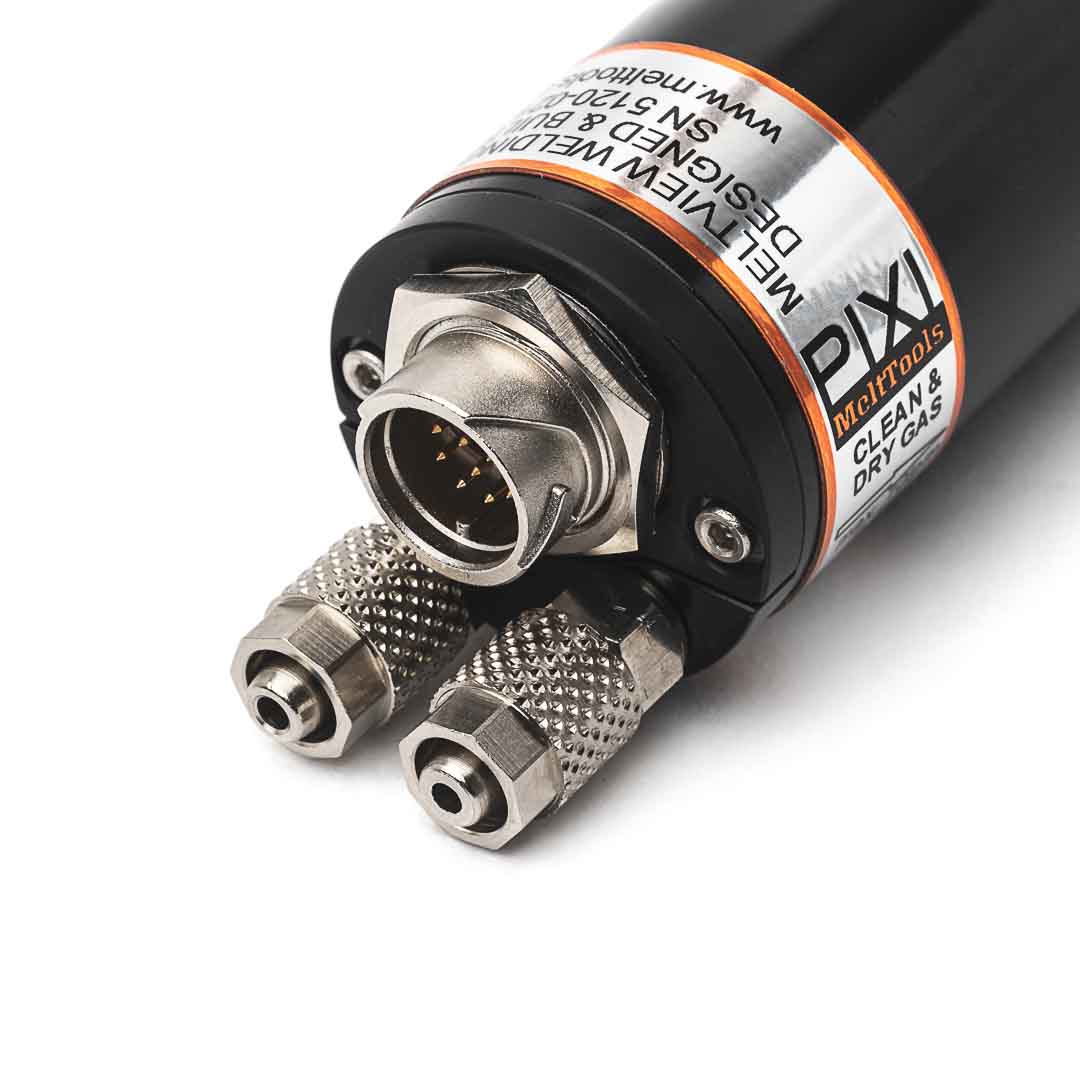

  • Up close view of the back of the MeltView® PIXI weld monitoring camera

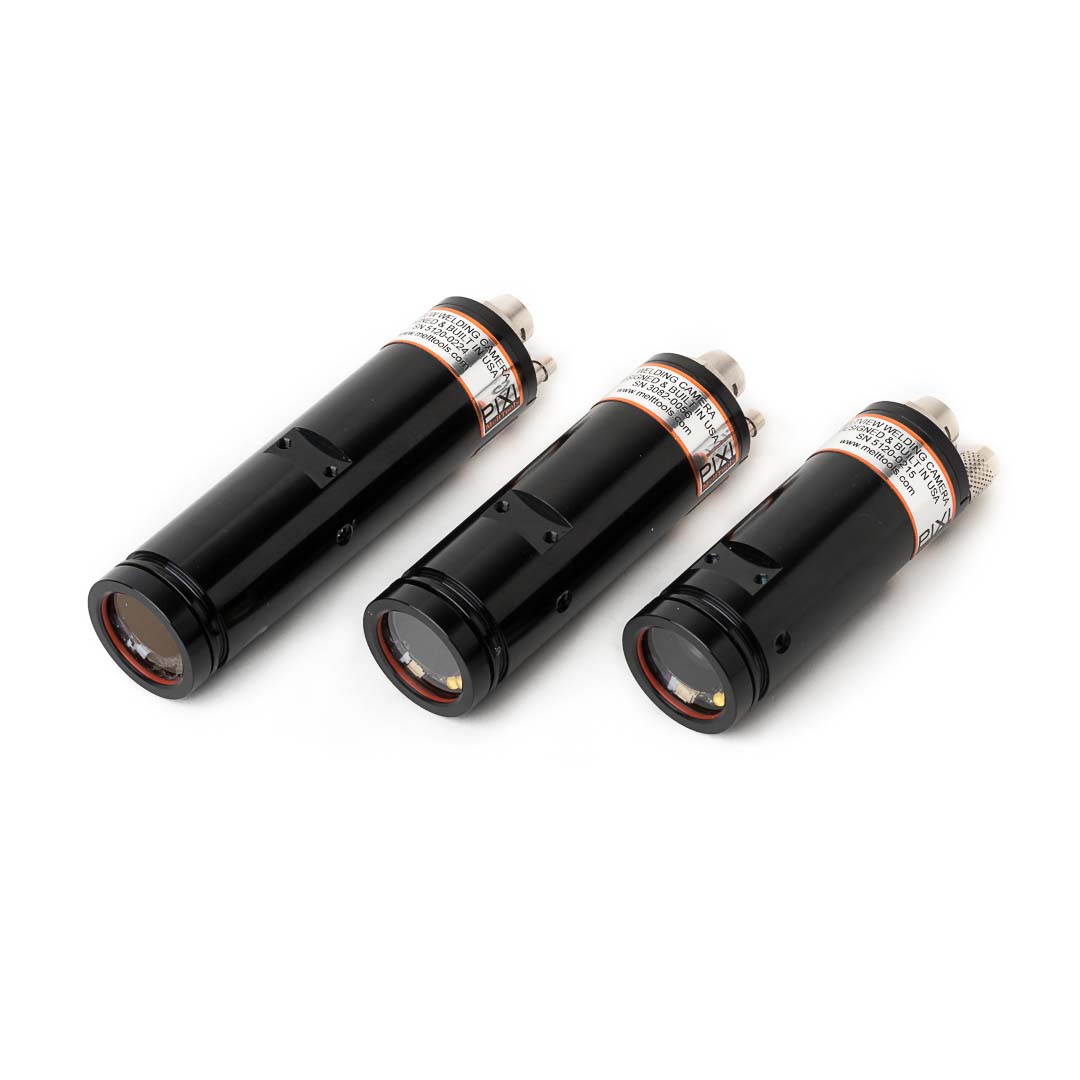

  • MeltView® PIXI weld monitoring camera in short, medium and long housings

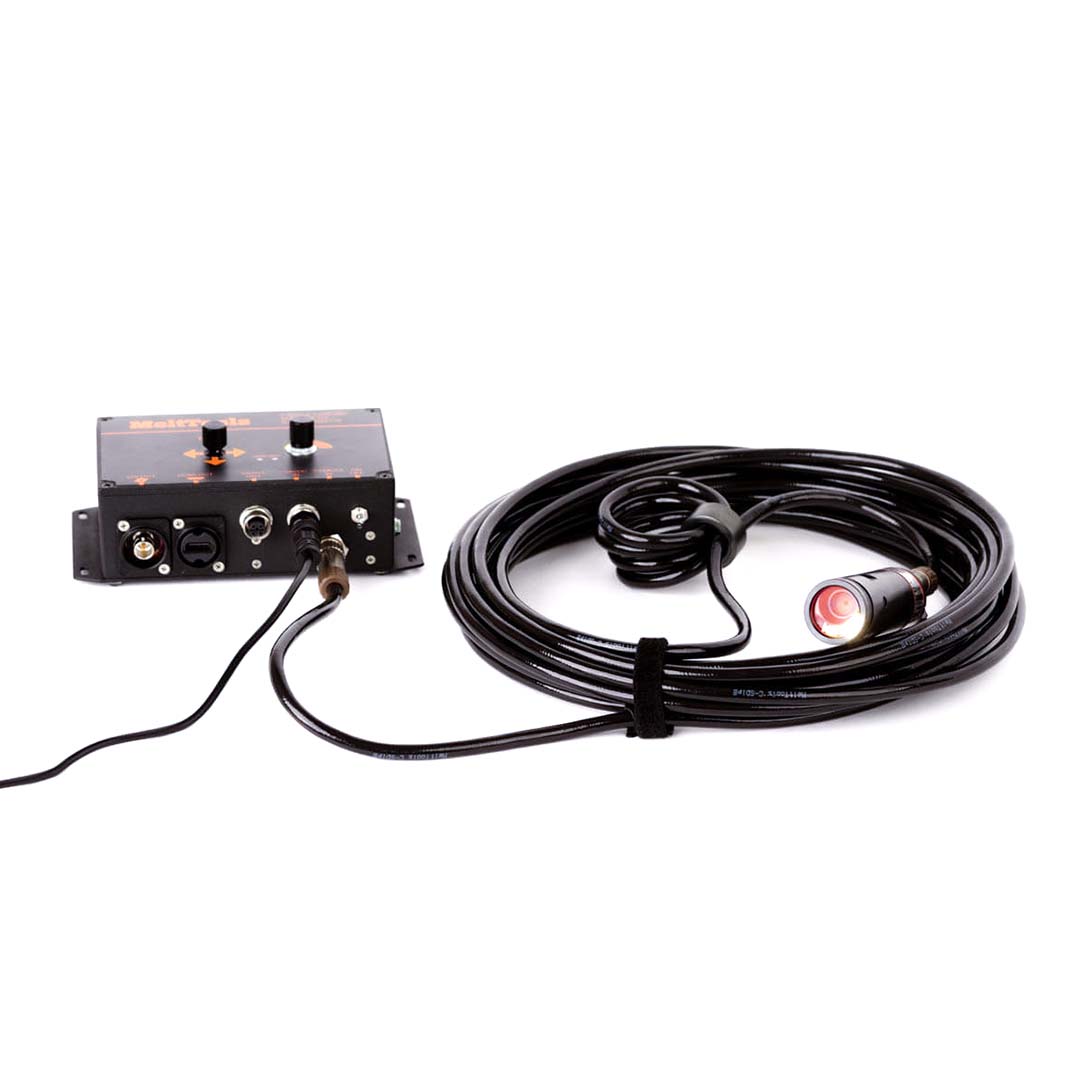

  • MeltView® PIXI weld monitoring camera plugged into the PXCC1 compact camera controller
1 6

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.
Optics
Lens
Cable Connector
Price $4,900.00
Price $4,900.00
Sale Sold out
calculated at checkout.
SKU:  MT519966
Part Number:  PX1-0B08-X
View full details
Use for GTAW
Use for PAW
Use for LBW
Use for SAW

Description

The MeltView® PIXI is a ruggedized welding camera specifically engineered to provide high-definition monitoring in confined and demanding environments. The PIXI measures 30mm (1.8”) in diameter and weighs approximately 120g (4.23oz). The camera's size makes it ideal for challenging applications where space is limited, including cladding, orbital tube welding, and Submerged Arc Welding (SAW).

Utilizing High-Dynamic Range (HDR) imaging, the MeltView® PIXI captures both the blinding intensity of the welding arc and the critical details of the surrounding weld pool with high resolution.

  • Seamless Transitions: The camera automatically switches between arc-on and arc-off modes.
  • Direct-to-Monitor Viewing: Operators can directly monitor the weld at 1920 x 1080 HD resolution. No separate computer or software is required.
  • Near-Zero Latency: HD-SDI output provides a direct-to-monitor setup for immediate, real-time operator feedback.

The PIXI is built for harsh industrial conditions. With its integrated water cooling system, it can operate in temperatures up to 400°C (752°F). The camera can be positioned as close as 2" (51 mm) from the weld. The PIXI is recommended for GTAW (TIG), PAW, SAW, and LBW applications.

Key Features:

  • Image Quality: Rich monochrome or color imaging for GTAW, PAW, LBW, and SAW processes
  • Optics: Automatic switching between arc-on and arc-off modes
  • Plug-and-Play: Displays directly to an HD monitor, no PC or software needed
  • Compact Size: 30Ø mm diameter allows for use in compact spaces
  • Integrated Lighting and Cooling: All models offer integrated lighting, water and air cooling to reduce bulky setups
  • Flexible Viewing: Models available with 45° and 90° optics to suit your specific setup
  • Precision Targeting: Adjustable dual crosshairs for alignment
  • Customizable Transmission: Standard X-coded or F-style cables, with wireless, fiber, and dual cable options available

Note: The PIXI camera requires a MeltView® camera controller. Optional frame grabber or DVR is available for recording and streaming video.

Specifications

Temperature rating without cooling
0° - 50°C (32° -122°F)
Temperature rating with water cooling
0° - 400°C (32° - 752°F)
Operating environment
85% relative humidity
Illumination
Integrated LED
Video output signal
HD-SDI
1920 x 1080
Power
24 VDC
Consumption
approx. 500 mW - configuration specific
Dimensions
30 x ~ 108 mm (1.2 x 4.3")
Weight
approx. 120 g (0.26 lbs)

Image Resources

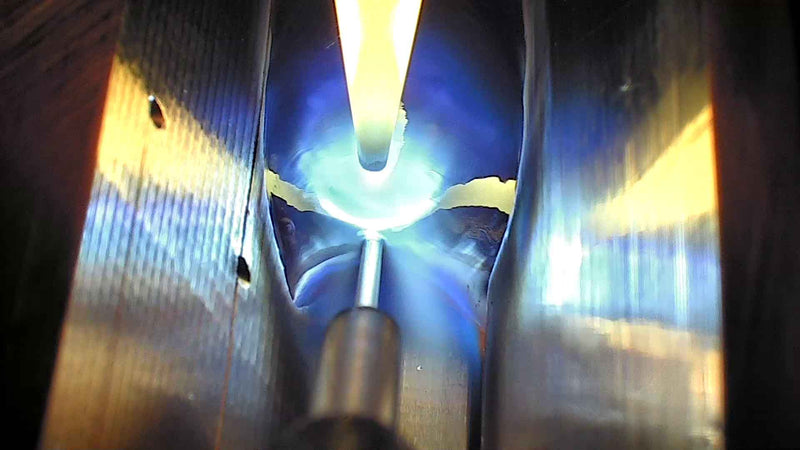

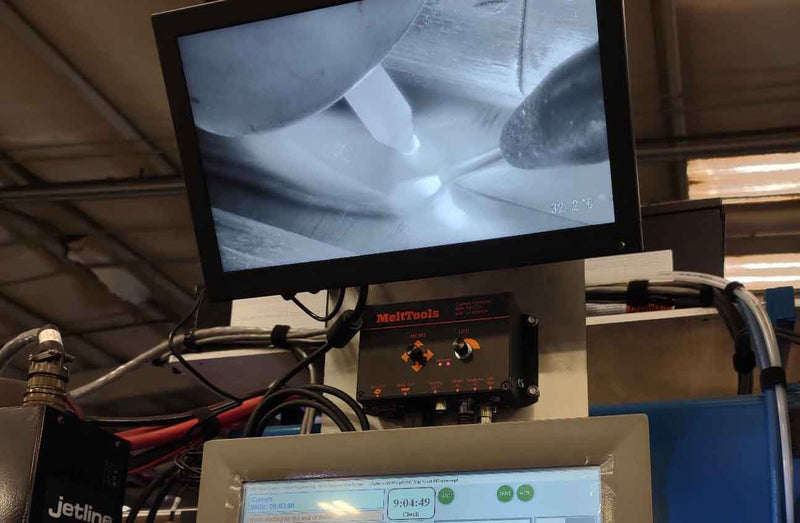

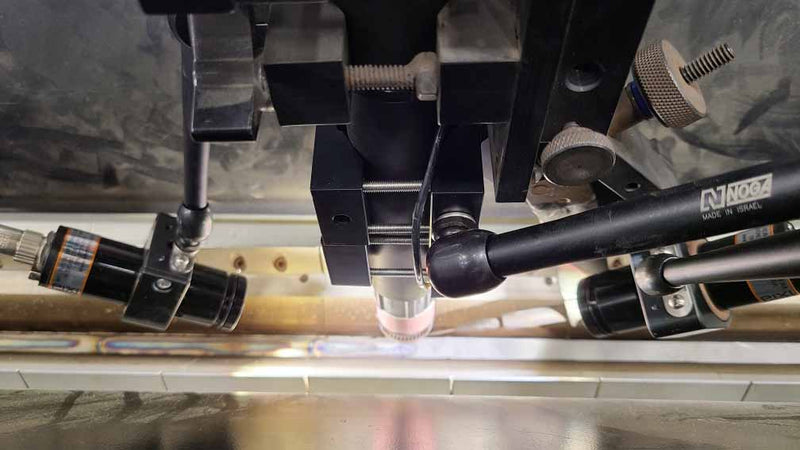

TIG Color PIXI Groove

Dual PIXI

PIXI Seamer

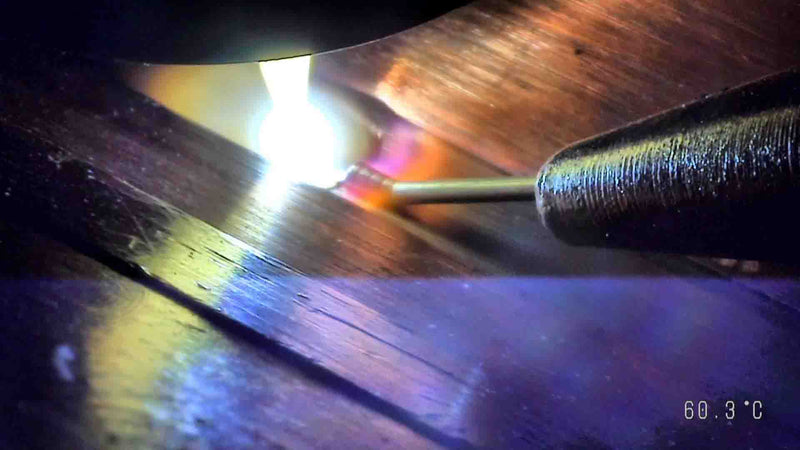

PIXI Color Tig

Video Resources

The MeltView® PIXI welding camera, optimized for cladding

The MeltView® PIXI welding camera, optimized for cladding

MeltView® PIXI SAW

MeltView® PIXI SAW

Monitor plasma powder cladding with the MeltView® PIXI

Monitor plasma powder cladding with the MeltView® PIXI

The MeltView® PIXI welding camera, in rich color

The MeltView® PIXI welding camera, in rich color

Frequently Asked Questions

We recommend a monochrome image for the clearest image across all welding processes. A color image is sometimes preferred for TIG welding / GTAW, since TIG is relatively simple to image and color can provide information about the weld.
No. Our HD-SDI camera line features a direct-to-monitor setup, providing 1920 x 1080 resolution feed with near-zero latency, eliminating the need for a PC or software. A MeltView® camera controller is required to interface with and power the camera.
For SAW or inspection, color A optics are selected. Monochrome (B and D) cameras provide greater light sensitivity, increased arc suppression and sharper images than color open-arc (C) cameras. Monochrome cameras are ideal for tracking applications where a wide field of view is essential. For some TIG/PAW and LBW applications, a color (C) image may be preferred. A: Color suitable for SAW or inspection systems. B: Monochrome suitable for most processes (GMAW, FCAW, GTAW, PAW) to provide the highest arc attenuation. C: Color suitable for GTAW and PAW. Generally recommended for tungsten definition and monitoring of in-groove welds. D: Monochrome image for LBW configured to view the positioning laser.
Without cooling, the PIXI operates safely up to 50°C (122°F). When utilizing the integrated water and air knife cooling options, it has been proven in environments up to 400°C (752°F).
Because of its small design (30Ø mm), the PIXI can fit into tight internal diameters and confined spaces where traditional welding cameras cannot reach, allowing for high-definition monitoring of internal pipe welds and cladding.

Recommended Solutions

MeltView® PIXI X-coded System

This is a system note, and below you will see notes for groups. Enjoy reading all the notes.

X-Coded Camera cables Recommended

Cameras with an X-coded cable connector can only operate using X-coded cables. X-coded cables are offered with straight or right angle connectors and with standard or drag chain options. X-coded extension cables are also listed.

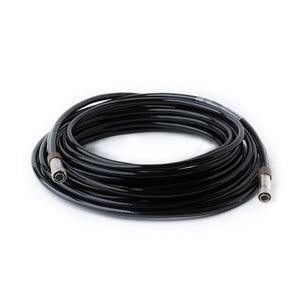

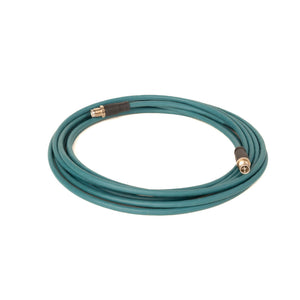

X-coded camera cable
X-coded camera cable

SKU: MT122399

X-coded camera cables provide power, control and video signals from our MeltView® SDI welding cameras to our compact or advanced camera controllers. Standard lengths shown Right angle up connectors available in some lengths... View product
from $200.00

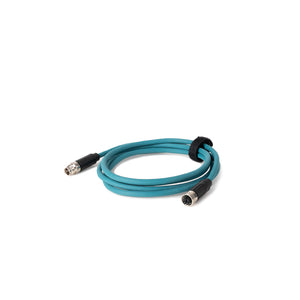

X-coded extension cables
X-coded extension cables

SKU: MT122335

X-coded extension cables have male and female connectors and can be used to extend the main male/male X-coded camera cable. Extension cables save time by eliminating the need to re-run the main cable down cable tracks if a f... View product
from $40.00

Controller: X-coded Recommended

X-coded camera controllers can be used for cameras with an X-coded cable connector. Compact controllers are offered for X-coded camera systems.

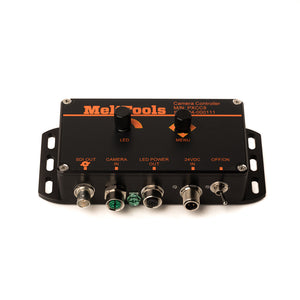

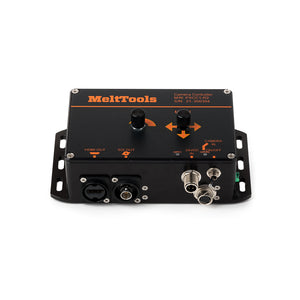

Compact camera controller for X-coded cables
Compact camera controller for X-coded cables

SKU: MT519055

Our PXCC8 compact camera controller is recommended for systems with a single camera. This controller is for X-coded cables with a maximum length of 25 m (82') and provides HD-SDI video output. The camera controller provides ... View product
$1,800.00

PIXI camera mounts Recommended

Listed are different mounts for the PIXI camera. The HF isolation mount can be used with all listed mounts and is highly recommended to electronically isolate and protect the PIXI camera.
HF isolation ring mount
HF isolation ring mount

SKU: MT339594

Isolation ring mount for the PIXI and APEX3 welding cameras. Phenolic ring electrically isolates camera from welding equipment 30 mm ID Model HF0R3T is compatible with our free arm camera mounts; mounting screw 1/4-20 UNC M... View product
$128.00
Free arm camera mount (1/4" adapter)
Free arm camera mount (1/4" adapter)

SKU: MT155041

Our free arm camera mount in four lengths allows for precise camera positioning. Mount with magnet base or torch clamp Adapter works with MeltTools' isolation blocks (DART, DART2) or isolation ring mount (PIXI, APEX3) Exten... View product
from $360.00
Fixed arm mounts, single
Fixed arm mounts, single

SKU: MT155149

Our fix arm camera mount in multiple lengths provides adjustable positioning of the camera along the arm axis. Phenolic material electrically isolates camera Available in 150 mm (6") or 250 mm (10")  Easily slide camera al... View product
from $250.00
Fixed arm mount, double, with torch clamp
Fixed arm mount, double, with torch clamp

SKU: MT151021

Our double fix arm camera mount provides additional length and stability compared to our single fix arm mount, and the option to add one or two laser diodes in line with the camera or additional sensors.  Electrically isola... View product
from $440.00

Monitors

Monitors that can be used with our direct-display camera system. BNC cables are used to connect the camera controller to the display monitor.

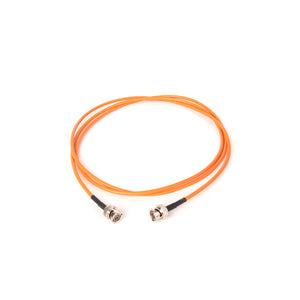

BNC male/male coaxial cable
BNC male/male coaxial cable

SKU: MT122262

BNC cable to display SDI video to SDI monitor BNC cable to supply video to SDI framegrabber Compatible with advanced and compact camera controllers
$20.00
15.6" monitor
15.6" monitor

SKU: MT133069

This 15.6" HD-SDI monitor is encased in a durable metal housing. It features an HD-SDI loop-out, allowing for integration with other devices. As a simple yet effective display solution, this monitor is perfectly sized and di... View product
$730.00
21.5" 3G SDI Quad-split broadcast monitor
21.5" 3G SDI Quad-split broadcast monitor

SKU: MT133032

This 21.5" quad-split broadcast monitor can be used to monitor 1, 2, 3 or 4 1080P video signals, making it easy to monitor multi-camera systems at a single source.
$820.00
7" HDMI 3G-SDI Sunlight readable monitor
7" HDMI 3G-SDI Sunlight readable monitor

SKU: MT133055

This 7" monitor has been engineered for outdoor settings / high-brightness environments with a 1800 nit panel. It features a 4K HDMI 1.4 input, 3G SDI and pass-through options for compatibility with a range of devices and sy... View product
$600.00
7" Dual SDI monitor 3RU rackmount
7" Dual SDI monitor 3RU rackmount

SKU: MT133097

The dual 7" SDI rackmount monitor is a compact unit for dual weld monitoring. It features 2 x 7" IPS panels with independent HDMI and 3G SDI connectivity, and it is mountable in a 19" 3U rack system.
$600.00

Spare Parts

Replacement parts: MeltView® PIXI camera

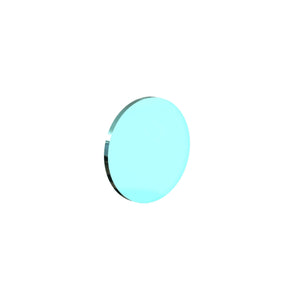

PIXI anti-reflective sealant glass
PIXI anti-reflective sealant glass

SKU: MT519276

Circular sealant glass for PIXI welding camera with straight (0°) optics. Fits camera models PX1 and PX2, not PX0. Diameter: 25 mm (0.9") Thickness: 1.5 mm (0.03") Approx... View product
from $80.00

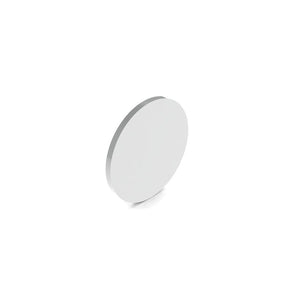

PIXI laser welding sealant glass
PIXI laser welding sealant glass

SKU: MT519278

Circular laser sealant glass for PIXI welding camera with straight (0°) optics. Fits camera models PX1 and PX2, not PX0. Laser welding sealant glass replaces antireflectiv... View product
from $35.00

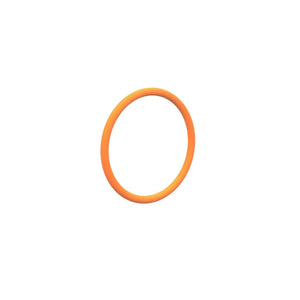

PIXI O-ring
PIXI O-ring

SKU: MT519616

Replacement O-ring for PIXI welding camera with straight (0°) optics. Fits models PX1 and PX2, not PX0.
from $50.00

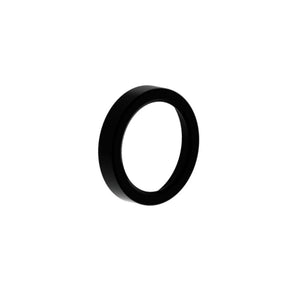

PIXI lock ring front cover
PIXI lock ring front cover

SKU: MT519783

Lock ring front cover for for MeltView® PIXI PX1 and PX2 body welding cameras with straight (0°) optics. Diameter of 30 mm (1.1")
$35.00

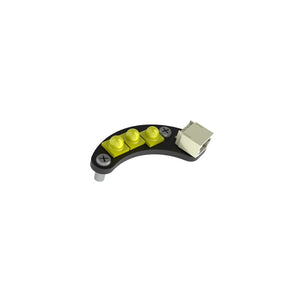

PIXI LED module
PIXI LED module

SKU: MT514023

Replacement LED board for PIXI welding camera, according to PIXI camera body (PX0, PX1, PX2) and optical angle (0°, 45°, 90°).
$90.00

Request a Solution Review

Get a free expert review to confirm you have the correct products for your project.
