HD-SDI video DVR and IP streaming

Record and stream video

  • Memory capacity

Pricing

Quantity

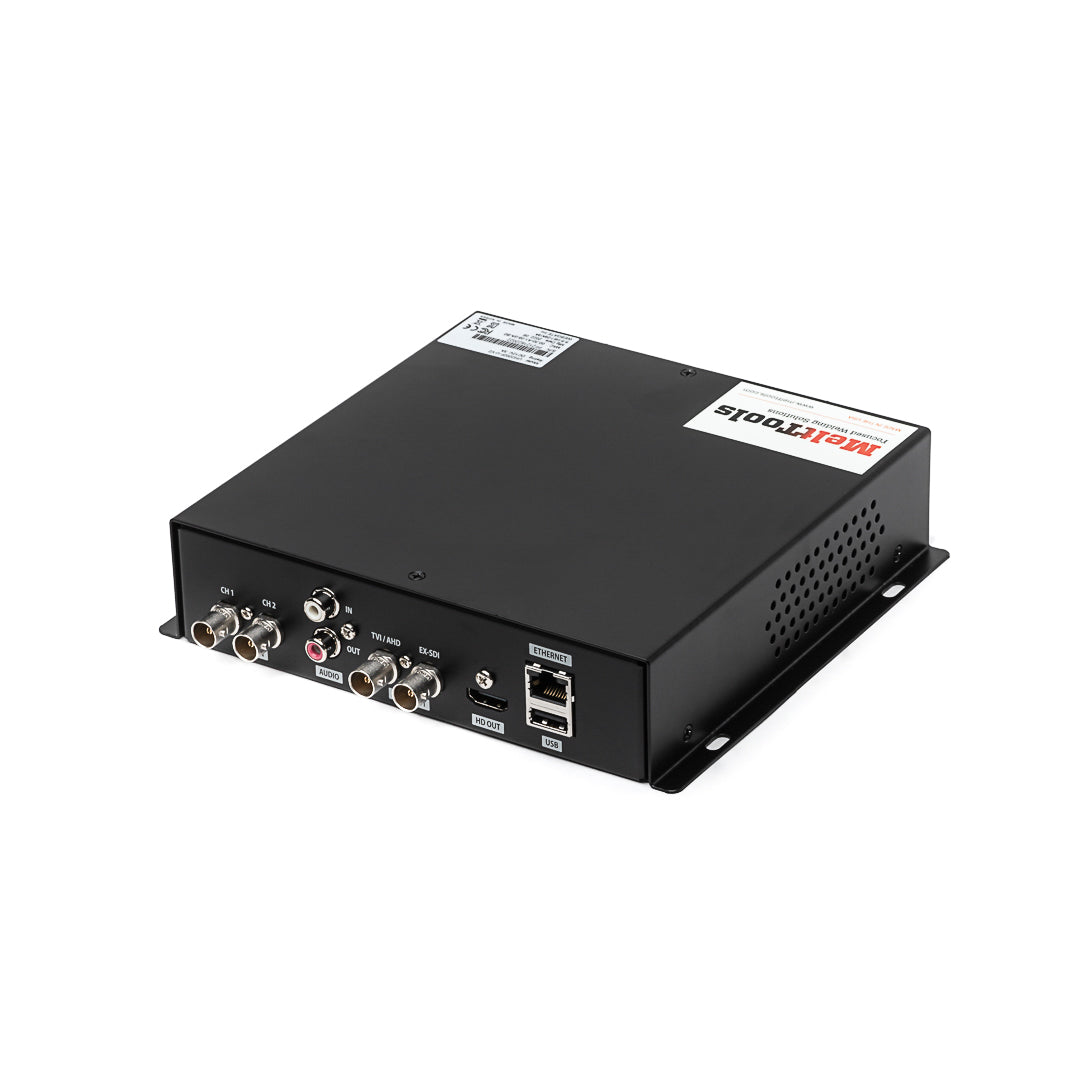

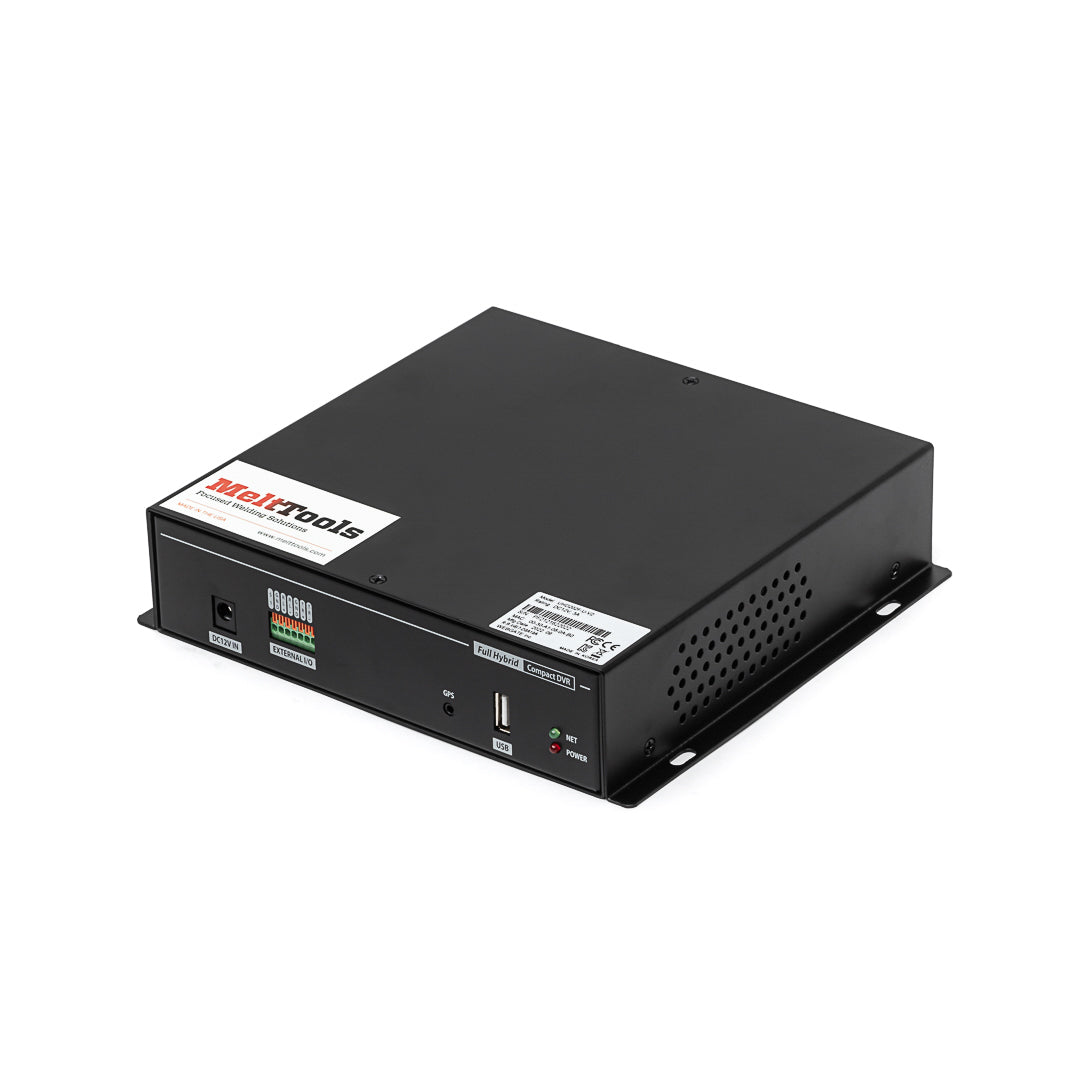

DVR with two camera input for use with the DART2, MIRA3 and PIXI cameras.

  • Continuously record welding video
  • Quality assurance tool with motion detect and contact trigger record
  • 1 TB hard drive
  • Built-in high fidelity IP encoder to stream video over Ethernet

Specifications

Resolution:

1920×1080

Frame Rate:

30fps

Video output Resolution:

HDMI : 3840×2160, 1920×1080
SDI : 1920×1080

Compression:

H.264

Mode:

Normal/Event Record, Schedule/Event Record

Network Interface:

1000Mbps

Streaming:

1x H.264, High resolution and 1x H.264 Normal resolution

Storage devices:

1 internal SATA HDD - 1 TB

Sensor input:

1 Dry-contact

Relay output:

1x Relay

Controller:

Mouse

Dimensions:

194 × 190 × 44 mm  (7.6 x 7.5 x 1.7")

Weight:

1.2 kg

Operating Temperature:

0°C ~ 45°C (32°F~ 113°F)

Operating environment:

80% relative humidity

Power:

DC12V / 3A

Power Consumption:

~ 7.1W
