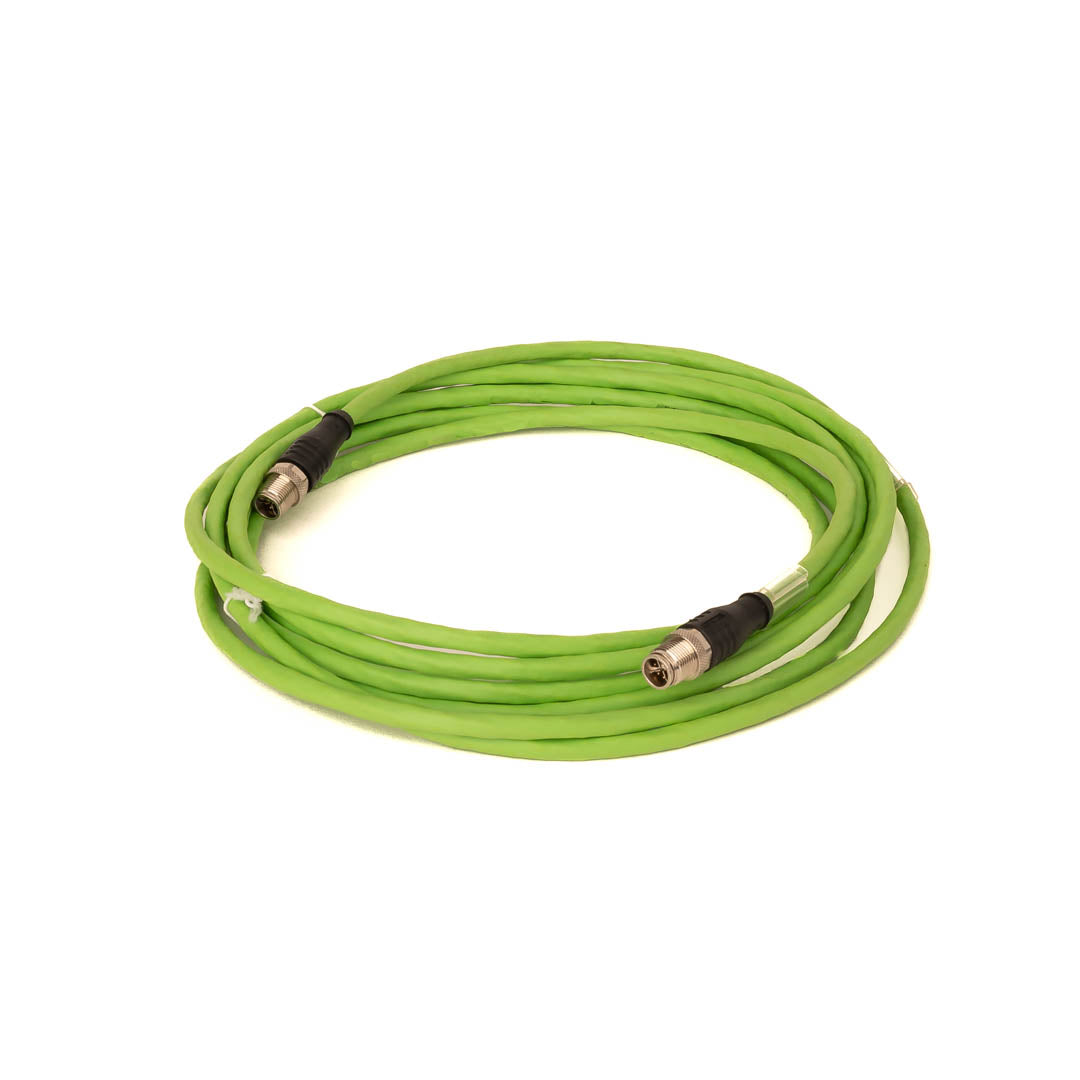

X-coded camera cable

For DART2, PIXI, APEX3 and MIRA3 welding cameras

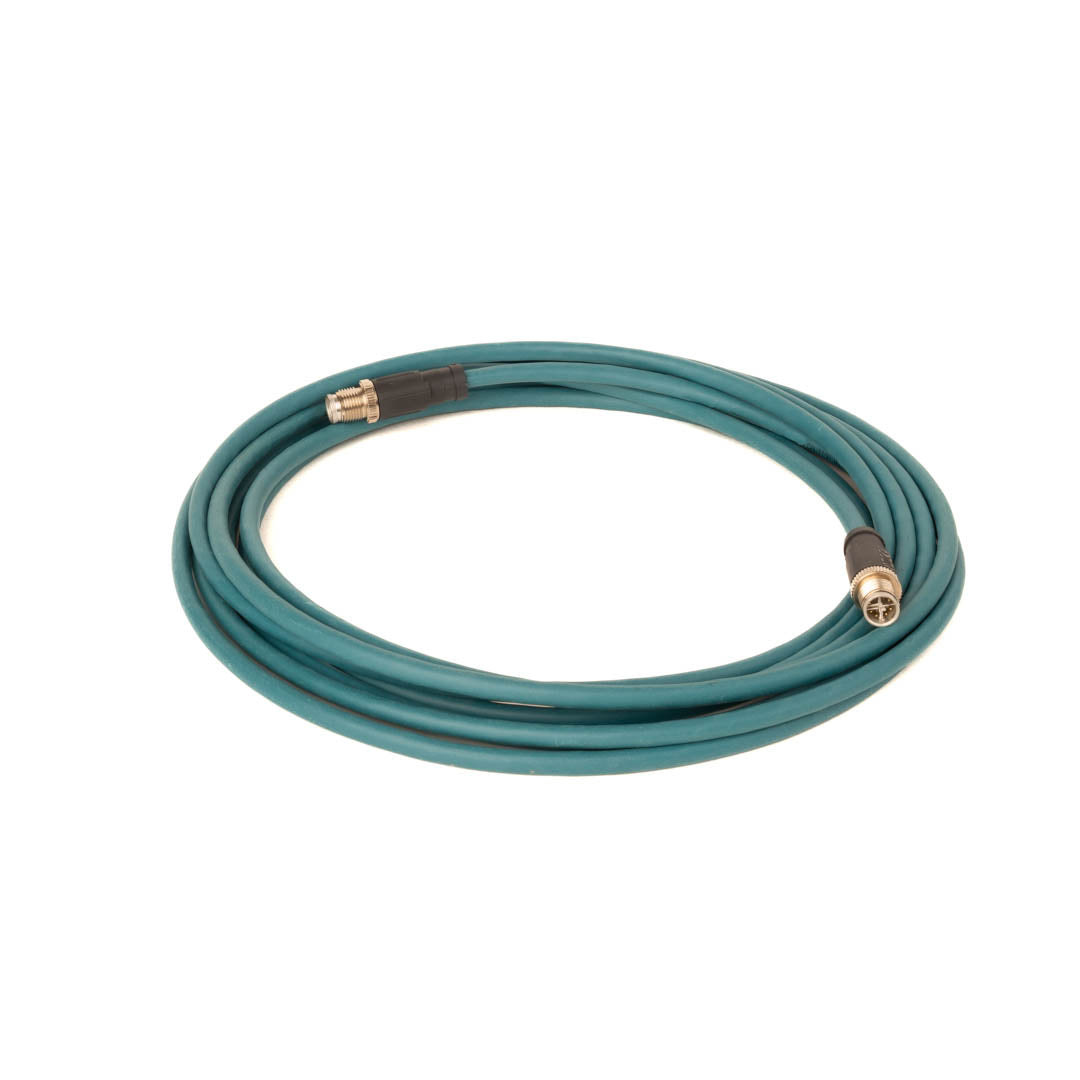

  • 5m X-coded M12 camera cable
1 1

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.
Length
Connector at camera end
Grade
Price $200.00
Price $200.00
Sale Sold out
calculated at checkout.
SKU:  MT122399
Part Number:  CM12E002
View full details

Description

X-coded camera cables provide power, control and video signals from our MeltView® SDI welding cameras to our compact or advanced camera controllers.

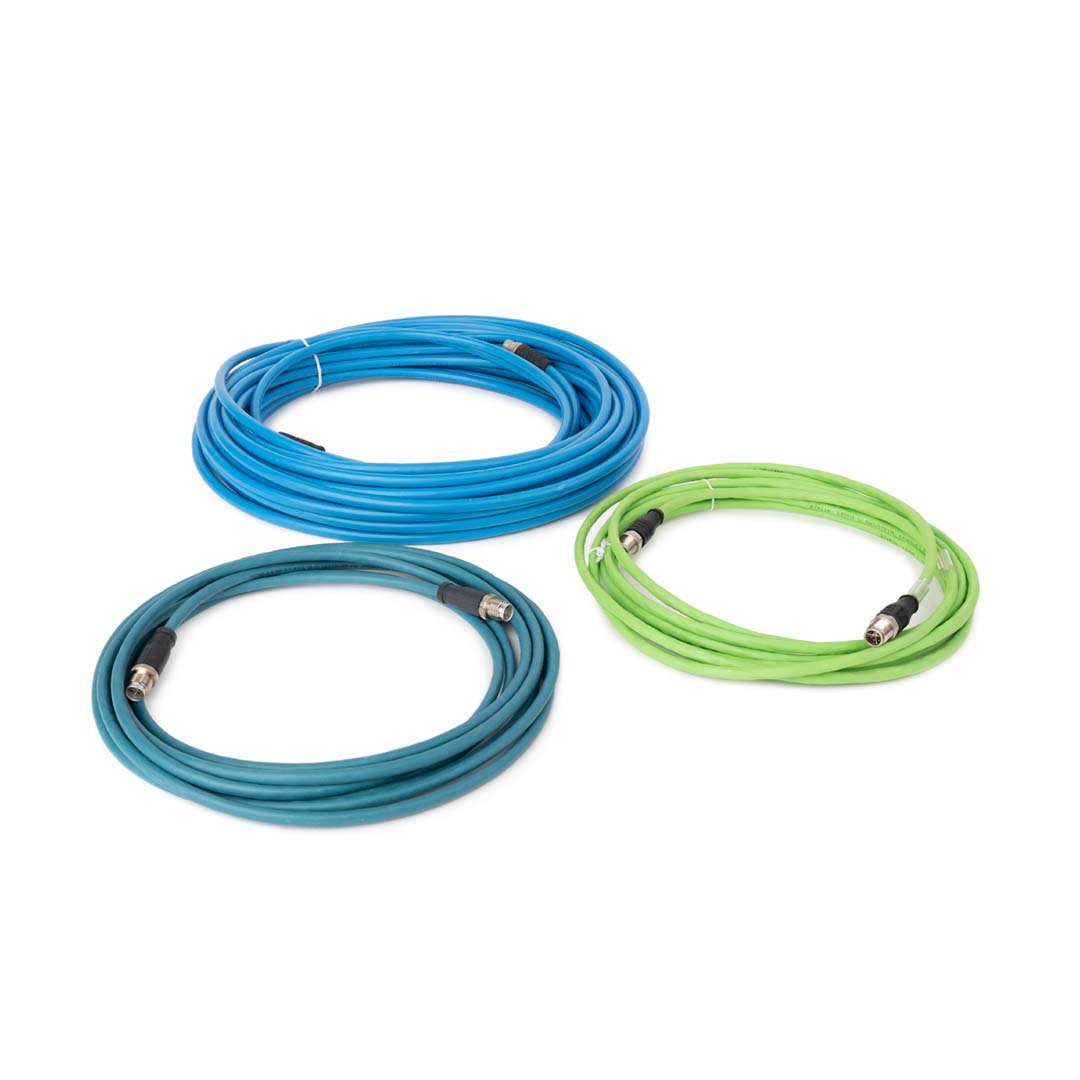

  • Standard lengths shown

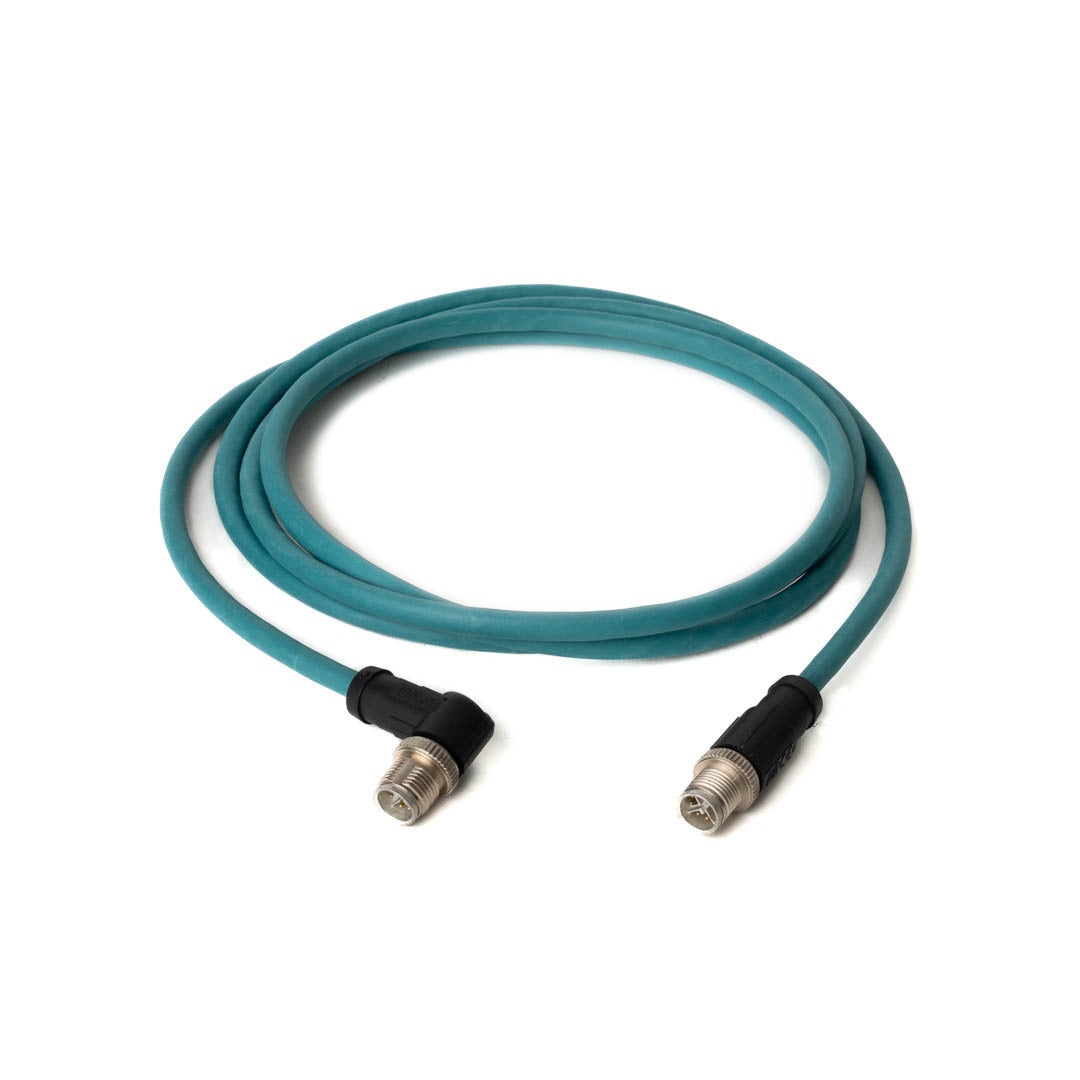

  • Right angle up connectors available in some lengths
  • Drag chain grade available in some lengths
  • Contact us to inquire about lengths or versions not shown above

Specifications

Bend Radius
67 mm (2.6")
Operating temperature
80°C (176°F)
