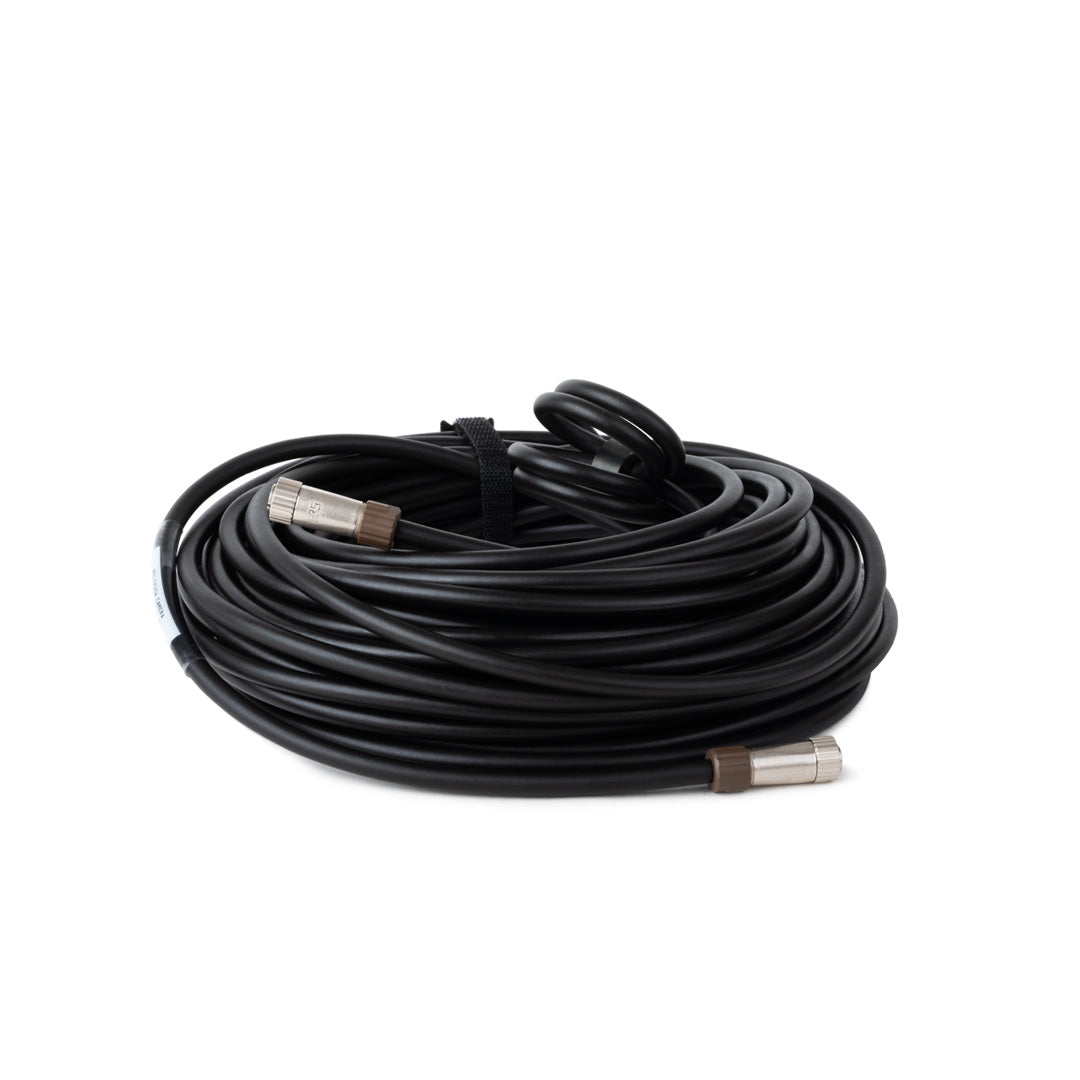

Flex camera cable with integrated ferrite

For DART2 and PIXI cameras

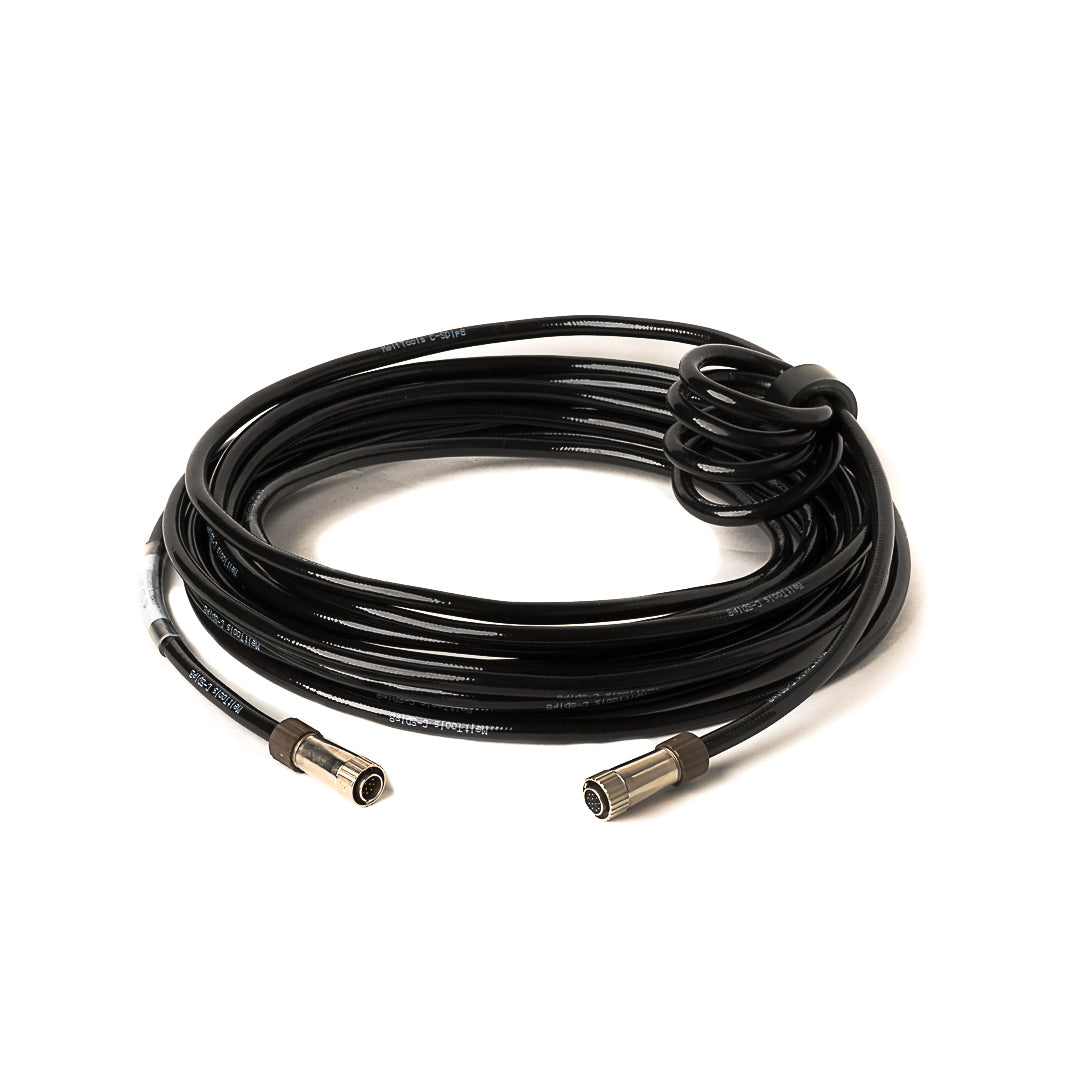

  • Flex cable for welding camera with integrated ferrite for DART2, TERA and PIXI cameras

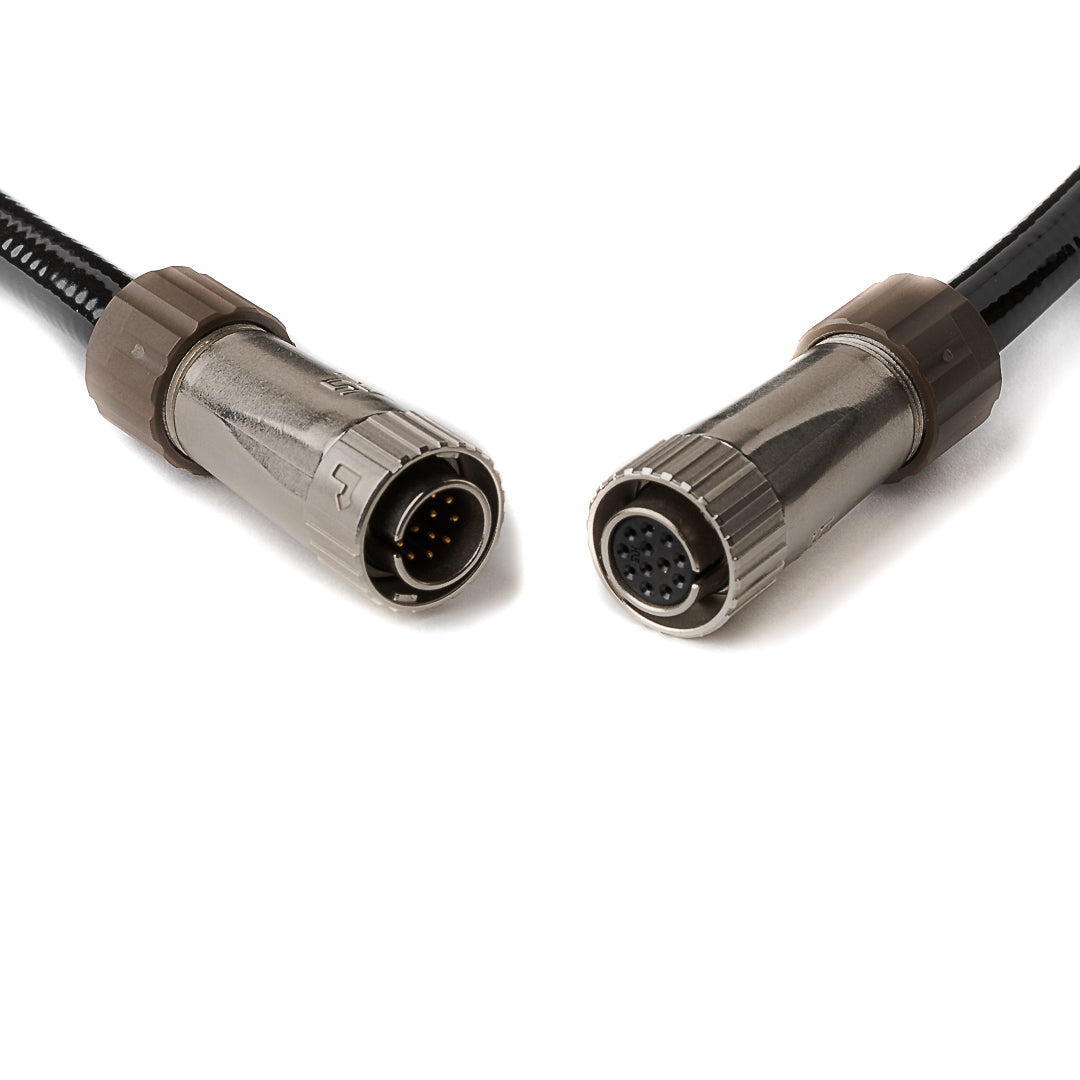

  • Flex cable for welding camera with integrated ferrite for DART2, TERA and PIXI (connectors)
1 2
Click here to view all variant options.
Length
Price $420.00
Price $420.00
Sale Sold out
calculated at checkout.
SKU:  MT122383
Part Number:  CHBG002F
View full details

Description

Our flex camera cable provides power, control and video signals from the DART2 or PIXI welding camera to our compact or advanced camera controller. The integrated ferrite bead is recommended for applications with HF arc starts.

  • Ferrite bead protects camera system against HF
  • Standard lengths shown
  • Available in custom lengths up to 25 m (82')
  • Suitable for use with compact controller up to 15 m (49.2')
  • Suitable for use with advanced controller up to 25 m (82')

Specifications

Bend Radius
74 mm (2.9")
Operating Temperature
~75°C (167°F)
