MeltView® PIXI welding camera

Versatile camera ideal for LBW, PAW, SAW and TIG

  • Front view of the MeltView® PIXI weld monitoring camera
  • Back view of the MeltView® PIXI weld monitoring camera
  • Up close view of the front of the MeltView® PIXI weld monitoring camera
  • Up close view of the back of the MeltView® PIXI weld monitoring camera
  • MeltView® PIXI weld monitoring camera in short, medium and long housings

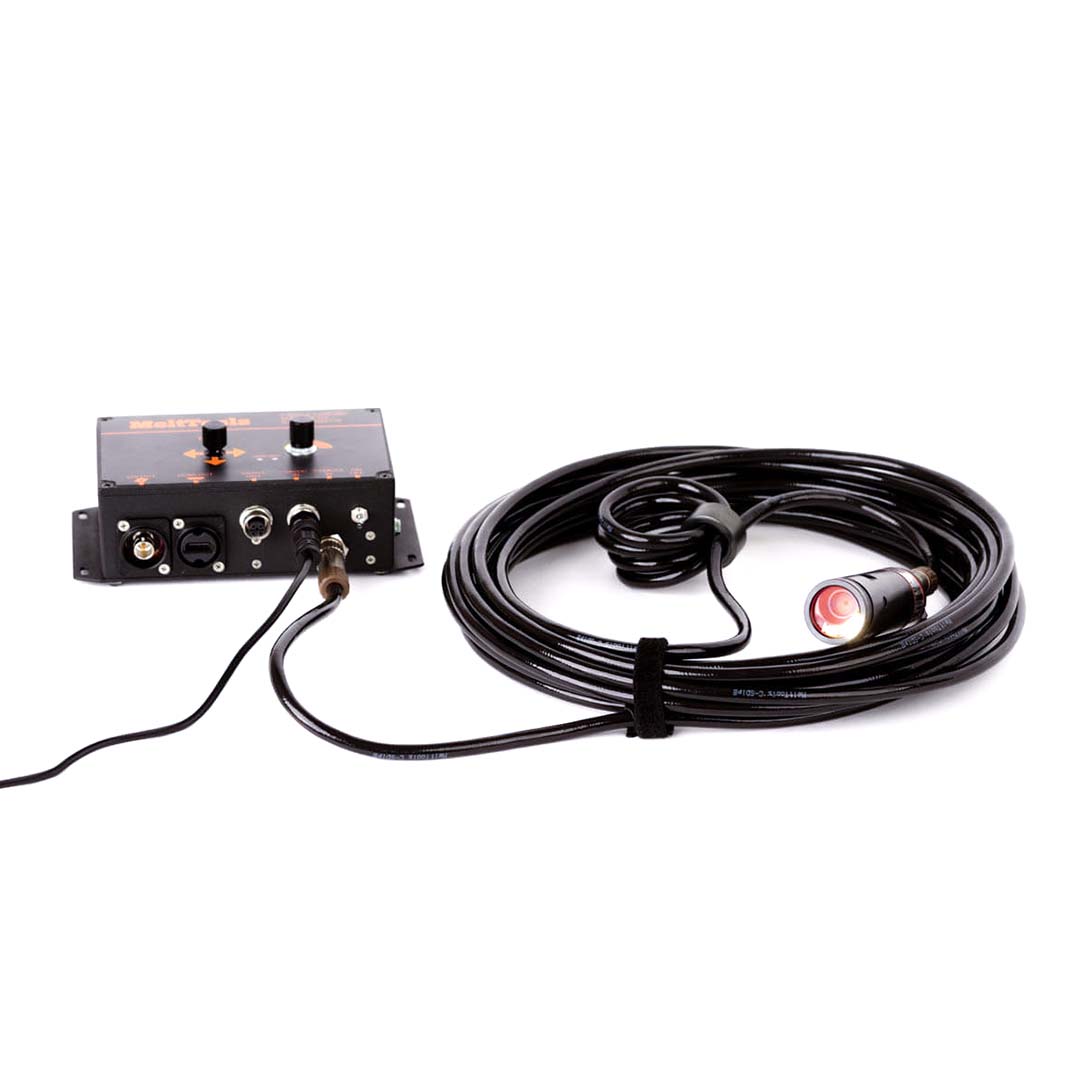

  • MeltView® PIXI weld monitoring camera plugged into the PXCC1 compact camera controller
1 6

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.
Optics
Lens
Cable Connector
Price $4,900.00
Price $4,900.00
Sale Sold out
calculated at checkout.
SKU:  MT519983
Part Number:  PX1-0B40-X
View full details
Use for GTAW
Use for PAW
Use for LBW
Use for SAW

Description

The MeltView® PIXI is a ruggedized welding camera specifically engineered to provide high-definition monitoring in confined and demanding environments. The PIXI measures 30mm (1.8”) in diameter and weighs approximately 120g (4.23oz). The camera's size makes it ideal for challenging applications where space is limited, including cladding, orbital tube welding, and Submerged Arc Welding (SAW).

Utilizing High-Dynamic Range (HDR) imaging, the MeltView® PIXI captures both the blinding intensity of the welding arc and the critical details of the surrounding weld pool with high resolution.

  • Seamless Transitions: The camera automatically switches between arc-on and arc-off modes.
  • Direct-to-Monitor Viewing: Operators can directly monitor the weld at 1920 x 1080 HD resolution. No separate computer or software is required.
  • Near-Zero Latency: HD-SDI output provides a direct-to-monitor setup for immediate, real-time operator feedback.

The PIXI is built for harsh industrial conditions. With its integrated water cooling system, it can operate in temperatures up to 400°C (752°F). The camera can be positioned as close as 2" (51 mm) from the weld. The PIXI is recommended for GTAW (TIG), PAW, SAW, and LBW applications.

Key Features:

  • Image Quality: Rich monochrome or color imaging for GTAW, PAW, LBW, and SAW processes
  • Optics: Automatic switching between arc-on and arc-off modes
  • Plug-and-Play: Displays directly to an HD monitor, no PC or software needed
  • Compact Size: 30Ø mm diameter allows for use in compact spaces
  • Integrated Lighting and Cooling: All models offer integrated lighting, water and air cooling to reduce bulky setups
  • Flexible Viewing: Models available with 45° and 90° optics to suit your specific setup
  • Precision Targeting: Adjustable dual crosshairs for alignment
  • Customizable Transmission: Standard X-coded or F-style cables, with wireless, fiber, and dual cable options available

Note: The PIXI camera requires a MeltView® camera controller. Optional frame grabber or DVR is available for recording and streaming video.

Specifications

Temperature rating without cooling
0° - 50°C (32° -122°F)
Temperature rating with water cooling
0° - 400°C (32° - 752°F)
Operating environment
85% relative humidity
Illumination
Integrated LED
Video output signal
HD-SDI
1920 x 1080
Power
24 VDC
Consumption
approx. 500 mW - configuration specific
Dimensions
30 x ~ 108 mm (1.2 x 4.3")
Weight
approx. 120 g (0.26 lbs)

Image Resources

TIG Color PIXI Groove

Dual PIXI

PIXI Seamer

PIXI Color Tig

Video Resources

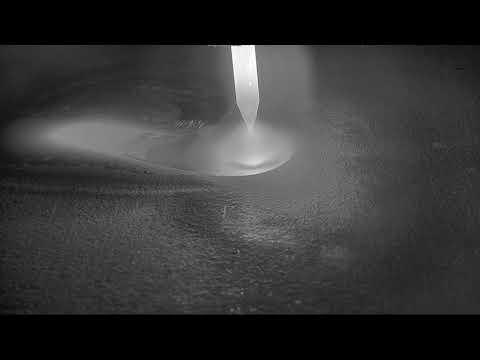

The MeltView® PIXI welding camera, optimized for cladding

The MeltView® PIXI welding camera, optimized for cladding

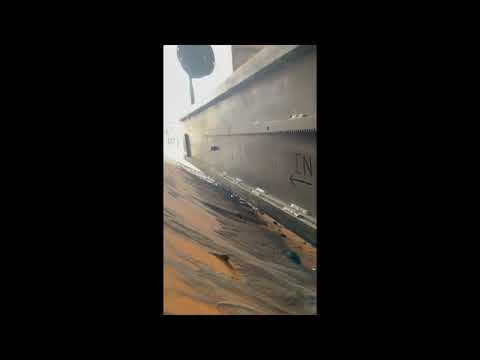

MeltView® PIXI SAW

MeltView® PIXI SAW

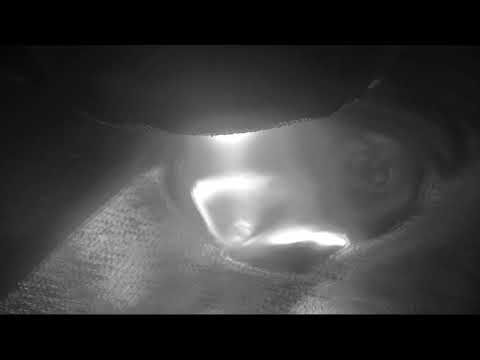

Monitor plasma powder cladding with the MeltView® PIXI

Monitor plasma powder cladding with the MeltView® PIXI

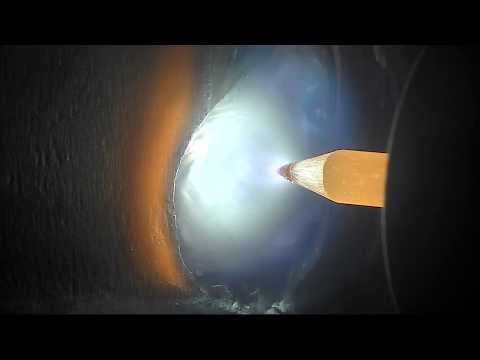

The MeltView® PIXI welding camera, in rich color

The MeltView® PIXI welding camera, in rich color

Frequently Asked Questions

We recommend a monochrome image for the clearest image across all welding processes. A color image is sometimes preferred for TIG welding / GTAW, since TIG is relatively simple to image and color can provide information about the weld.
No. Our HD-SDI camera line features a direct-to-monitor setup, providing 1920 x 1080 resolution feed with near-zero latency, eliminating the need for a PC or software. A MeltView® camera controller is required to interface with and power the camera.
For SAW or inspection, color A optics are selected. Monochrome (B and D) cameras provide greater light sensitivity, increased arc suppression and sharper images than color open-arc (C) cameras. Monochrome cameras are ideal for tracking applications where a wide field of view is essential. For some TIG/PAW and LBW applications, a color (C) image may be preferred. A: Color suitable for SAW or inspection systems. B: Monochrome suitable for most processes (GMAW, FCAW, GTAW, PAW) to provide the highest arc attenuation. C: Color suitable for GTAW and PAW. Generally recommended for tungsten definition and monitoring of in-groove welds. D: Monochrome image for LBW configured to view the positioning laser.
Without cooling, the PIXI operates safely up to 50°C (122°F). When utilizing the integrated water and air knife cooling options, it has been proven in environments up to 400°C (752°F).
Because of its small design (30Ø mm), the PIXI can fit into tight internal diameters and confined spaces where traditional welding cameras cannot reach, allowing for high-definition monitoring of internal pipe welds and cladding.
