MeltView® DART2 welding camera

Compact camera ideal for MIG, TIG, PAW and FCAW

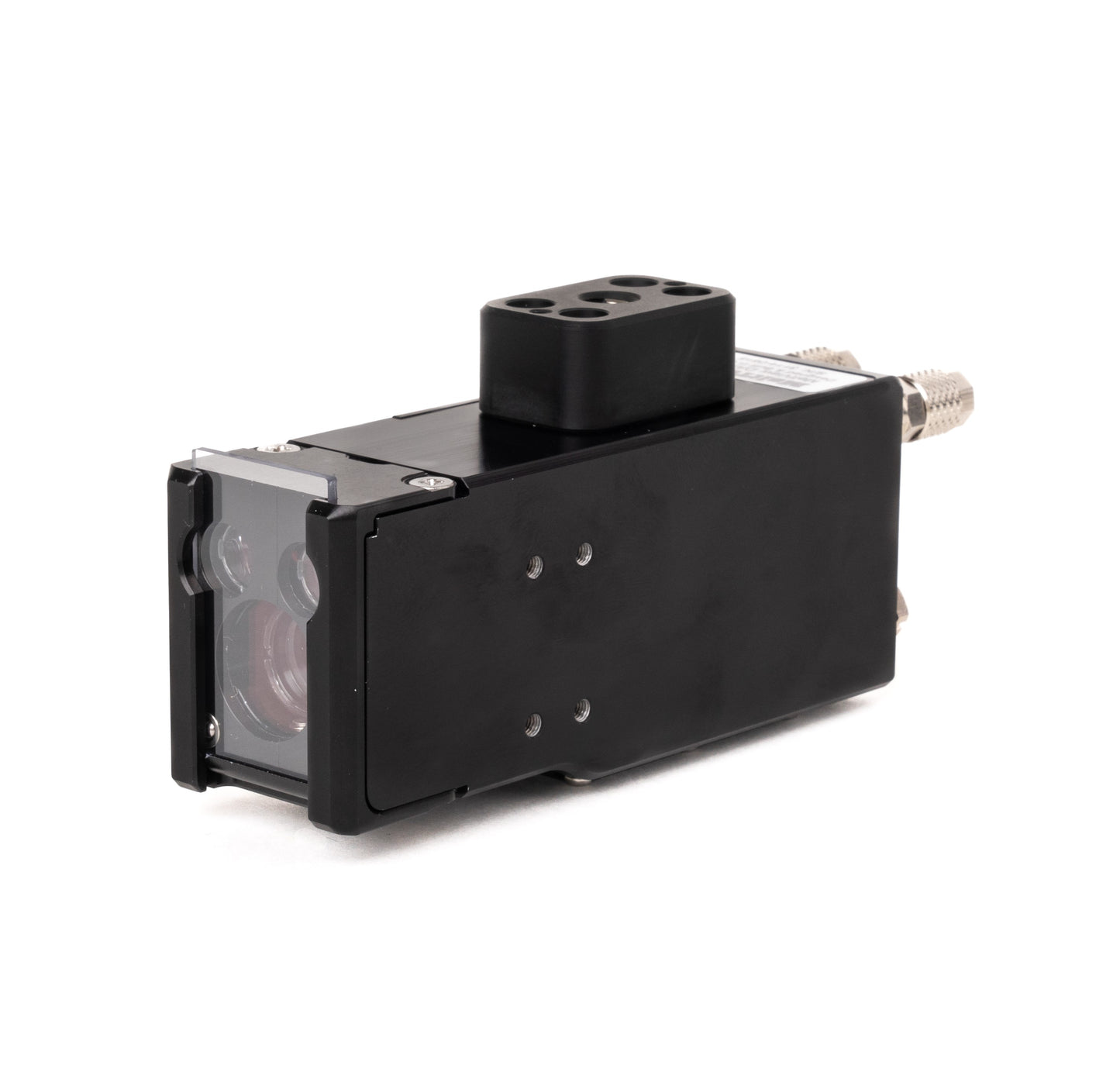

  • MeltView® DART2 welding camera

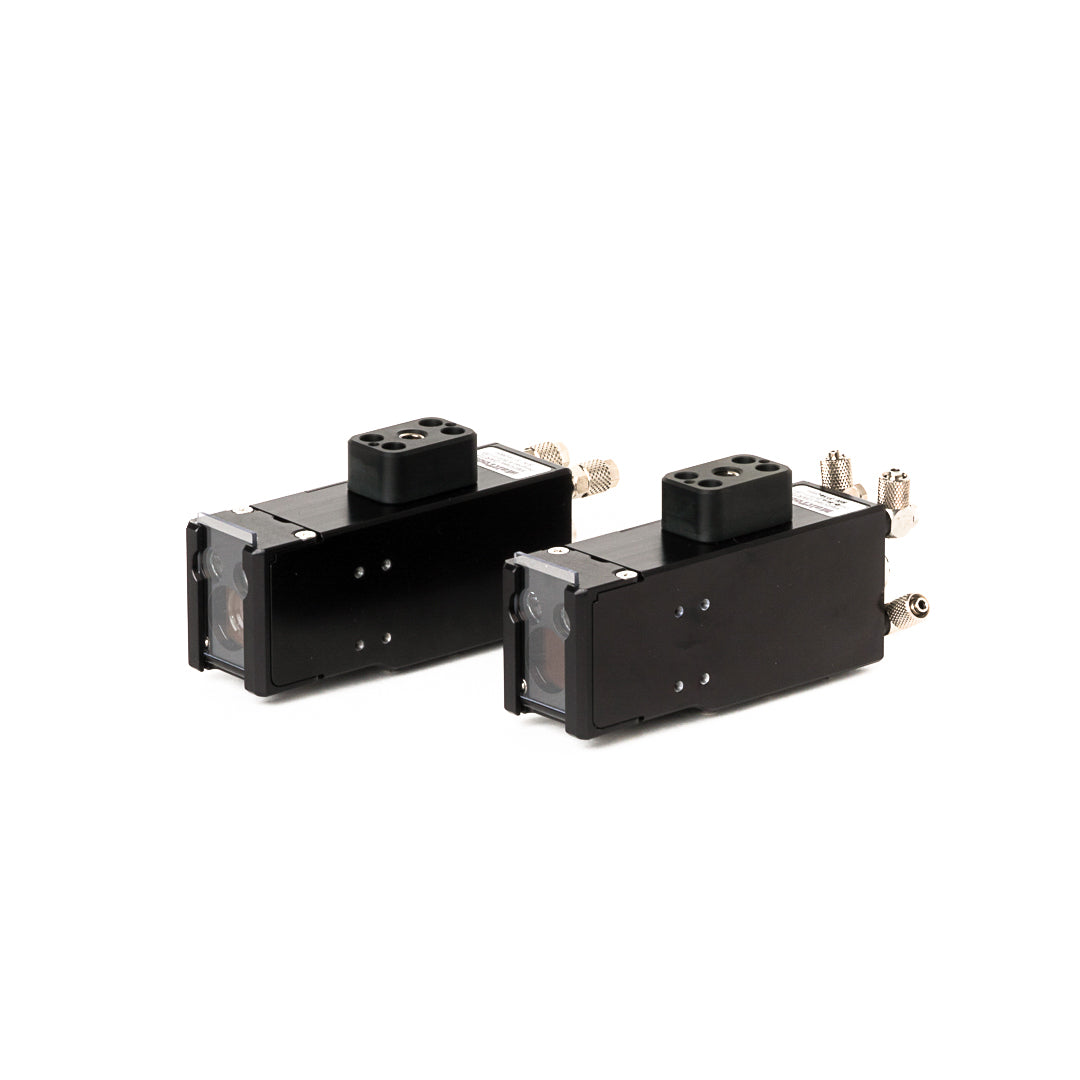

  • MeltView® DART2 camera front of the camera showing different connectors

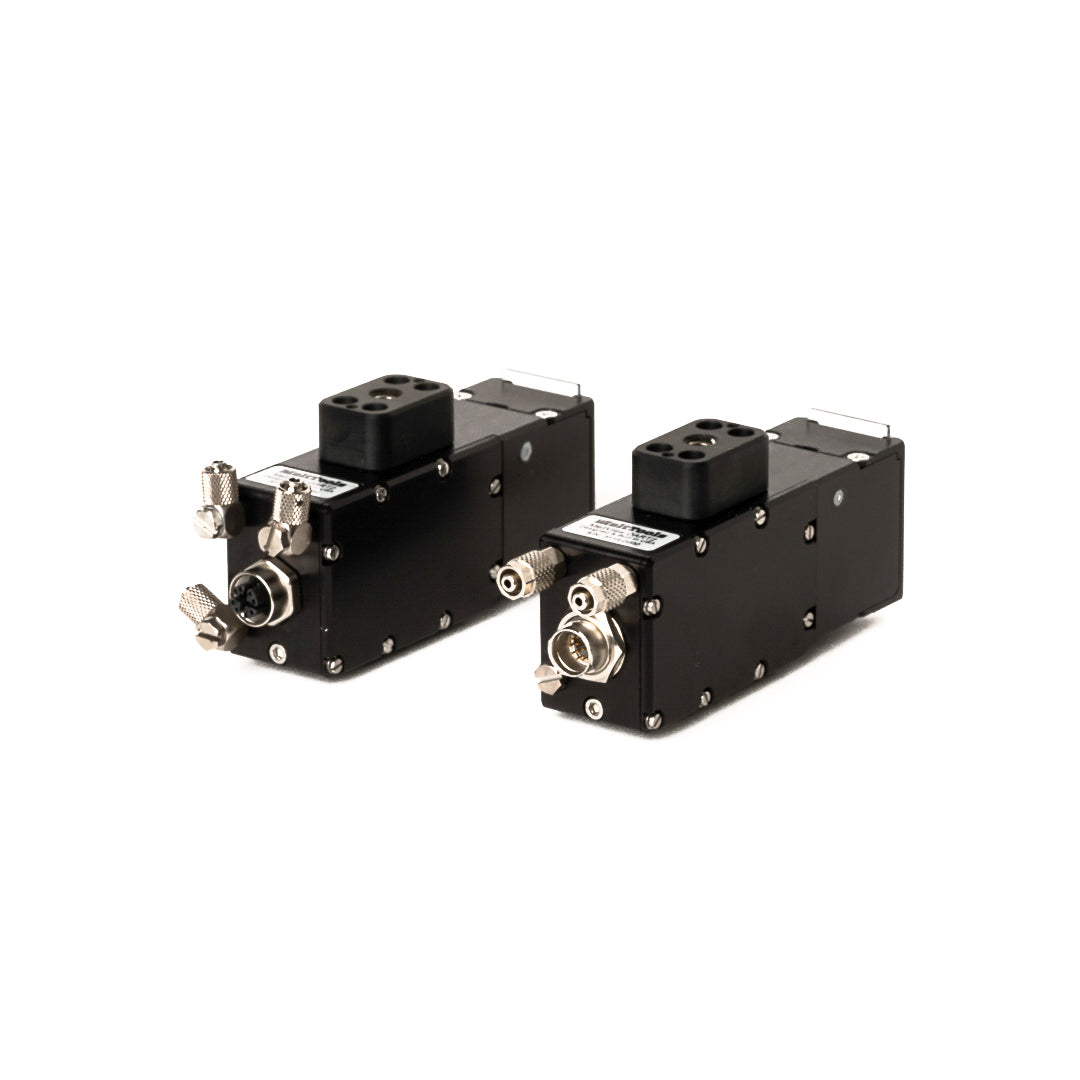

  • Back of our MeltView® DART2 welding camera showing the Flex and X-coded cable connectors
1 3

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.
Optics
Lens
Cable Connector
Price $5,600.00
Price $5,600.00
Sale Sold out
calculated at checkout.
SKU:  MT319989
Part Number:  D2-C16-X
View full details
Use for GMAW
Use for FCAW
Use for GTAW
Use for PAW

Description

Building upon the legacy of our flagship DART camera, the MeltView® DART2 delivers a more compact design coupled with 3x higher resolution. Engineered to withstand harsh industrial welding conditions, this ruggedized camera is ideal for monitoring open-arc applications, including column and boom setups, seamers, and orbital welding.

Equipped with an exterior focusing mechanism, the DART2 allows for optimal operation at versatile working distances ranging from 100 mm to 400 mm (4” to 16”), giving operators the flexibility needed for various heavy-duty configurations.

Utilizing advanced high dynamic range (HDR) imaging, the DART2 captures both the intensity of the open welding arc and details of the surrounding weld pool in real-time.

  • Seamless Transitions: The camera automatically switches between arc-on and arc-off modes.
  • Direct-to-Monitor Viewing: Operators can directly monitor the weld at 1920 x 1080 HD resolution. No separate computer or software is required.
  • Near-Zero Latency: HD-SDI output provides a direct-to-monitor setup for immediate, real-time operator feedback.

The DART2 is designed for high-temperature, harsh welding conditions. Featuring integrated protection, lighting, and cooling options, the camera can operate in temperatures reaching up to 300°C (570°F). The DART2 is ideal for GMAW, FCAW, GTAW and PAW welding applications.

Key Features:

  • Image Quality: Rich monochrome or color imaging for open-arc processes (GMAW, FCAW, MCAW, GTAW, PAW)
  • Optics: Automatic switching between arc-on and arc-off modes
  • Adjustable Focus: External focus adjustment between 100 mm (4") and 400 mm (16")
  • Plug-and-Play Setup: Displays directly to an HD monitor, no PC or software required
  • Integrated Protection: Built-in cooling (water and/or air-knife) and integrated LEDs
  • Precision Targeting: Adjustable dual crosshairs for alignment
  • Customizable Transmission: Standard X-coded or F-style cables, with wireless, fiber, and dual cable options available upon request

Note: The DART2 camera requires a MeltView® camera controller. Optional frame grabber or DVR is available for recording and streaming video.

The MeltView® DART2 welding camera is also offered in a smaller camera body known as our DART2 Mini. Click here to learn more.

Specifications

Temperature rating without cooling
0° - 50°C (32° - 122°F)
Temperature rating with cooling
0° - 300°C (32° - 570°F )
Consumption
approx. 500 mW - configuration specific
Power
24 VDC
Video output signal
HD-SDI
Resolution
1920 x 1080
Illumination
Integrated LED
Operating environment
85% relative humidity
Dimensions
32 x 45.5 x 106 mm (1.3 x 1.8 x 4.2")
Weight
200 / 280 g (0.44 / 0.62 lbs)

Image Resources

MeltView® DART2 Camera: Tank Welding

MeltView® DART2 Welding Camera Bridging The Valley

MeltView® DART2 Camera Controller Crosshair Options

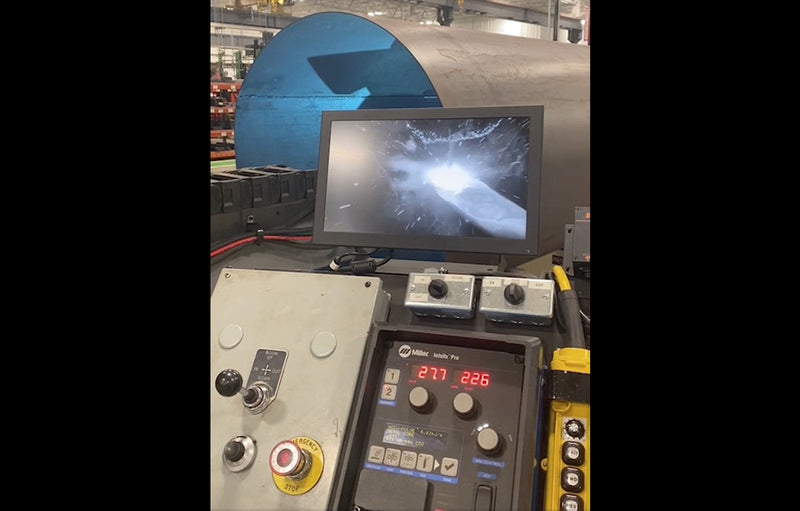

MeltView® DART2 Welding Camera Setup

Video Resources

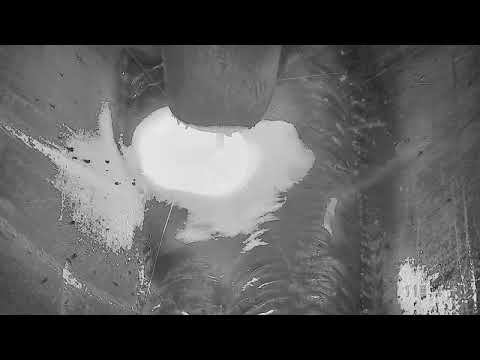

MeltView® DART2 Fill

MeltView® DART2 Fill

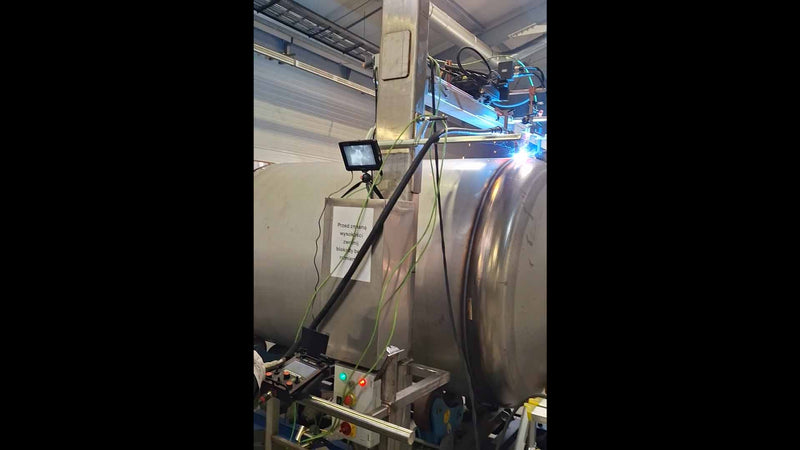

Stainless Steel Tank Welding with the MeltView DART2 Camera

Stainless Steel Tank Welding with the MeltView DART2 Camera

Bridging the valley with the MeltView® DART2

Bridging the valley with the MeltView® DART2

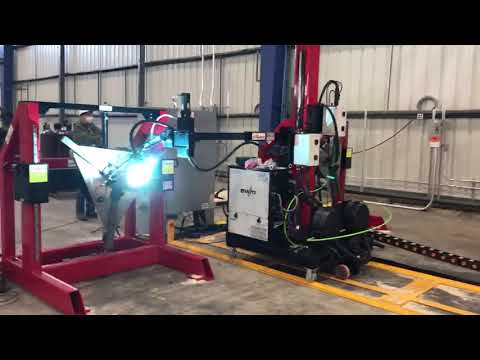

MeltView® DART2 - pipe joining

MeltView® DART2 - pipe joining

Frequently Asked Questions

We recommend a monochrome image for the clearest image across all welding processes. A color image is sometimes preferred for TIG welding / GTAW, since TIG is relatively simple to image and color can provide information about the weld.
Without cooling, the DART2 operates safely up to 50°C (122°F). When utilizing the integrated water and air knife cooling options, it can withstand extreme environments up to 300°C (570°F).
No. Our HD-SDI camera line features a direct-to-monitor setup, providing 1920 x 1080 resolution feed with near-zero latency, eliminating the need for a PC or software. A MeltView® camera controller is required to interface with and power the camera.
Yes. The DART2 welding camera is also offered in a smaller, specialized camera body known as the DART2 Mini for tighter clearance requirements.
