MeltView® MIRA3 welding camera

Specialist lens for the smallest welds

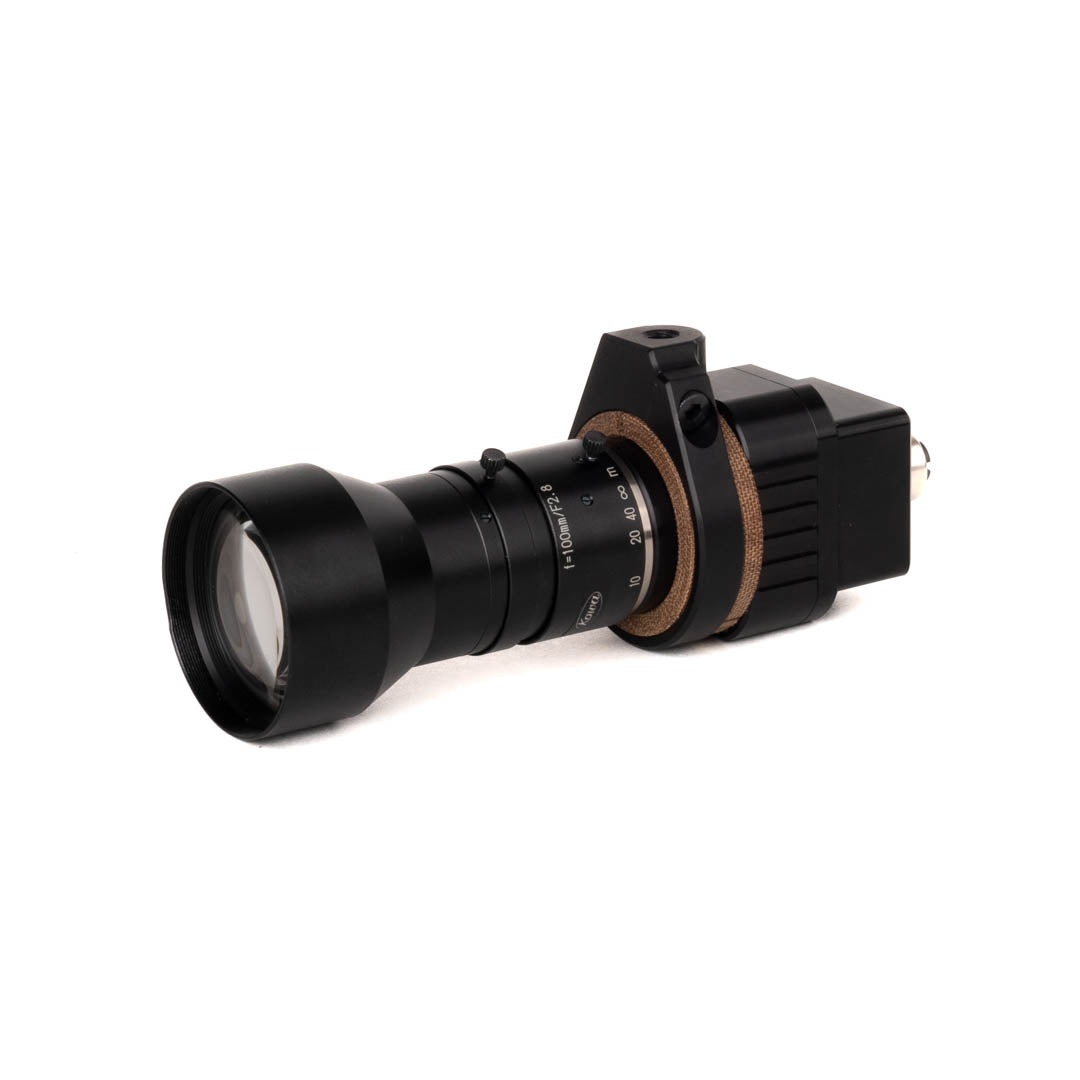

  • MIRA3 welding camera with varifocal lens front

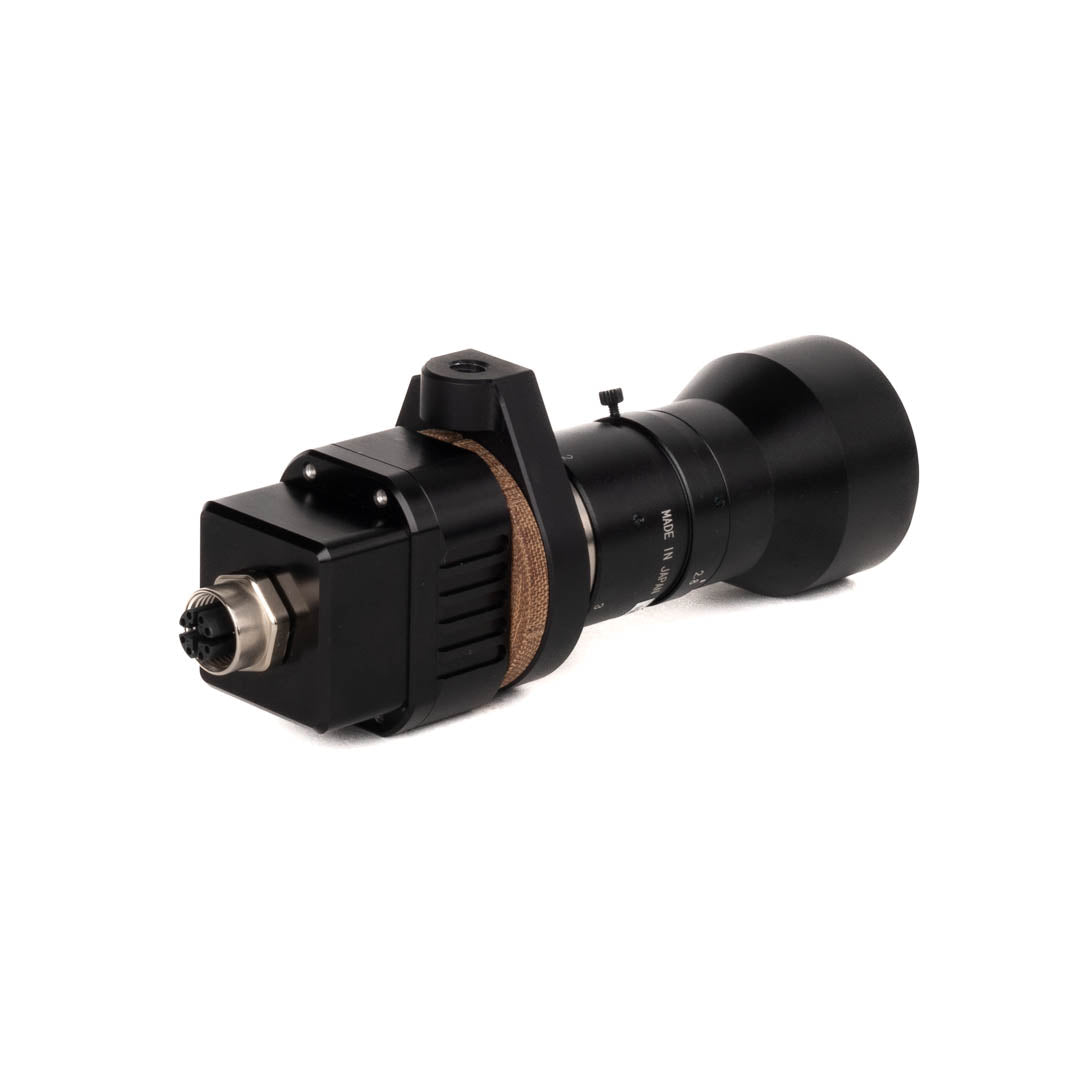

  • MIRA3 welding camera with varifocal lens back

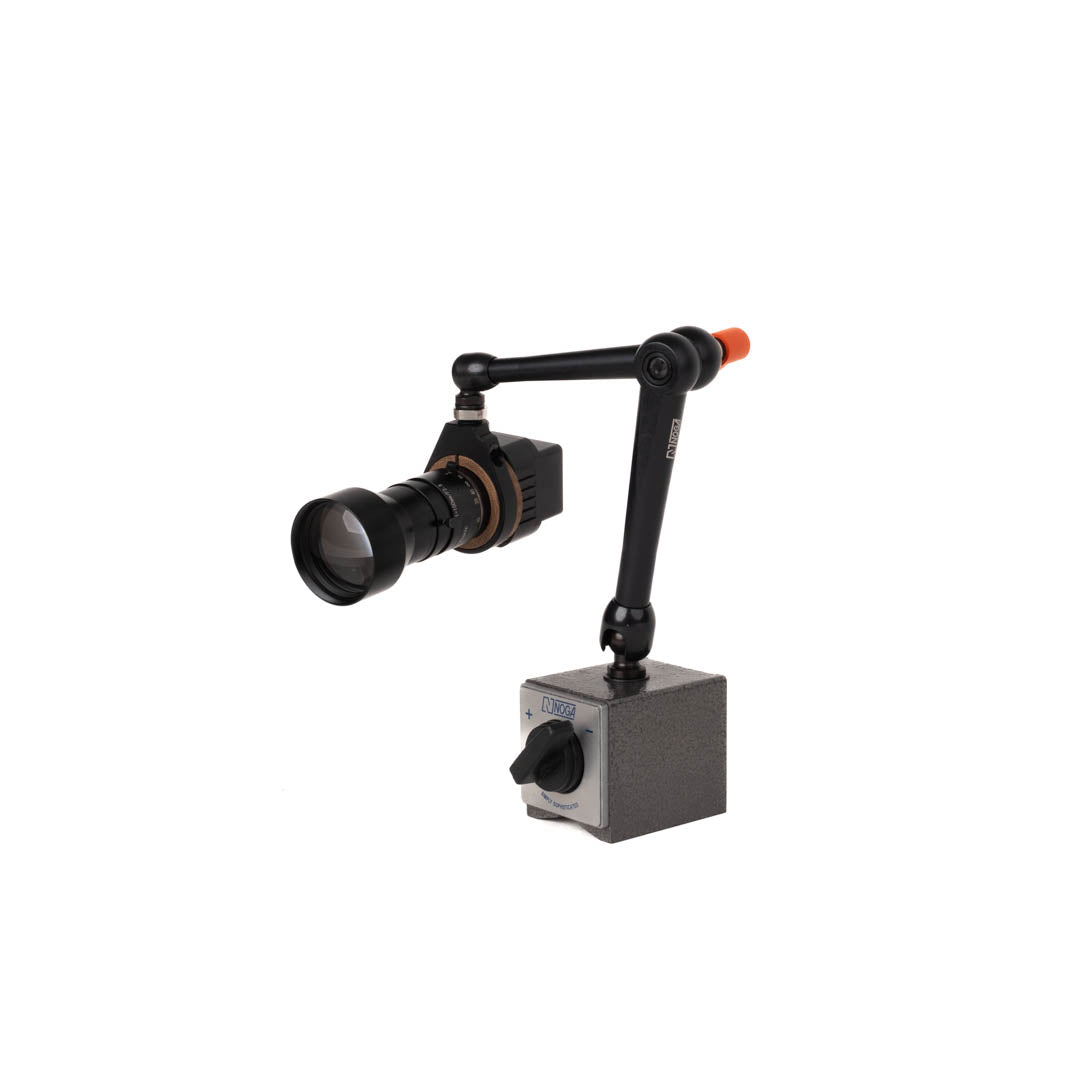

  • MIRA3 welding camera with varifocal lens with mount
1 3

Select a camera model according to the features below. Click on your desired optics to see available lenses and cables. Click here to select from a complete list of part numbers.
Optics
Lens
Cable
Price $4,900.00
Price $4,900.00
Sale Sold out
calculated at checkout.
SKU:  MT349930
Part Number:  M3-C12-X
View full details
Use for GTAW
Use for PAW
Use for LBW
Use for GMAW

Description

The MeltView® MIRA3 is our third-generation welding camera specifically designed for imaging very small welds in environments where active camera cooling is not required. With the camera body measuring at a compact 36 x 36 x 78 mm (1.4 x 1.4 x 3.1") and weighing just 180g (0.4 lbs), this versatile camera is engineered to accept a wide range of specialized lenses.

By being able to accept different lenses, the MIRA3 offers unmatched customization to optimize the welding image for your exact process. This makes it perfectly suited for challenging, high-precision applications such as bellows welding, micro welding, pipe and tube mills, and laser processes.

Utilizing industry-leading high dynamic range (HDR) imaging, the MIRA3 flawlessly captures both the blinding intensity of the welding arc and the critical details of the surrounding weld pool in real-time.

  • Seamless Transitions: The camera automatically switches between arc-on and arc-off modes.
  • Direct-to-Monitor Viewing: Operators can directly monitor the weld at 1920 x 1080 HD resolution. No separate computer or software is required.
  • Near-Zero Latency: HD-SDI output provides a direct-to-monitor setup for immediate, real-time operator feedback.

Built for multifaceted manufacturing uses, the MIRA3 is designed to effortlessly display, record, and stream video for operators. Whether you need to document a complex micro weld or monitor a continuous tube mill run, the MIRA3 delivers. The MIRA3 is ideal for GTAW, PAW , LBW and GMAW welding applications.

Key Features:

  • Image Quality: Rich monochrome or color HD imaging (1920 x 1080) for GTAW, GMAW, PAW and LBW
  • Optics: Automatic switching between arc-on and arc-off modes
  • Plug-and-Play Setup: Displays directly to an HD monitor via X-coded cable, no PC or software required
  • Precision Targeting: Adjustable dual crosshairs for alignment
  • Customizable: Takes a wide range of specialist lenses (varifocal, coaxial laser, C-mount, fixed focal) to optimize the image for your application
  • Added Protection: Additional protection available against spatter and high frequency (HF) interference

Note: Designed for operating environments up to 50°C (122°F) where cooling is not required. The MIRA3 requires a MeltView® camera controller. Optional frame grabber or DVR is available for recording and streaming video.

Specifications

Temperature rating
0° - 50°C (32° -122°F)
Consumption
150 mW
Power
12 VDC
Video output signal
HD-SDI
Resolution
1920 x 1080
Illumination
External LED
Operating environment
85% RH. Max, non-condensing
Dimensions
36 x 36 x 78 mm (1.4 x 1.4 x 3.1")
Weight
180 g (0.4 lbs)

Image Resources

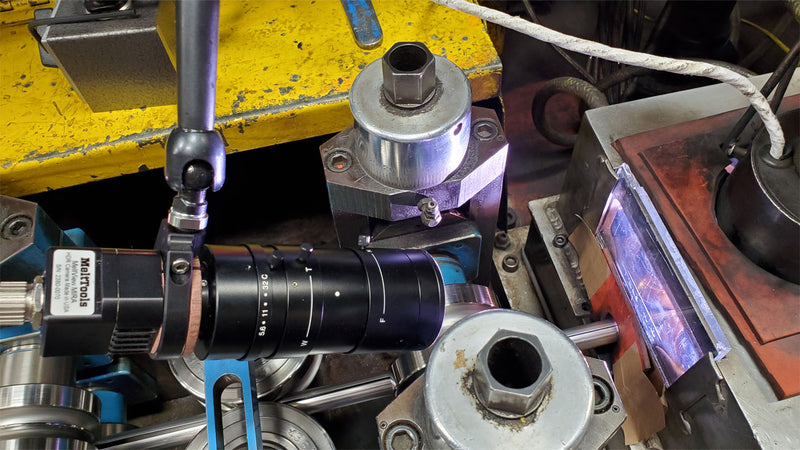

MeltView® MIRA3 Welding Camera In Use

Video Resources

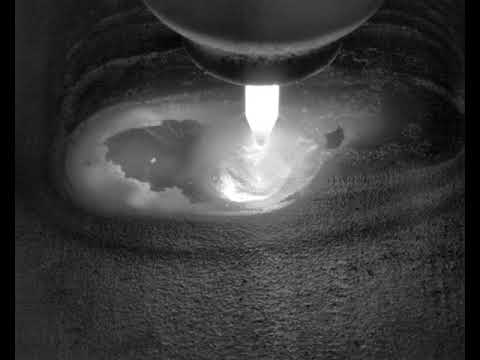

TIG weave captured with MeltView LUCI software

TIG weave captured with MeltView LUCI software

Frequently Asked Questions

No. The MIRA3 is designed without cooling capabilities as the camera is designed for welding environments where active cooling is not required, e.g. when the camera can be placed far enough away from the weld zone that ambient temperatures don’t exceed 50°C (122°F).
The MIRA3 is compatible with C-mount lenses, which come in a large range of sizes and focal lengths, including variable focal length lenses. MeltTools can suggest and provide a suitable lens, or the end user may be able to utilize an existing C-mount lens.
No. Our HD-SDI camera line features a direct-to-monitor setup, providing 1920 x 1080 resolution feed with near-zero latency, eliminating the need for a PC or software. A MeltView® camera controller is required to interface with and power the camera.
We recommend a monochrome image for the clearest image across all welding processes. A color image is sometimes preferred for TIG welding / GTAW, since TIG is relatively simple to image and color can provide information about the weld.
