Signal pass-through junction box

For single X-coded camera systems

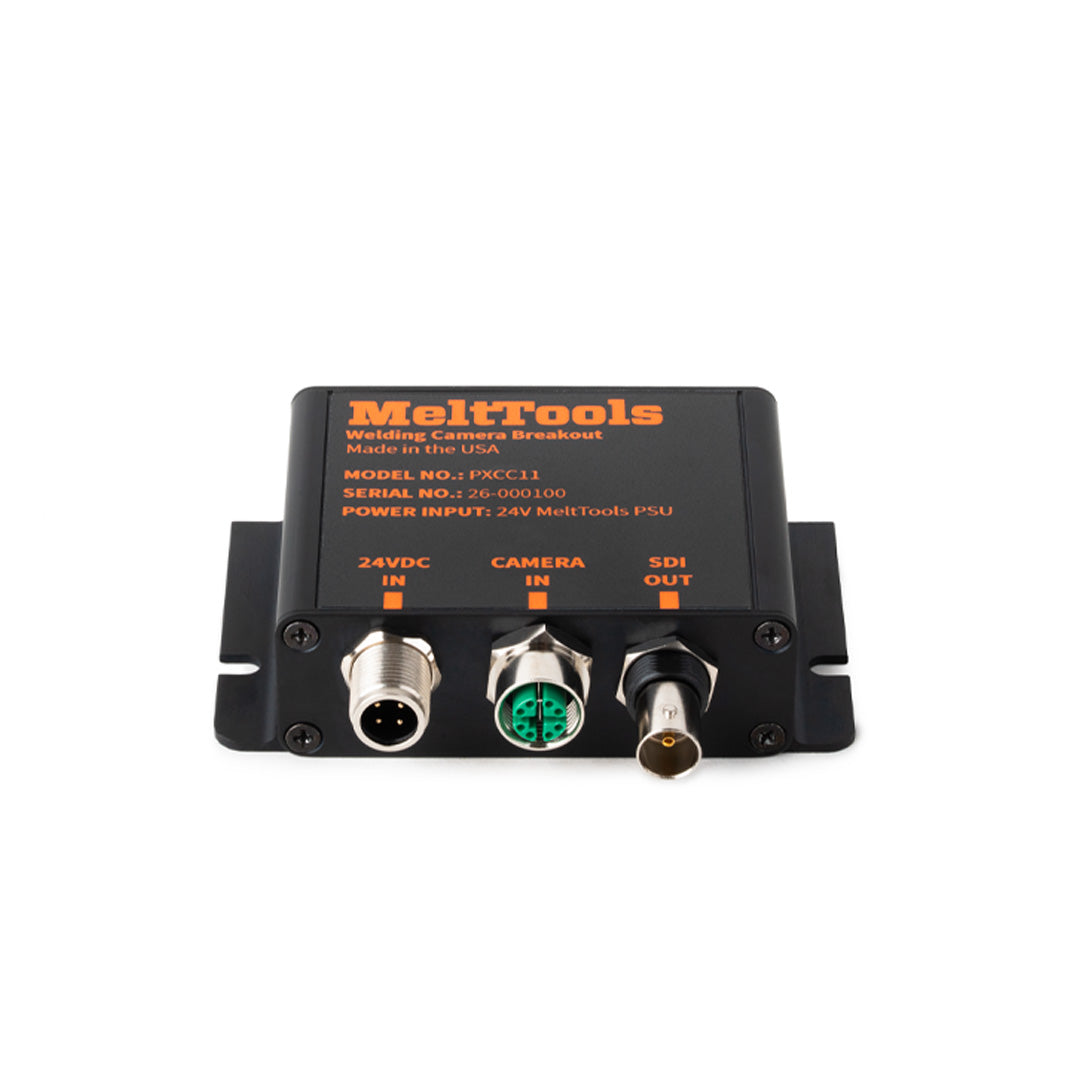

  • PXCC11 signal pass through junction box for MeltView® SDI Direct Display welding cameras.
1 1

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.
Price $490.00
Price $490.00
Sale Sold out
calculated at checkout.
SKU:  MT519056
Part Number:  PXCC11
View full details

Description

With no controls, our PXCC11 junction box replaces the need for a camera controller and is a price effective option to use with our MeltView® cameras and PROWatch industrial camera. Since our MeltView® cameras automatically adjust for a clear image between welding and non-welding, the PXCC11 is ideal for cost sensitive installations in which the camera parameters have been established and should not be changed. The junction box works with X-coded camera cables with a maximum length of 25m (82ft) and provides HD-SDI video output. Video can be transmitted up to 90m (295ft) using cables or up to 150m (450ft) with a wireless transmitter and receiver kit. The PXCC11 provides protection of electronics from HF/EMF.

  • Camera settings must be changed using a MeltView® compact or advanced camera controller
  • Cost-effective for single camera systems
  • HD-SDI video output
  • Can be used with MeltView® PIXI, DART2, APEX3, MIRA3 cameras and the PROWatch industrial monitoring camera

Specifications

Consumption
7.6 W without powering monitor
Power
24 VDC
Weight
Approx. 170 g (6 oz)
Dimensions
Approx. 102 x 76 x 25 mm (4 x 3 x 1")
Storage temperature
0° - 70°C (32° - 158°F)
Operating temperature
0° - 50°C (32° - 122°F)
Output
12 VDC
Video output
HD-SDI
Video format
1080 60i or 30p
