RAD8 lighting system

High powered LED illumination for process development

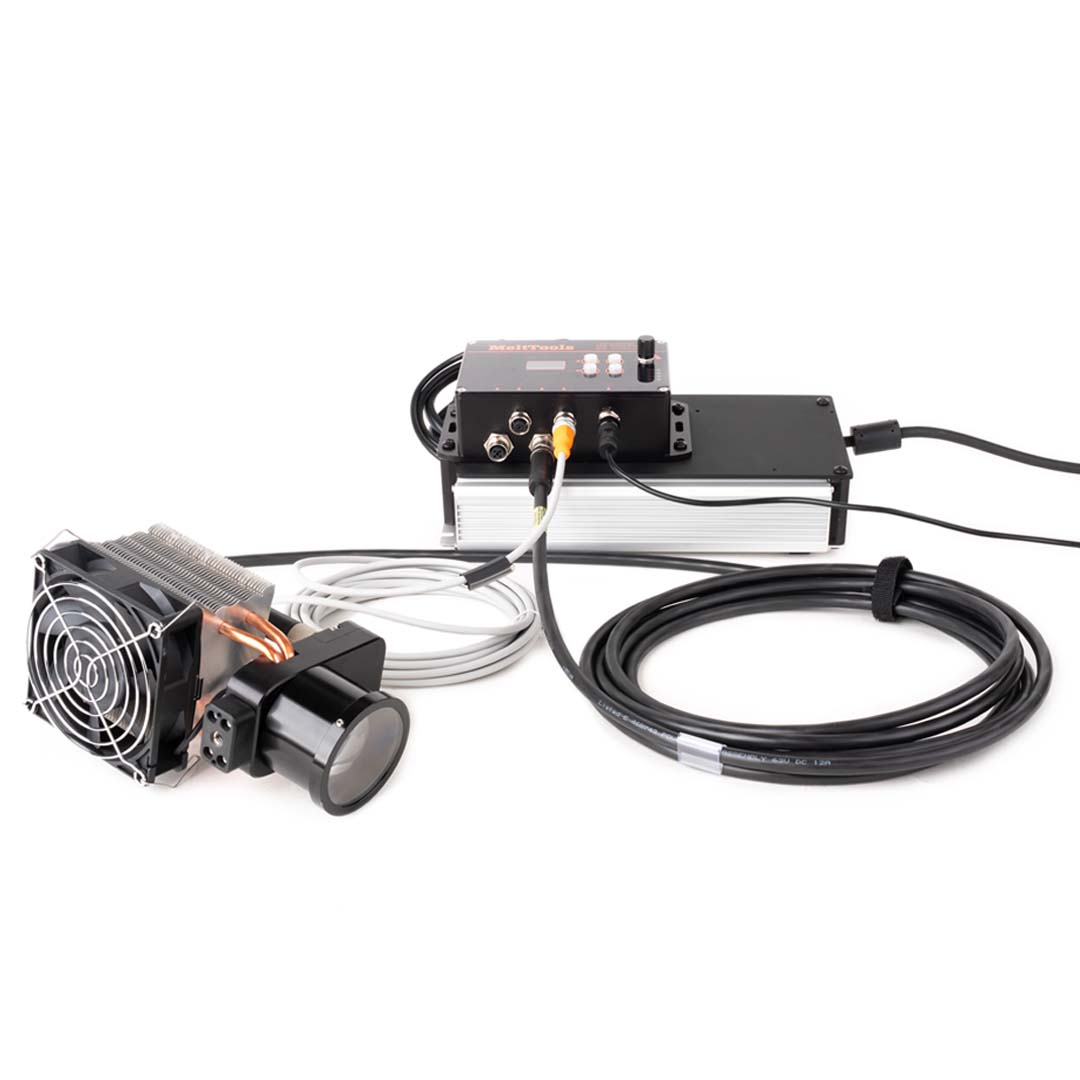

  • RAD8 illumination system with control, power supply, and LED engine.

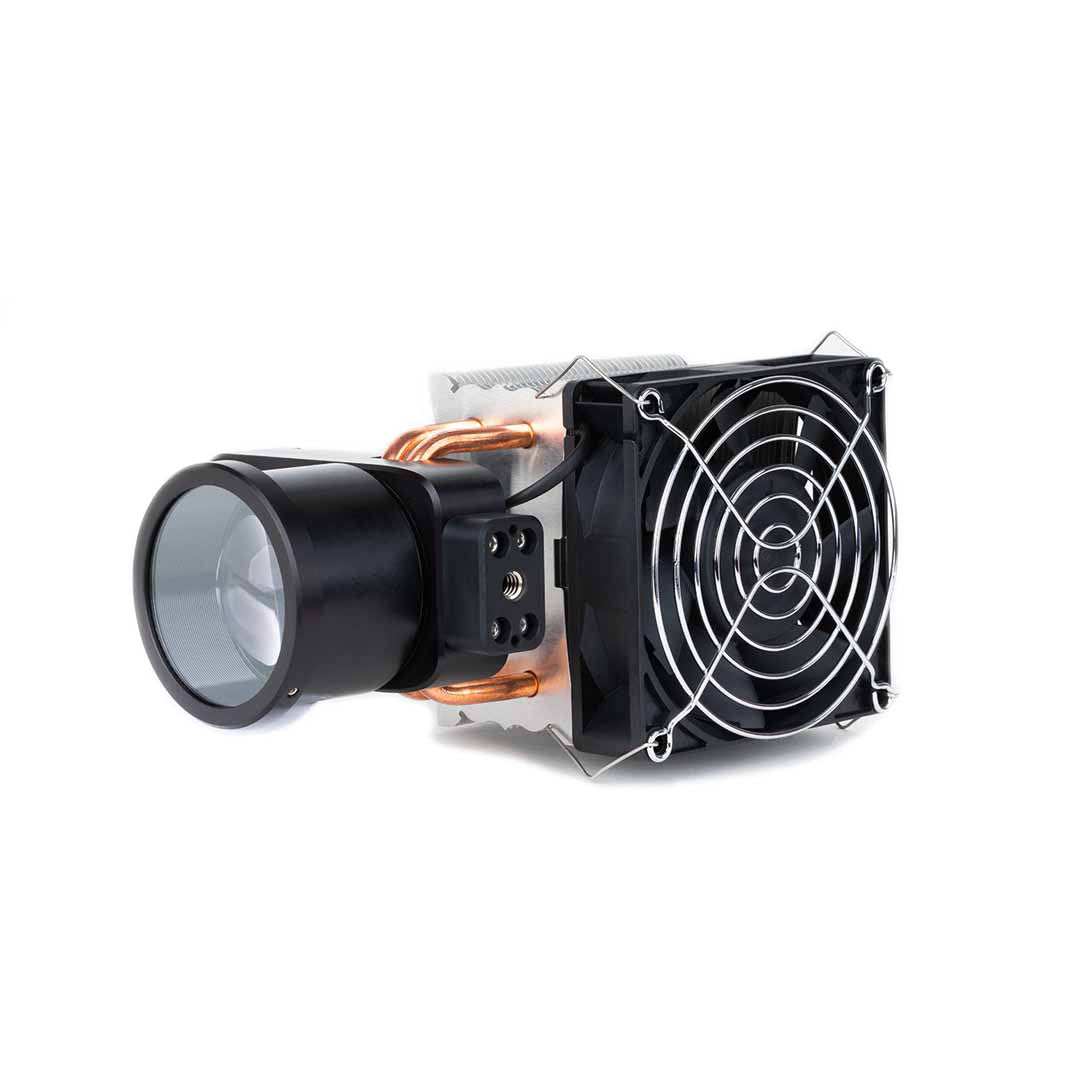

  • Front view of the RAD8 light.

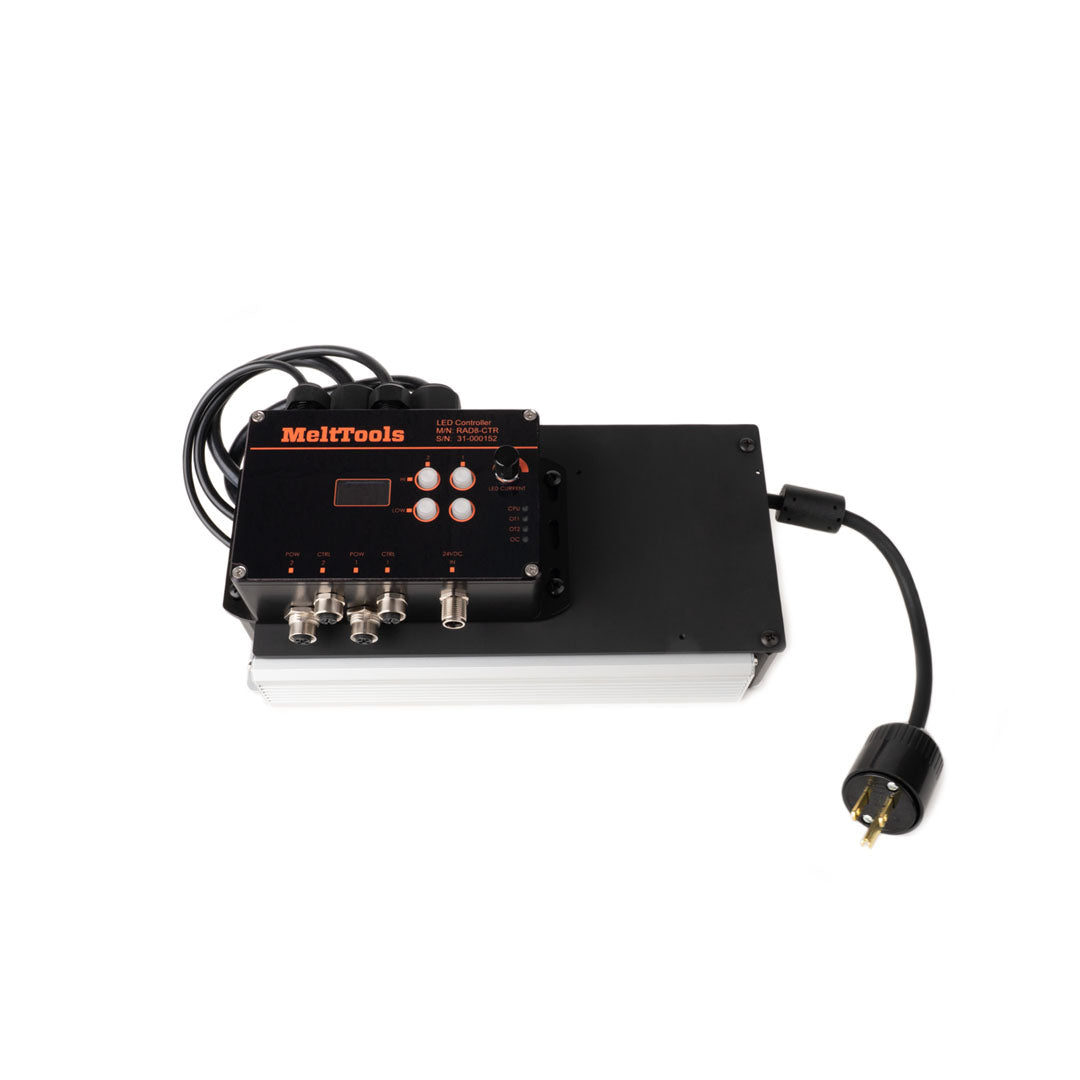

  • RAD8 illumination system power supply and controller.
1 3
Click here to view all variant options.
Price $5,200.00
Price $5,200.00
Sale Sold out
calculated at checkout.
SKU:  MT142582
Part Number:  RAD8-1RH
View full details
Use for GMAW
Use for PAW
Use for FCAW
Use for SAW
Use for GTAW

Description

The RAD8 is a high power continuous LED illuminating system for capturing crisp, clear images of the puddle without the need for class IV lasers. The RAD8 can be used with our MeltView® weld monitoring cameras and is ideal when using high speed cameras and the MeltView® APEX3 camera for welding education.

  • Lighting system includes:
    • RAD8 light engine
    • RAD8 power and control unit
    • Control unit power supply
    • LED power cable
    • LED control cable
  • Class IV laser NOT required
    • High image quality for weld monitoring cameras without a laser
    • Reduced setup time
    • Safer option
  • Configurations for different wavelengths and welding applications
  • Over-temperature and welding spatter protection
  • One touch high to low power buttons
  • No water cooling

Specifications

Weight
RAD8 light: 0.7 kg (1.5 lb)

RAD8 control unit: 4.5 kg (10 lb)
Dimensions
RAD8 light engine: 190 x 113 x 80 mm (7.5 x 4.4 x 3.1")

RAD8 control unit: 144 x 105 x 280 mm (5.7 x 4.1 x 11.0")
Consumption
480 W
Angle of illumination
8 or 24°
Operating environment
85% relative humidity
Max current per channel
27 A
Operating time
Continuous
Cooling system
Integrated fan cooling with over-temperature protection, no water cooling
Temperature rating

0° - 50°C (32° -122°F)

Image Resources

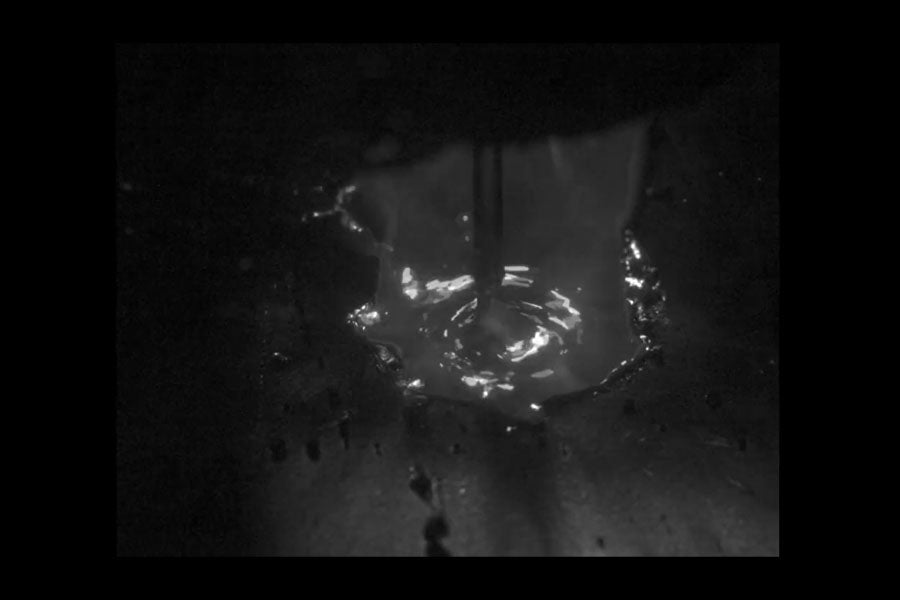

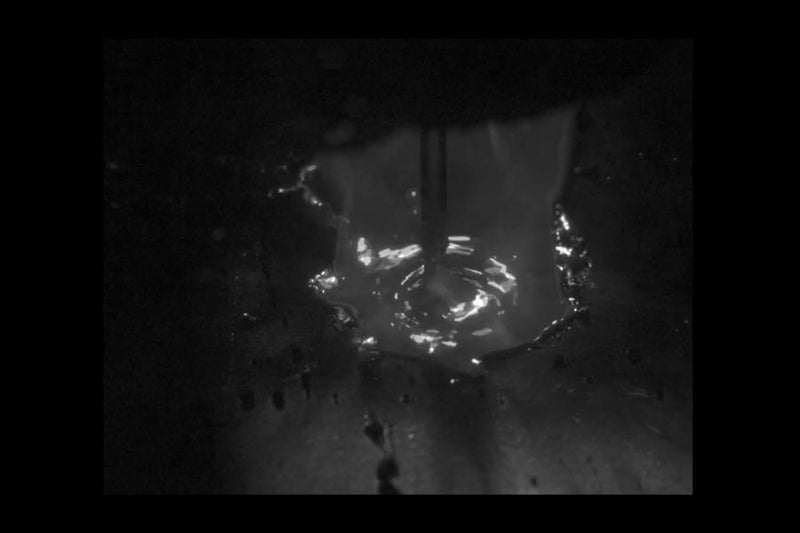

RAD8 Lighting System Used With SYNC3 Camera

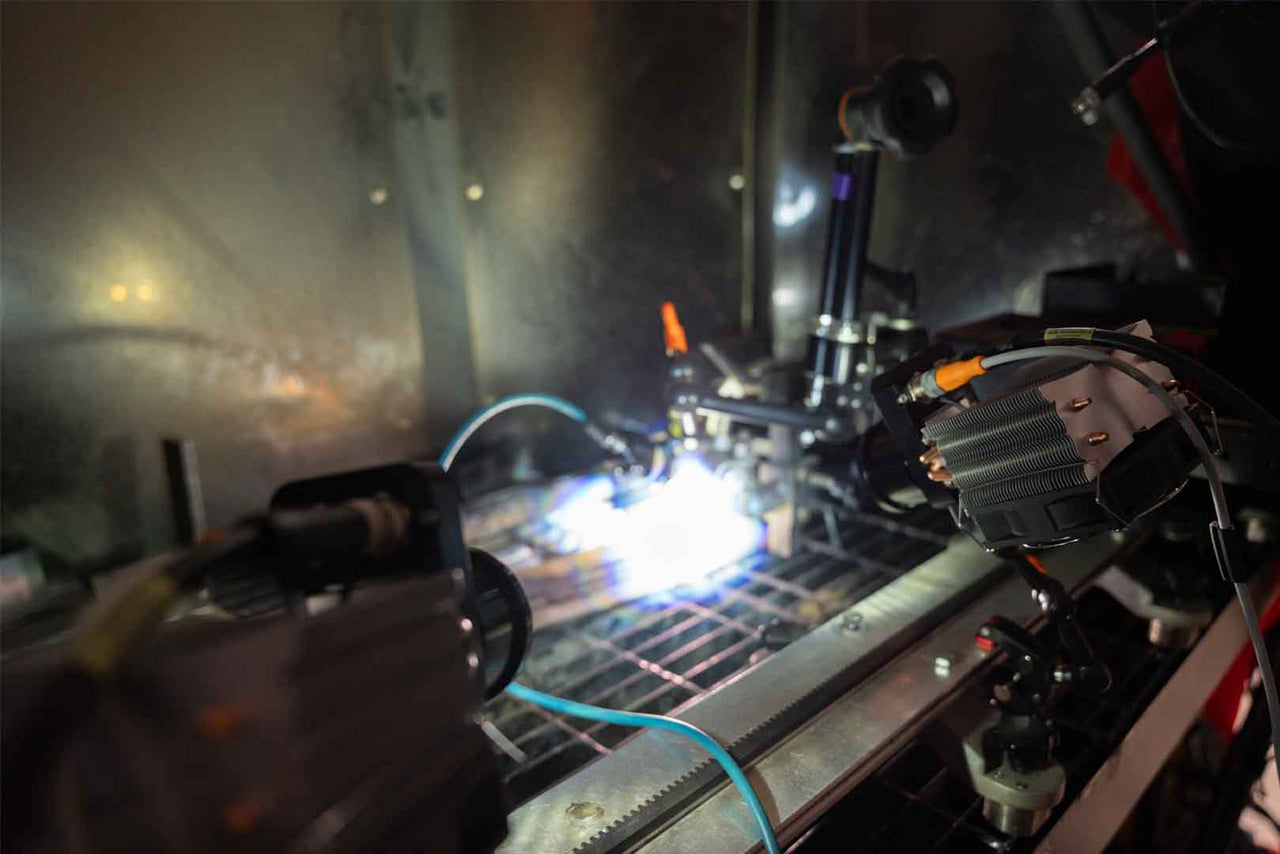

RAD8 Two Engines With APEX3 Camera

RAD8 Lighting System During Weld

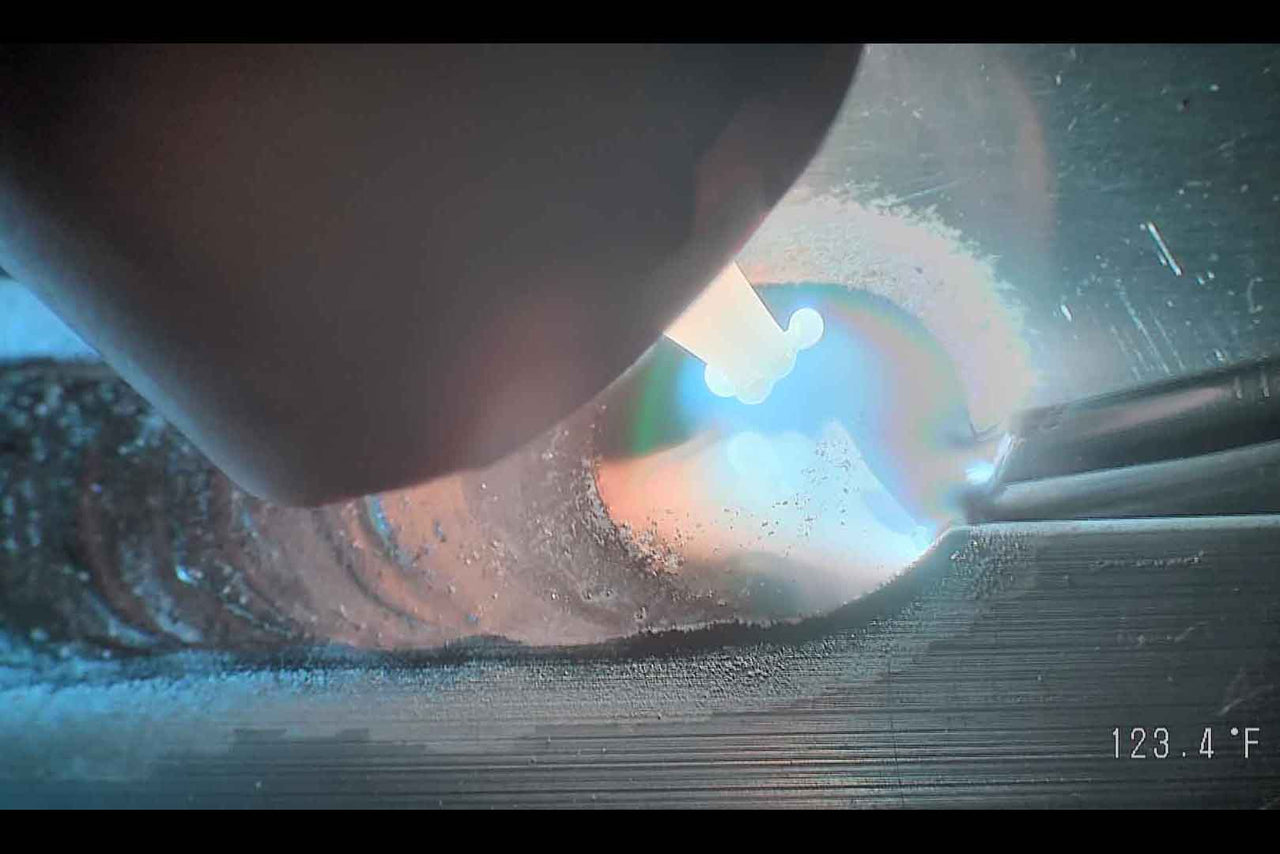

MeltView® APEX3 Camera In Color With RAD8

Video Resources

MeltView® APEX3 GTAW Aluminum Demonstration

MeltView® APEX3 GTAW Aluminum Demonstration

RAD8 illumination with the MeltView® SYNC3 camera

RAD8 illumination with the MeltView® SYNC3 camera

MeltView® APEX3 GMAW steel with overview camera

MeltView® APEX3 GMAW steel with overview camera

MeltView® APEX3 GTAW - stainless

MeltView® APEX3 GTAW - stainless

MeltView® APEX3 with RAD8 light - GMAW

MeltView® APEX3 with RAD8 light - GMAW
