Laser diode spot assembly

Alignment

  • Laser diode in housing with water cooling and spatter guard
  • PIXI welding camera with laser spots and mount
1 2

Select a model according to the features below. Click through first and/or second feature options to see available subsequent options. Click here to select from a complete list of part numbers.
Welding process
Laser diodes
Price $940.00
Price $940.00
Sale Sold out
calculated at checkout.
SKU:  MT111094
Part Number:  LDA02
View full details

Description

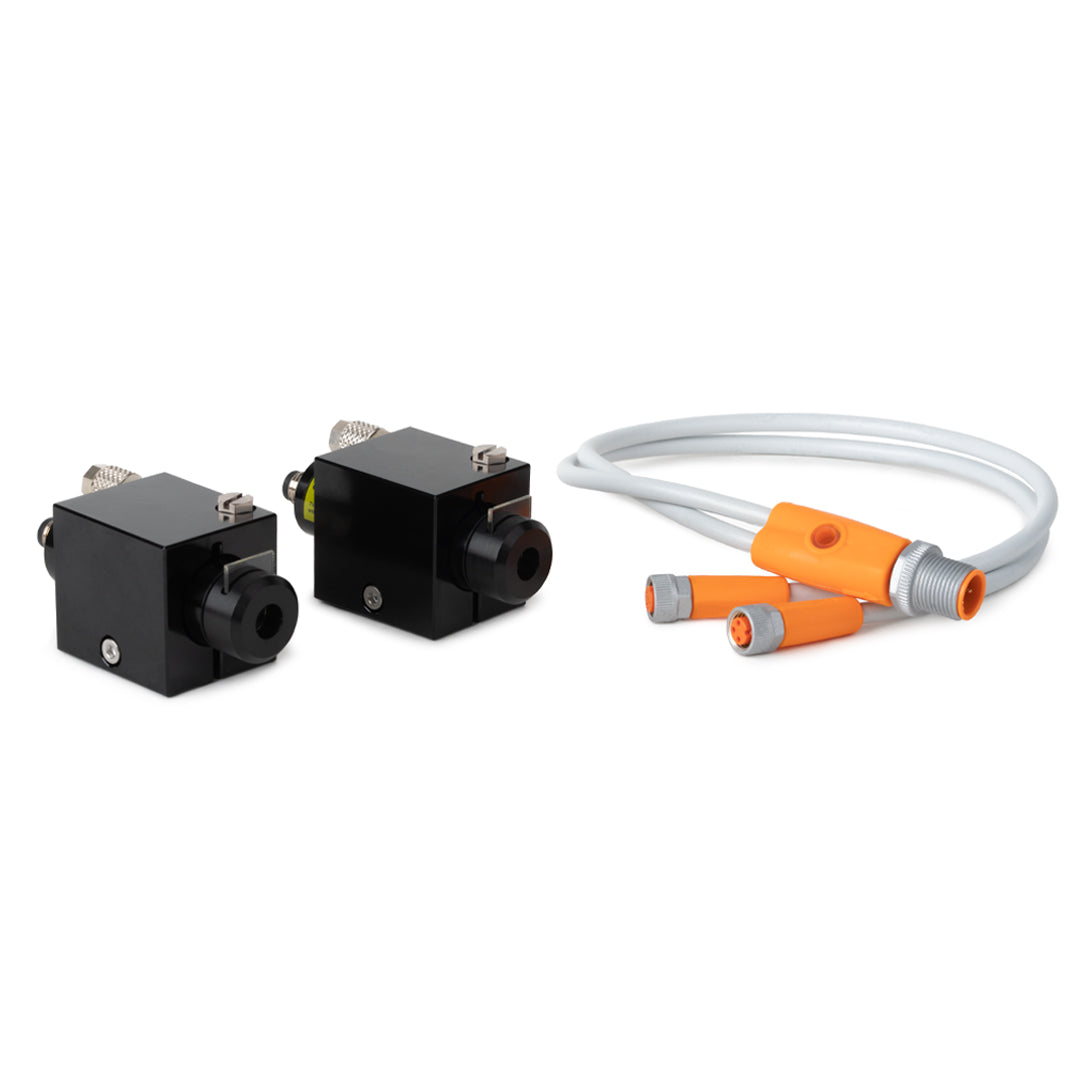

A single or dual laser diode as a spot and/or crosshair provides additional guidance to the operator, for alignment and/or height tracking.

  • Laser diode in water cooled housing with replaceable spatter shield
  • Select a red laser spot or green laser crosshair, or both
  • Select a single laser diode or a pair of laser diodes
  • Assembly includes laser diode(s) and housing(s), power lead splitter for dual laser diodes
  • PIXI camera sold separately
  • Dual fix arm mount sold separately

Specifications

Voltage input
5 VDC
Weight of housing plus laser diode
96.4 g (0.22 lbs)
Laser diode dimensions
58 mm (2.3") long, diameter
Water cooled housing dimensions
27 x 32 x 35 mm (1.06 x 1.26 x 1.38")
Safety class
Class II
Temperature with water cooling
0° - 120°C (32° - 248°F)
Temperature rating without cooling
 0° - 45° C (32° - 113°F)

Spare Parts

Laser diode replacement parts

Laser diode plastic spatter shield
Laser diode plastic spatter shield

SKU: MT119318

Replaceable plastic spatter shield for laser diode. Dimensions: 20 x 13 x 1.5 mm (0.7 x 0.5 x 0.048") Approximate weight: 0.5 g (0.015 oz) Material: Polycarbonate
from $40.00

Accessories

Accessories: Laser diode spot assembly

Laser diode plastic spatter shield
Laser diode plastic spatter shield

SKU: MT119318

Replaceable plastic spatter shield for laser diode. Dimensions: 20 x 13 x 1.5 mm (0.7 x 0.5 x 0.048") Approximate weight: 0.5 g (0.015 oz) Material: Polycarbonate
from $40.00
