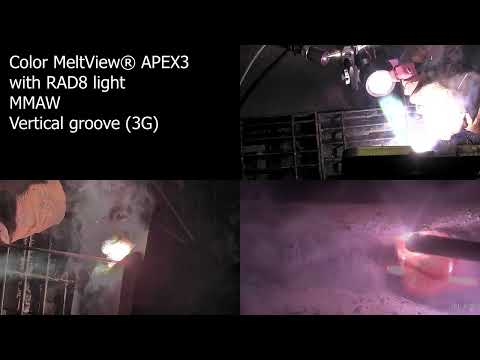

This video demonstrates a vertical-up steel groove joint using manual metal arc welding (MMAW), performed by Mikey from Weld United. Mikey successfully completed the root and second heat passes and is currently working on the fill pass. By recording the entire welding process, instructors can effectively show students proper welding techniques and solutions to challenges that can arise during welding, proving highly beneficial for skill development.
The video footage for this analysis was captured using multiple MeltTools products, including the MeltView® APEX3 camera for welding education, the RAD8 illumination system, and two PROWatch cameras for overview imaging.
MeltTools Products Utilized:
- MeltView® APEX3 Camera: This lightweight, direct-display camera is specifically designed for welding education, offering real-time 1920x1080 imaging, recording, and streaming capabilities.
- RAD8 Illumination System: A high-powered, continuous LED system that pairs with MeltView® and high-speed cameras. It provides crisp, clear images of the weld puddle without the need for Class IV lasers, and its built-in cooling system allows for continuous use.
- PROWatch Industrial Monitoring Camera: A small, ruggedized in-process inspection camera ideal for monitoring industrial processes. The camera does not need software or a computer to use it, making it perfect for close-up monitoring, alignment tasks, and wide-angle cell monitoring in various industrial settings due to its compact size and ease of use.
