Description

OUR FLAGSHIP CAMERA IS NO LONGER FOR SALE, BUT REPLACEMENT PARTS ARE STILL AVAILABLE.  If you would like to purchase a camera, please see our current range of weld monitoring cameras.

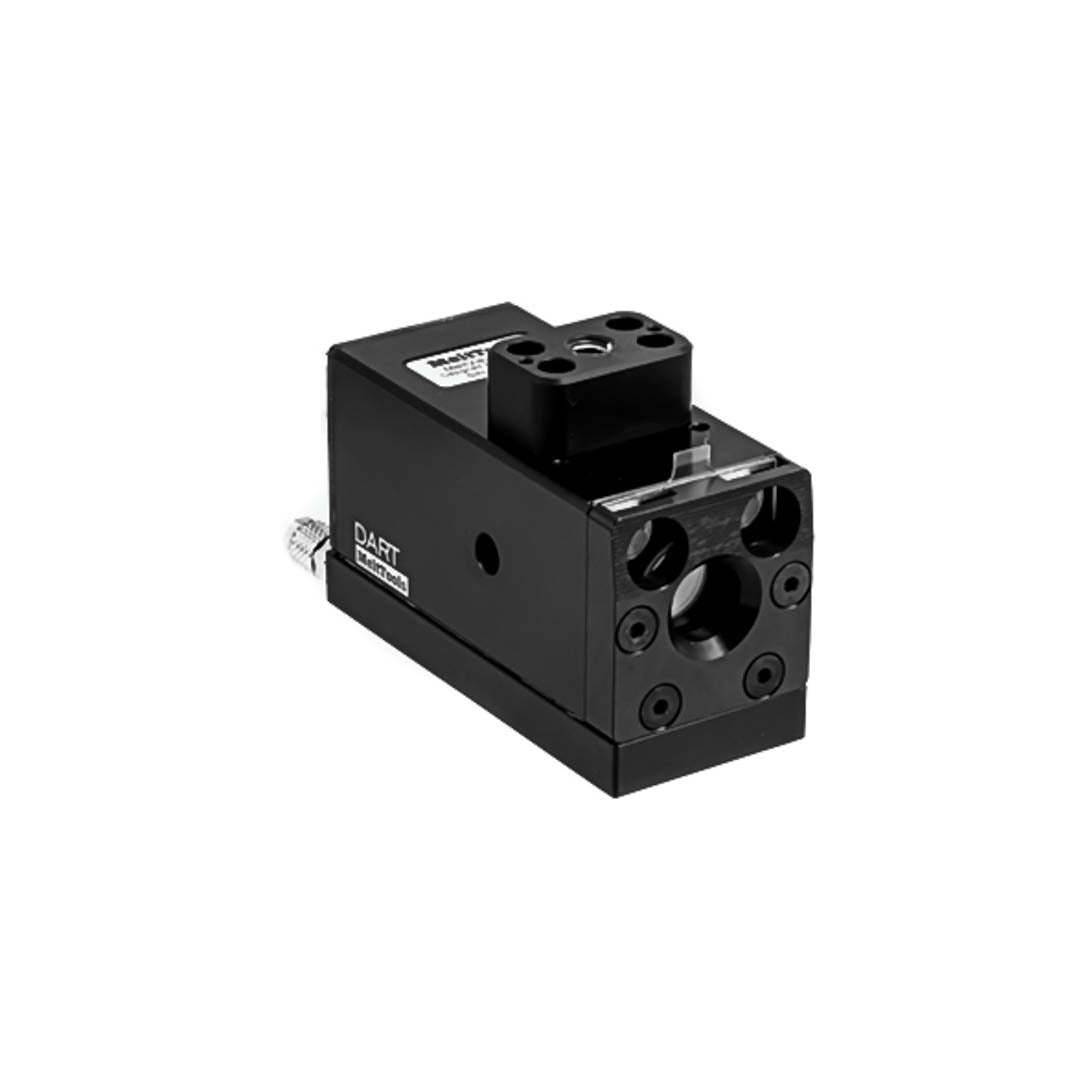

The MeltView® DART welding camera is a robust industrial weld monitoring solution regarded for its image quality, simple operation and value. The MeltView® DART is employed to monitor arc welding applications at working distances between 4″ and 20″ (100-500 mm) at temperatures up to 250°C (482°F).

  • Our flagship camera introduced in 2011
  • High-quality image
  • Automatic switching between arc-on and arc-off modes
  • Camera displays directly to monitor, no computer or software
  • Integrated protection and lighting
  • Small size
  • Proven reliability

MeltView® DART replacement parts listed below

Specifications

Power
12 VDC
Video output signal
PAL/NTSC
1920 x 1080
Illumination
Integrated LED
Operating environment
85% relative humidity
Temperature rating with combined cooling
0° - 250°C (32° - 482°F)
Temperature rating with gas purge
0° - 100°C (32° - 212°F)
Temperature rating with water cooling
0° - 175°C (32° - 347°F)
Weight
280 g (0.6 lbs)
Dimensions
40 x 40 x 133.8 mm (1.6 x 1.6 x 5.3")
Consumption
4 W (Max.)
Temperature rating without cooling
0° - 35°C (32° - 95°F)

Video Resources

 K-TIG | 3/8" (9.5mm) 304 Stainless Steel Pipe - full pen, single pass, autogenous weld .

K-TIG | 3/8" (9.5mm) 304 Stainless Steel Pipe - full pen, single pass, autogenous weld .

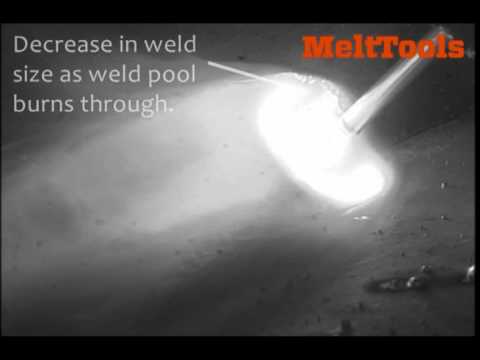

How to Detect Welding Defects with a Welding Camera

How to Detect Welding Defects with a Welding Camera

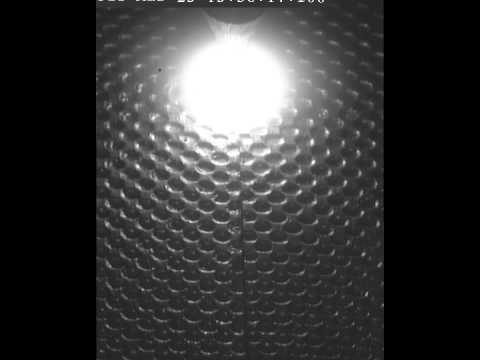

GTAW TIG MeltView® DART

GTAW TIG MeltView® DART

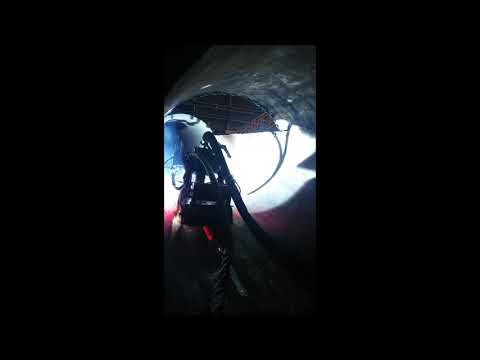

MeltView® DART and Uniarc Tractor for internal repair of pipe

MeltView® DART and Uniarc Tractor for internal repair of pipe

Spare Parts

MeltView® DART2 Replacement Parts

DART2 spatter shield
DART2 spatter shield

SKU: MT319318

Glass spatter shield for the DART2 welding camera. Resistant to high temperatures Cleanable but weld spatter may adhere Dimensions: 38 x 23 x 2 mm (1.5 x 0.09 x 0.06") Ap... View product
from $60.00
Phenolic isolation HF mount 1/4"-20 UNC female
Welding cameras must be isolated from welding equipment. Our MeltView® DART, DART2 and HT25 camera isolation block mates with our free arm camera mounts. We recommend regu... View product
$30.00
MeltView 24V international power supply
MeltView 24V international power supply

SKU: MT166045

Plug-in power supply with world wide connectors, 2 m (6.6') cord and straight M12-A female socket. Used with our compact, advanced and DAQ camera controllers as well as th... View product
$50.00
DART2 sealant glass
DART2 sealant glass

SKU: MT319219

Sealant glass for the MeltView® DART2 and DART2 Mini cameras. Dimensions: 34 x 28 x 1 mm (1.3 x 1.1 x 0.04") Approximate weight: 0.1 g (0.004 oz)
from $30.00

Accessories

Accessories: MeltView DART welding camera

DART spatter shield
DART spatter shield

SKU: MT219333

Glass spatter shield for the DART welding camera: Resistant to high temperature Dimensions: 36 x 35 x 1 mm (1.4 x 1.3 x 0.05") Approximate weight: 2 g (0.06 oz) Polycarb... View product
from $60.00
Phenolic isolation HF mount 1/4"-20 UNC female
Welding cameras must be isolated from welding equipment. Our MeltView® DART, DART2 and HT25 camera isolation block mates with our free arm camera mounts. We recommend regu... View product
$30.00
DART sealant glass
DART sealant glass

SKU: MT219291

Sealant glass for DART camera. Dimensions: 37 x 32 x 1 mm (1.4 x 1.2 x 0.04") Approximate weight: 1.4 g (0.05 oz)
from $30.00
DART front gasket
DART front gasket

SKU: MT219666

Paper replacement front gasket for DART camera. Dimensions: 36 x 31 mm (1.4 x 1.2")
from $20.00
DART front cover
DART front cover

SKU: MT219742

Front cover for MeltView® DART welding camera. Dimensions: 40 x 40 x 8 mm (1.5 x 1.5 x 0.3") Approximate weight: 20 g (0.6 oz)
$58.00
DART cooling block assembly
DART cooling block assembly

SKU: MT219440

Replacement or add-on water cooling block for DART camera. Cooling block assembly includes barbs and thermal paste. Select short, medium or long cooling block to match DA... View product
$370.00
DART LED module
DART LED module

SKU: MT214017

Replacement LED emitter board for DART camera.  Red LED for monochrome camera White LED for color camera
$84.00
