DART cooling block assembly

DART welding camera

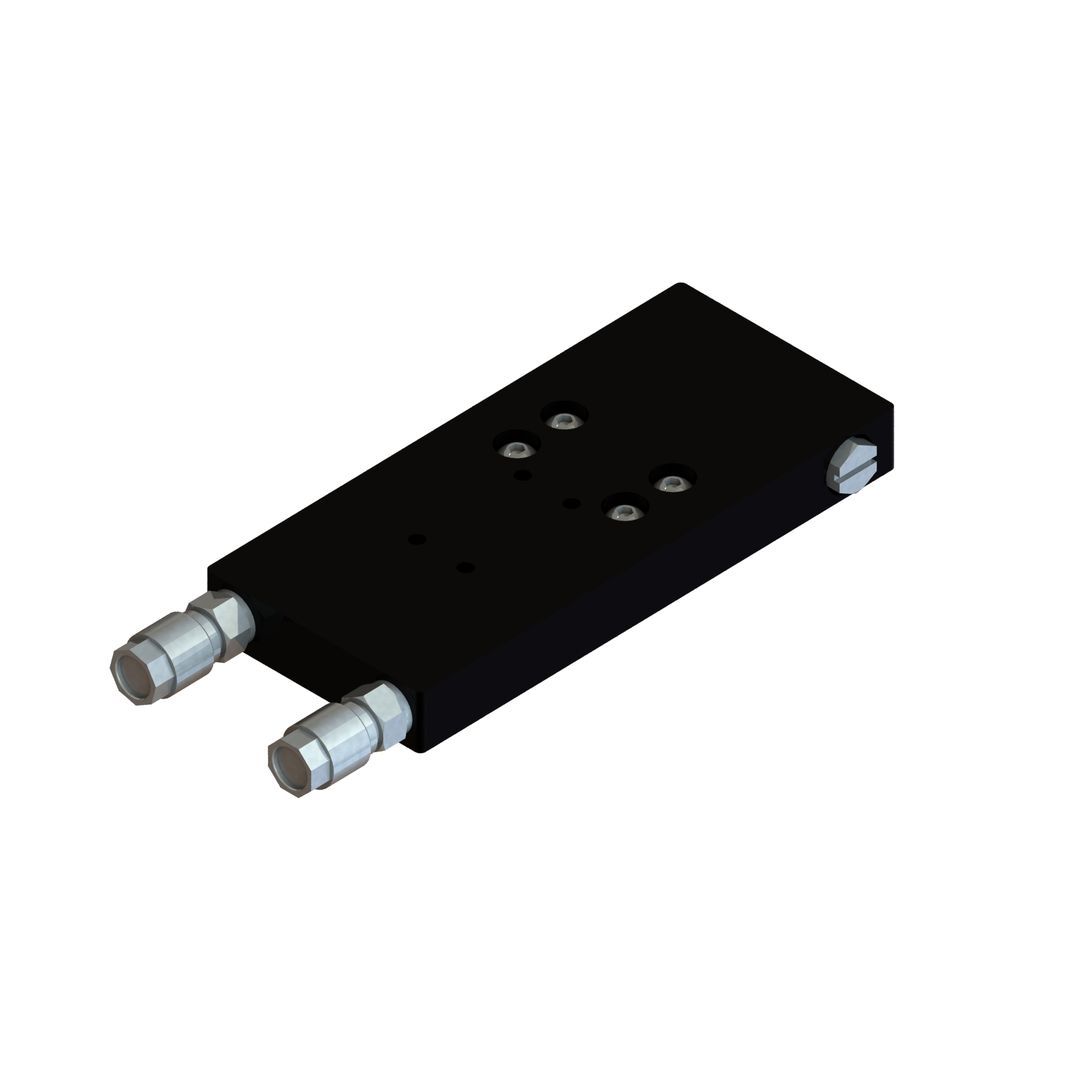

  • Cooling block for DART welding camera
1 1
Click here to view all variant options.
Size
Price $370.00
Price $370.00
Sale Sold out
calculated at checkout.
SKU:  MT219440
Part Number:  D1CBAS
View full details

Description

Replacement or add-on water cooling block for DART camera. Cooling block assembly includes barbs and thermal paste.

  • Select short, medium or long cooling block to match DART camera body
  • Select water/air for use with aluminum safe coolant or vortec chilled air
  • Select air only for optimal air cooling (only available in medium length)
  • Barbs fit 6/4 mm OD/ID tubing
  • Tubing available
  • Alternative barbs available

Short:

  • Dimensions: 75 x 40 x 10 mm (3 x 1.5 x 0.4")
  • Weight: 70 g (2.6 oz)

Medium:

  • Dimensions: 90 x 40 x10 mm (3.5 x 1.5 x 0.4")
  • Weight: 90 g (3 oz)

Long:

  • Dimensions: 105 x 40 x 10 mm (4.1 x 1.5 x 0.4")
  • Weight: 110 g (3.8 oz)

Accessories

Accessories: DART cooling block assembly

DART spatter shield
DART spatter shield

SKU: MT219333

Glass spatter shield for the DART welding camera: Resistant to high temperature Dimensions: 36 x 35 x 1 mm (1.4 x 1.3 x 0.05") Approximate weight: 2 g (0.06 oz) Polycarb... View product
from $60.00
Phenolic isolation HF mount 1/4"-20 UNC female
Phenolic isolation HF mount 1/4"-20 UNC female

SKU: MT159577

Welding cameras must be isolated from welding equipment. Our MeltView® DART, DART2 and HT25 camera isolation block mates with our free arm camera mounts. We recommend regu... View product
$30.00
DART front gasket
DART front gasket

SKU: MT219666

Paper replacement front gasket for DART camera. Dimensions: 36 x 31 mm (1.4 x 1.2")
from $20.00
DART sealant glass
DART sealant glass

SKU: MT219291

Sealant glass for DART camera. Dimensions: 37 x 32 x 1 mm (1.4 x 1.2 x 0.04") Approximate weight: 1.4 g (0.05 oz)
from $30.00
DART LED module
DART LED module

SKU: MT214017

Replacement LED emitter board for DART camera.  Red LED for monochrome camera White LED for color camera
$84.00
DART front cover
DART front cover

SKU: MT219742

Front cover for MeltView® DART welding camera. Dimensions: 40 x 40 x 8 mm (1.5 x 1.5 x 0.3") Approximate weight: 20 g (0.6 oz)
$58.00

Compatible Products

Compatible with: DART cooling block assembly

Cameras compatible with the DART cooling block assembly.

MeltView DART welding camera
MeltView DART welding camera

SKU: MT219989

OUR FLAGSHIP CAMERA IS NO LONGER FOR SALE, BUT REPLACEMENT PARTS ARE STILL AVAILABLE.  If you would like to purchase a camera, please see our current range of weld monitor... View product
$0.00
