MIG Welding

Custom Camera Solution

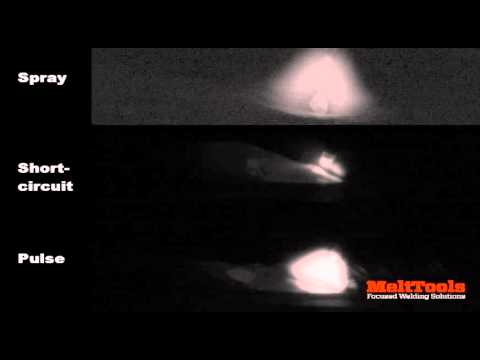

MIG welding transfer modes

Comparison of MIG welding transfer mode. Video captured at 1000 frames per second using the MeltView® SYNC, a camera used for troubleshooting and process development.

The MeltView® SYNC camera is a customized camera solution, unique in the market as it is small yet with a fast enough frame rate (up to 1300 frames per second) to observe process detail.
