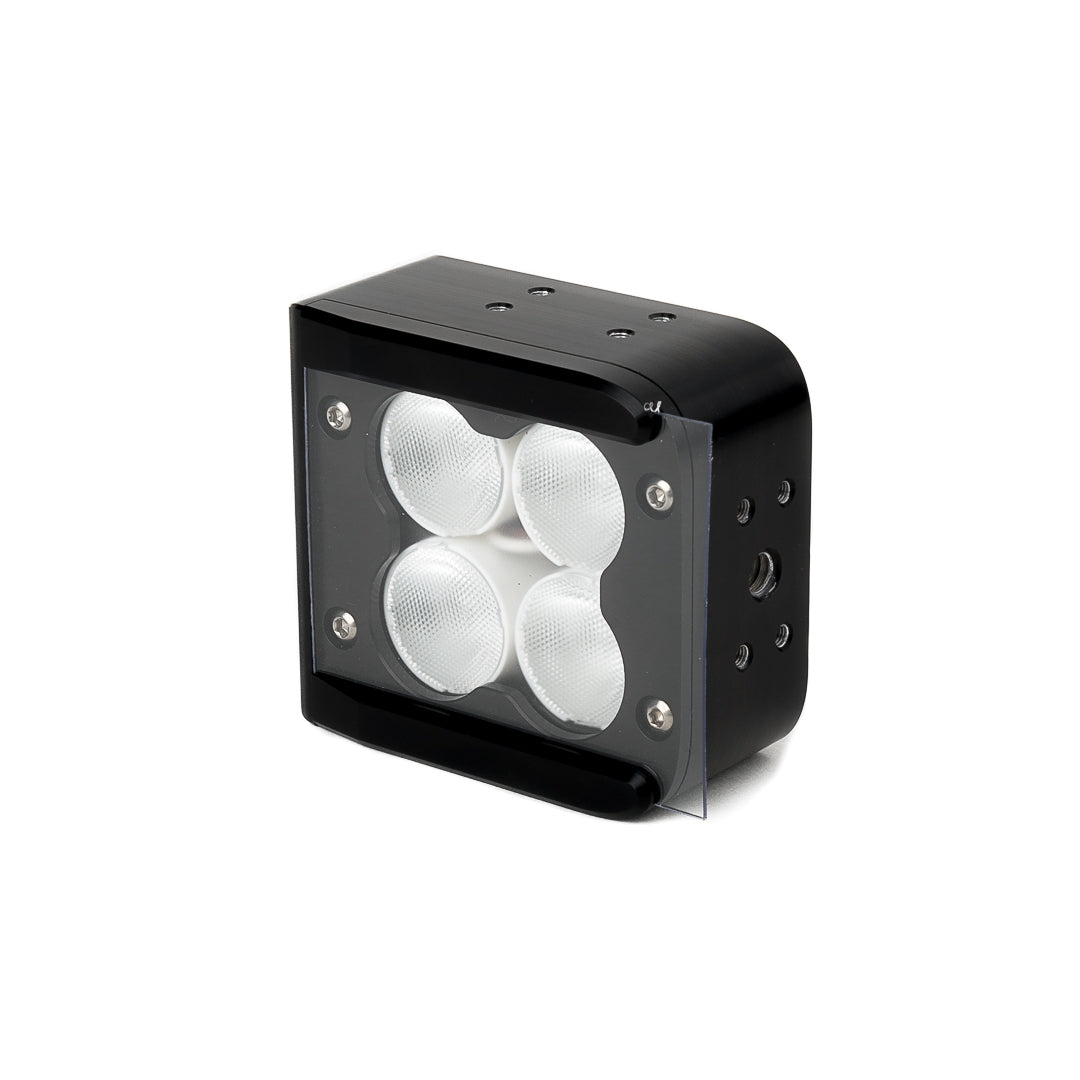

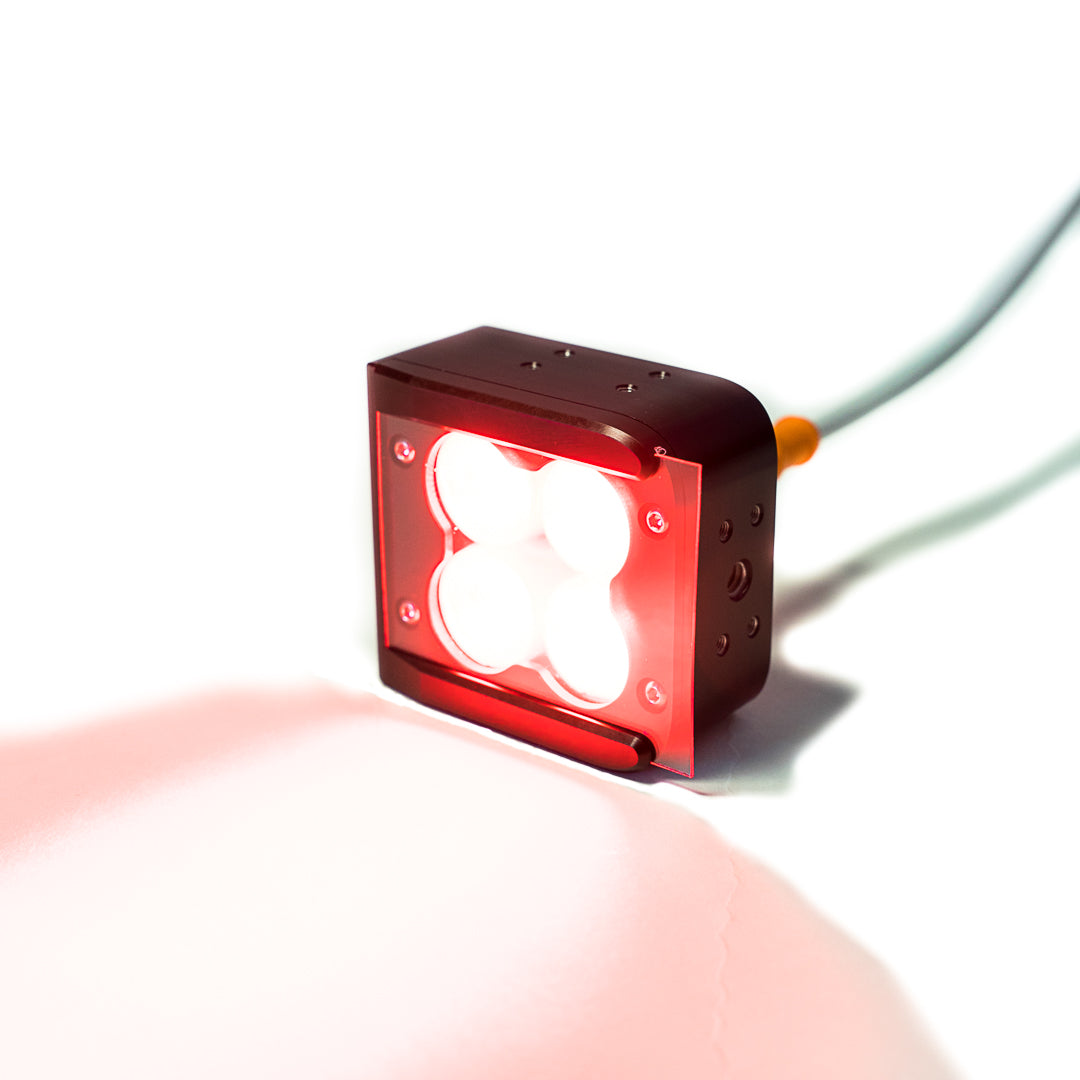

LED brick light with protection and dimmer for PXCC8

For the APEX3 camera kit

  • Optics



Our LED brick light provides a clear image when welding is off. The brick light is primarily used in conjunction with cameras that don't have integrated LEDs and may also be used to provide additional lighting.

  • Adjustable brightness for different camera angles and materials of different reflectivity
  • White LED for color welding cameras
  • Red LED for monochrome welding cameras
  • Extension power cables available
  • Powered off PXCC8


Temperature rating

0°C - 60°C (32 -140°F)

Operating Environment

85% RH. Max, non-condensing

LED wavelength

457, 528, 624, 663, 734, WHI

Angle of illumination

8 or 24°


10 W max


60 x 88 x 32mm (2.3 x 3.5 x 1.3")


280g (0.61lbs ) robust aluminum housing
